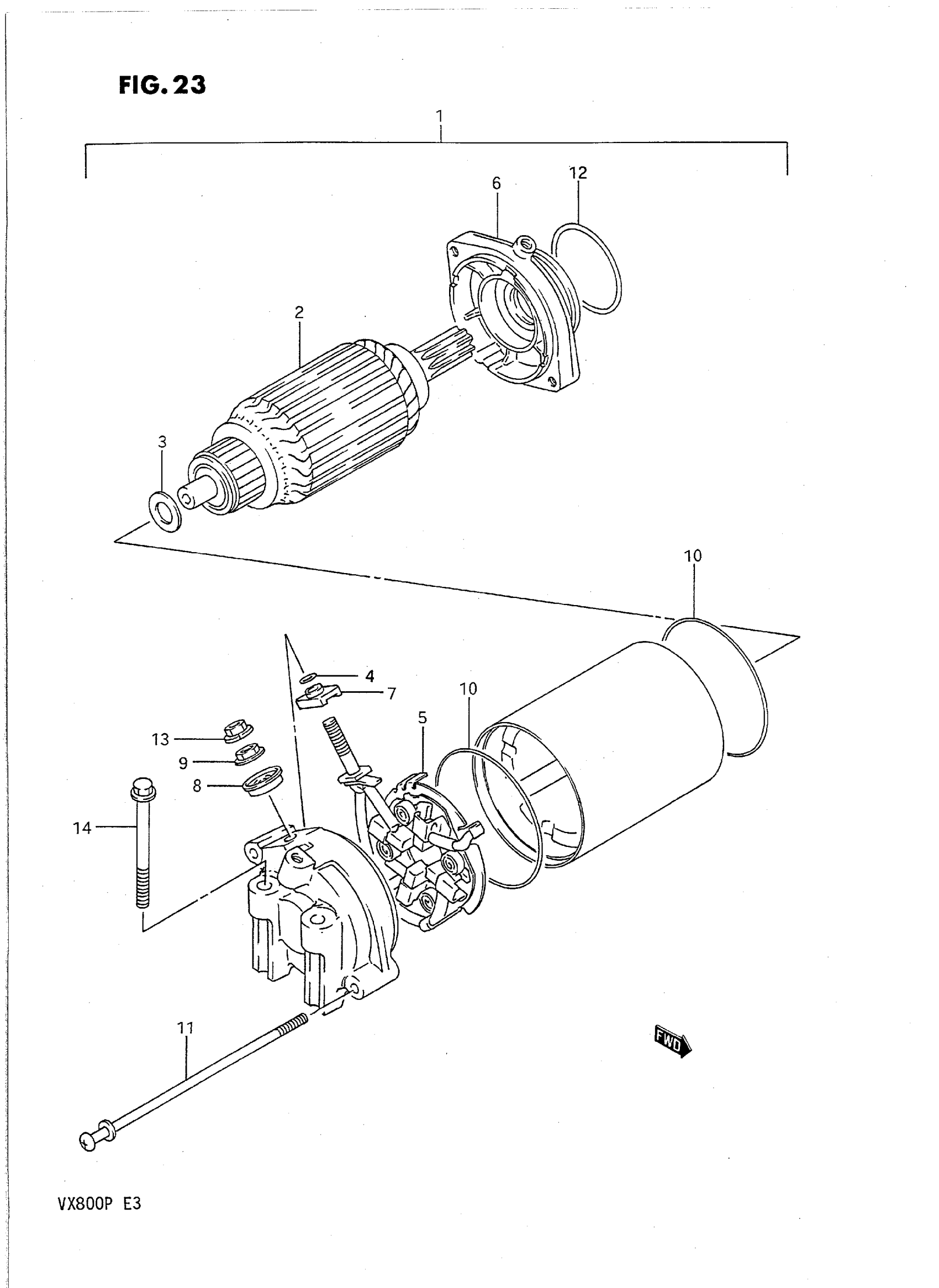

Suzuki VX800P (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 12 This part replaces 31100-45C00.

31100-45C02

$565.07

2

ARMATURE

31310-45C00

Unavailable

3

.SHIM SET This part replaces 31361-47010.

31170-43400

Unavailable

4

O RING

31143-38300

$5.10

5

BRUSH HOLDER SET (-)

31132-45C00

$71.38

6

BRACKET SET

31150-38A00

Unavailable

7

BUSHING

31172-38300

$6.55

8

BUSHING

31173-88C00

Unavailable

9

.NUT | MODEL L/M/N This part replaces 08310-32068.

08310-00067

$2.13

9

.NUT | MODEL P This part replaces 08310-22067.

08310-00067

$2.13

10

O RING

31264-44110

$11.87

11

BOLT This part replaces 31281-38A00.

31281-31D00

$8.65

12

O RING

31156-38A00

$12.47

13

NUT This part replaces 08361-35066.

08361-3506A

$1.80

14

BOLT

01547-06607

$3.18
