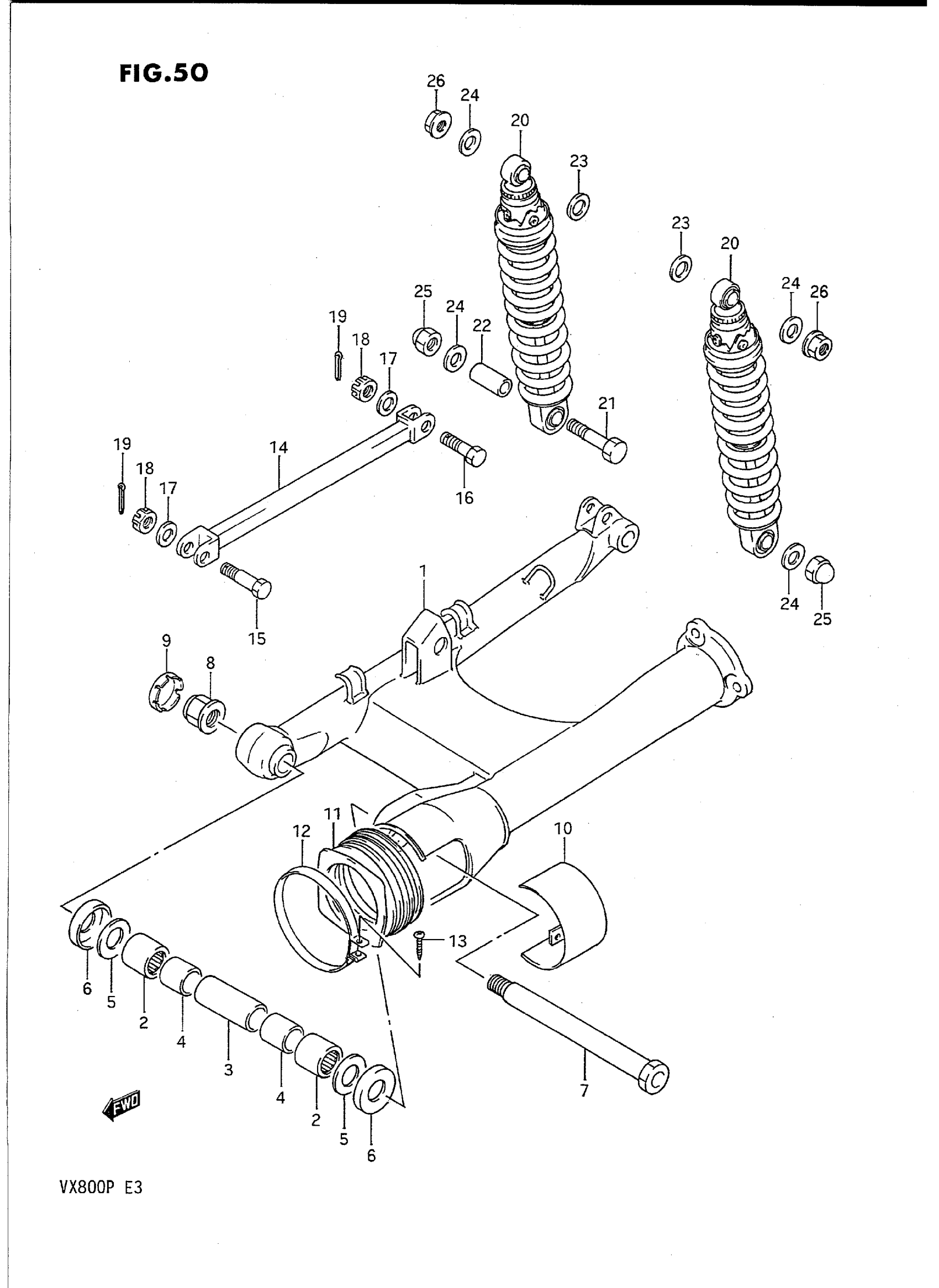

Suzuki VX800P (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 61100-45C03-13L.

61100-45C04-0FP

Unavailable

1

SWINGING ARM, REAR (SILVER) | MODEL M/N/P

61100-45C03-23W

Unavailable

2

BEARING

09263-25024

$25.92

3

SPACER, PIVOT CENTER

61282-45C01

Unavailable

4

SPACER, PIVOT

61251-17C00

$43.37

5

WASHER

08211-20381

$4.10

6

COVER,RR SWGARM This part replaces 61262-10D00.

61262-10D01

Unavailable

7

SHAFT, PIVOT

61211-45C01

Unavailable

8

NUT This part replaces 08319-31188.

08319-3118A

$24.48

9

CAP, PIVOT RH

61222-48B00

$6.80

10

COVER, PIVOT LH (SILVER) | MODEL L

61232-38A00-13L

Unavailable

10

COVER, PIVOT LH (SILVER) | MODEL M/N/P

61232-38A00-23W

Unavailable

11

BOOT, PROPELLER SHAFT

61372-38A00

$27.97

12

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

13

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

14

TORQUE LINK REAR (BLACK) | MODEL L This part replaces 64310-45C00-13L.

64310-45C00-019

Unavailable

14

TORQUE LINK REAR (BLACK) | MODEL M/N This part replaces 64310-45C00-23W.

64310-45C00-019

Unavailable

14

TORQIELINK, REAR (BLACK) | MODEL P

64310-45C00-019

Unavailable

15

BOLT, FRONT

09111-10016

Unavailable

16

BOLT, REAR

09101-10036

$5.28

17

WASHER This part replaces 09160-10069.

09160-10005

$1.87

18

NUT This part replaces 08314-41108.

08314-4010B

$2.50

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

20

ABSORBER ASSY, REAR SHOCK

62100-45C20

Unavailable

21

BOLT, LOWER RH

09100-10247

$2.98

22

SPACER, LOWER RH (10.2X14X20.7) This part replaces 09180-10104.

09180-10139

$3.99

23

WASHER This part replaces 08322-11148.

08322-01147

$1.91

24

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

25

NUT This part replaces 08313-11107.

08313-10107

$2.50

26

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
