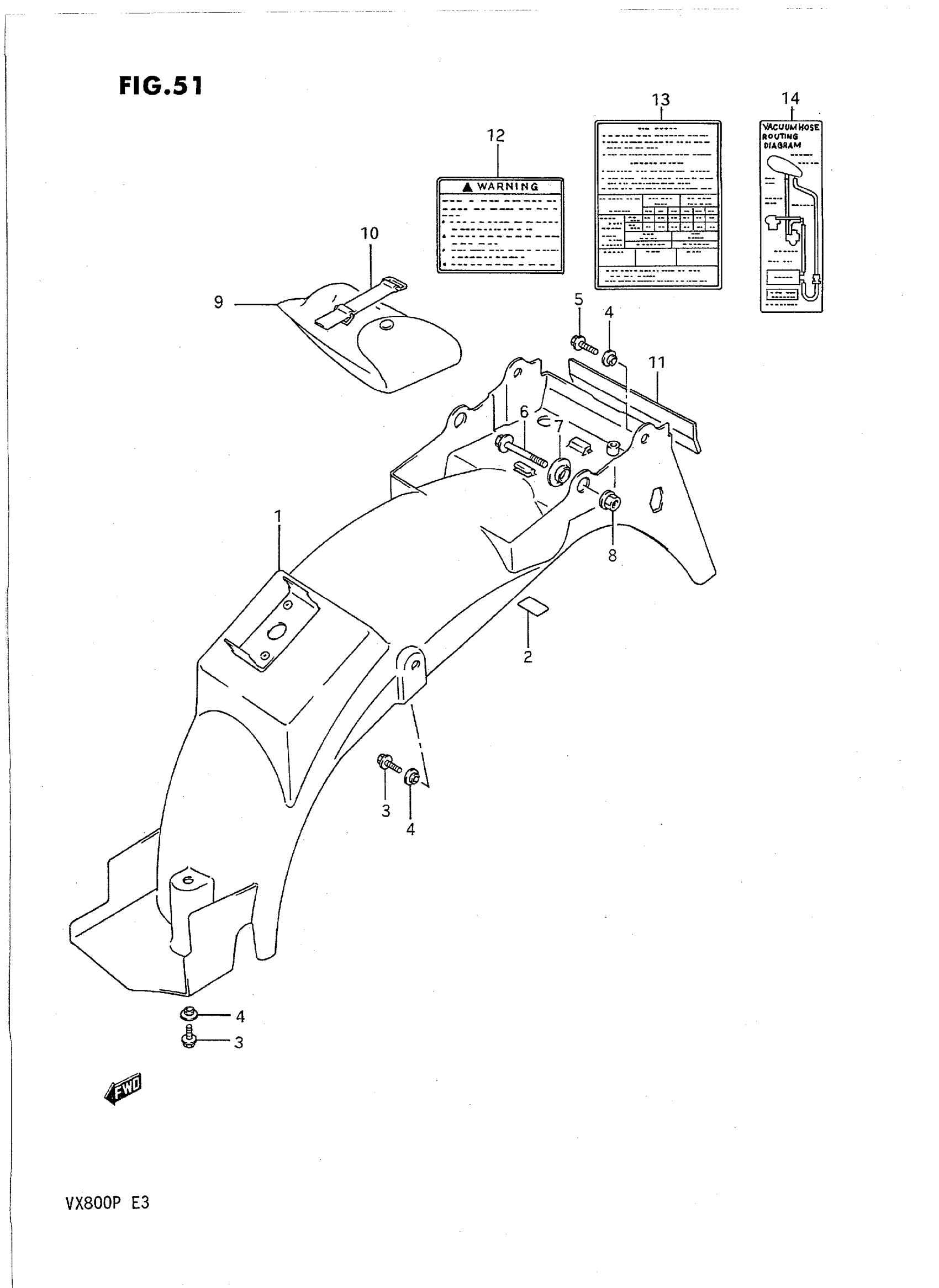

Suzuki VX800P (1993) REAR FENDER - LABEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63110-45C20.

63110-45C21

Unavailable

2

TAPE, REAR FENDER

63115-06C00

Unavailable

3

BOLT, CLAMP | MODEL L This part replaces 01517-06125.

01550-0612A

$1.97

3

BOLT | MODEL M/N/P This part replaces 01517-06128.

01550-06127

$2.30

4

WASHER

09169-06037

$2.45

5

BOLT | MODEL L This part replaces 01517-06164.

01550-0616A

$1.97

5

BOLT | MODEL M/N/P This part replaces 01517-06167.

01550-06167

$2.30

6

.BOLT | MODEL L This part replaces 01517-08555.

01550-0855A

$3.05

6

BOLT | MODEL M/N/P This part replaces 01517-08558.

01550-08557

$3.74

7

WASHER

09169-08045

$2.23

8

NUT | MODEL L This part replaces 08316-16085.

08316-1008B

$2.66

8

NUT (CHROME) | MODEL M/N/P This part replaces 08316-16088.

08316-10087

$2.26

9

TOOL ASSY This part replaces 09800-20033.

09800-21015

Unavailable

10

BAND This part replaces 09462-00072.

09462-00094

$3.16

11

CUSHION, FENDER

63118-45C00

Unavailable

12

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

13

LABEL, TIRE AIR PRESSURE

68332-45C31

Unavailable

14

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-45C10

Unavailable
