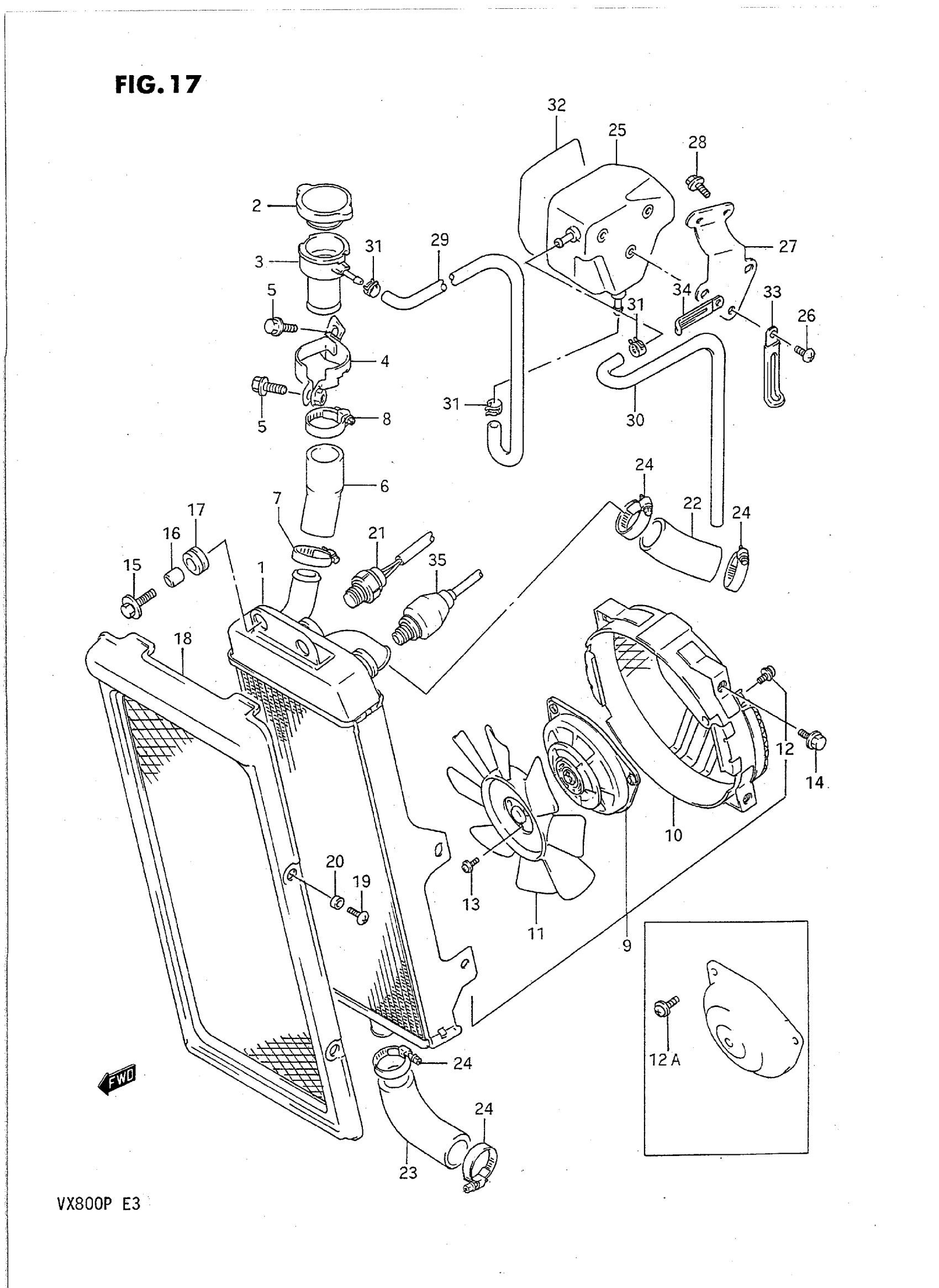

Suzuki VX800P (1993) RADIATOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 17710-45C00.

17710-45C10

Unavailable

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

3

CONDUCTION, RADIATOR

17791-45C00

Unavailable

4

BRACKET, CONDUCTION

17793-45C00

Unavailable

5

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

6

HOSE, CONDUCTION

17859-45C00

Unavailable

7

CLAMP This part replaces 09402-30502.

09402-32511

$10.86

8

CLAMP

09402-32502

Unavailable

9

FAN ASSY | MODEL L/M This part replaces 17800-45C00.

17800-45C01

Unavailable

9

FAN ASSY | MODEL N/P; Includes Item(s) 10 - 13

17800-45C01

Unavailable

10

SHROUD | MODEL L/M This part replaces 17760-45C00.

17760-45C01

Unavailable

10

SHROUD | MODEL N/P

17760-45C01

Unavailable

11

FAN

17820-45C00

Unavailable

12

SCREW | MODEL L/M

02112-75105

Unavailable

12A

SCREW | MODEL N/P

17801-45C00

Unavailable

13

SCREW This part replaces 17801-05A00.

02112-0406B

$1.55

14

BOLT This part replaces 01517-06108.

01550-06107

$2.80

15

BOLT (6X25)

09116-06131

$2.36

16

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

17

CUSHION

09320-10015

$2.54

18

COVER, RADIATOR

17761-45C00

Unavailable

19

SCREW (6X10) | MODEL L

09139-06078

$2.79

19

SCREW (6X10) | MODEL M/N

09139-06055

$1.49

19

SCREW | MODEL P

02142-06108

$2.45

20

SPACER (6.4X9X3.5)

09180-06102

Unavailable

21

SWITCH, RADIATOR FAN

17680-45C00

Unavailable

22

HOSE, RADIATOR IN

17851-45C00

Unavailable

23

HOSE, RADIATOR OUT

17852-45C00

Unavailable

24

CLAMP This part replaces 09402-30502.

09402-32511

$10.86

25

NO DESCRIPTION AVAILABLE This part replaces 17911-45C00.

17911-45C10

Unavailable

26

SCREW This part replaces 02142-06086.

02142-0608A

$1.49

27

BRACKET, RESERVOIR TANK

17920-45C00

Unavailable

28

BOLT This part replaces 01517-06204.

01550-0620A

$1.97

29

HOSE, TANK IN

17981-45C00

$14.34

30

HOSE, RESERVOIR TANK INLET This part replaces 17982-45C00.

17981-21810

$42.85

31

CLIP | MODEL L This part replaces 09401-08407.

09401-08411

$1.78

31

CLIP | MODEL M/N/P This part replaces 09401-08405.

09401-08411

$1.78

32

EMBLEM, RESERVIOR TANK

17930-45C00

Unavailable

33

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

34

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

35

SWITCH, WATER TEMPERATURE

34850-03D00

$119.72
