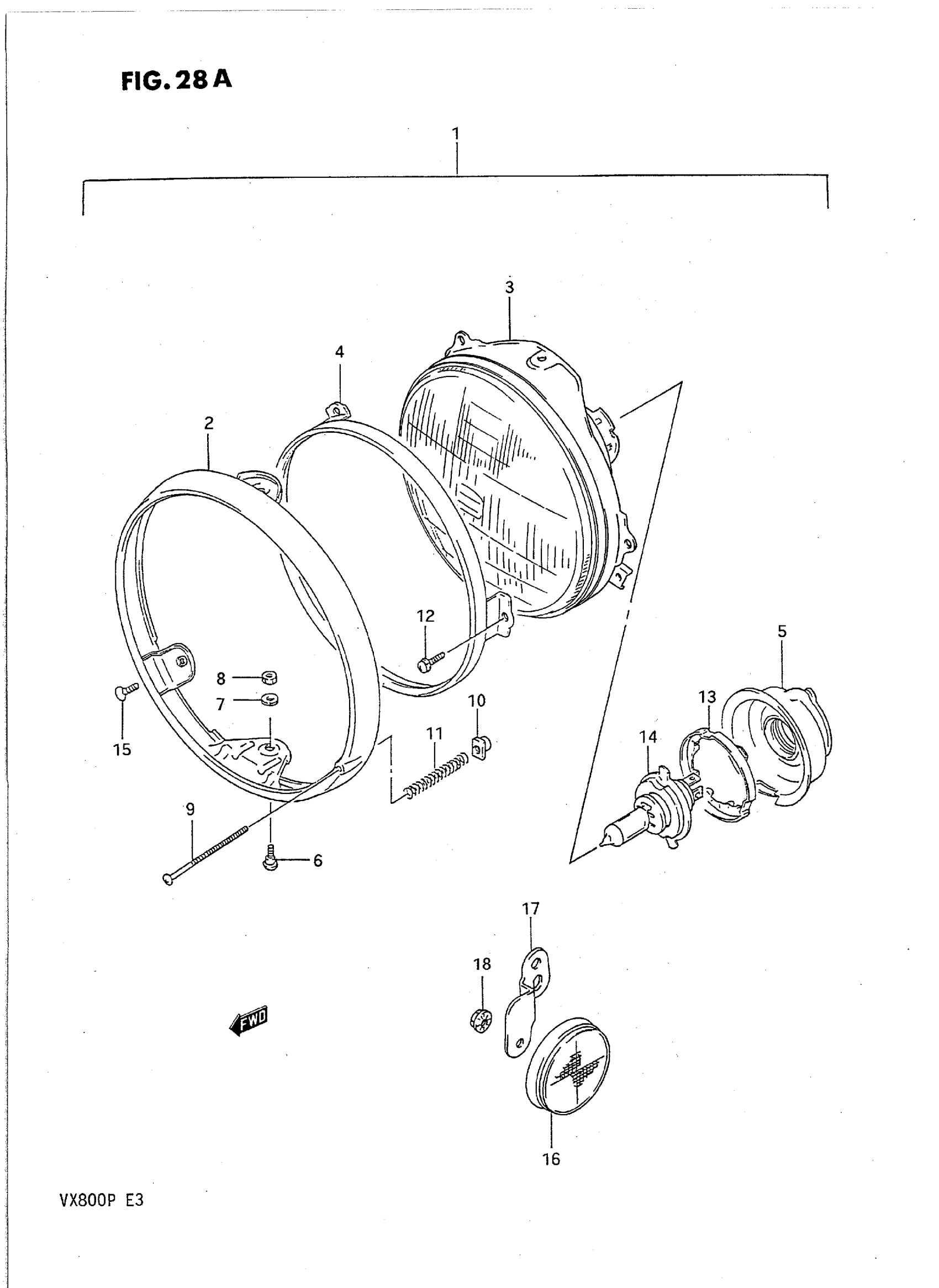

Suzuki VX800P (1993) HEADLAMP (MODEL P) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13 This part replaces 35100-10D30-999.

35100-10D70-999

$271.07

2

RIM

35111-01D20

$72.93

3

LAMP UNIT

35121-10D30

Unavailable

4

RING

35127-45030

Unavailable

5

COVER, SOCKET This part replaces 35118-01D20.

35173-20A01

$18.02

6

SCREW

35181-15611

$3.37

7

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

8

NUT This part replaces 08310-11056.

08310-0005A

$1.84

9

SCREW This part replaces 35151-45030.

35151-45900

$3.65

10

NUT

35152-15611

$3.25

11

SPRING

35154-31900

$5.32

12

SCREW This part replaces 02112-04106.

02112-0410A

$1.49

13

SETTER, BULB

35136-34400

Unavailable

14

BULB (12V,60/55W,H4)

09471-12060

$25.15

15

SCREW This part replaces 02132-05127.

02122-05127

$1.93

16

REFLECTOR, FRONT SIDE

35950-14A00

$16.94

17

BRACKET, RH

35956-45C01

Unavailable

17

BRACKET, LH

35957-45C01

Unavailable

18

NUT This part replaces 08316-26055.

08316-2005A

$2.19
