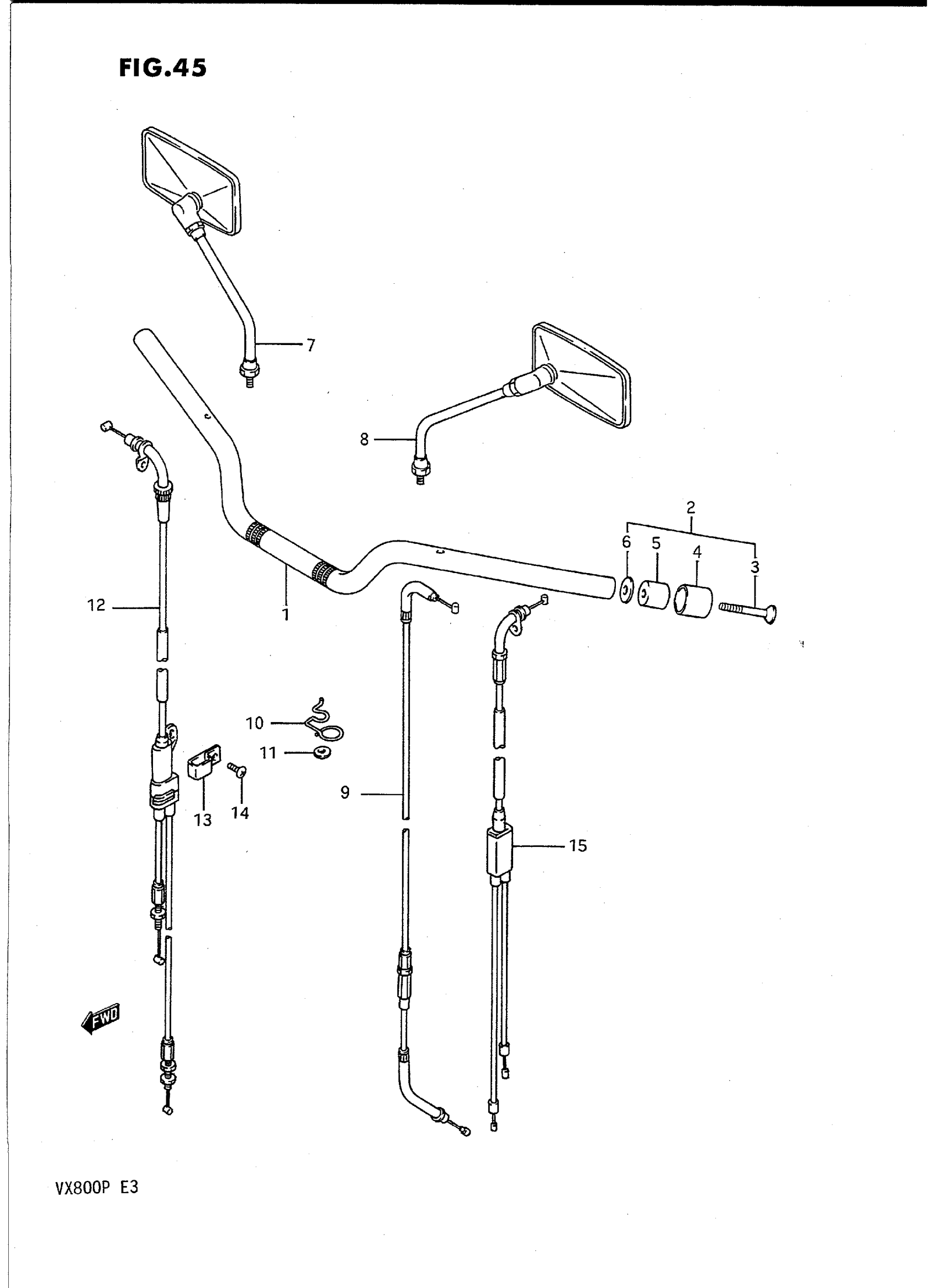

Suzuki VX800P (1993) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-45C00.

56110-45C01

Unavailable

2

BALANCER SET,HN | Includes Item(s) 3 - 6 This part replaces 56200-45810.

56200-48822

Unavailable

3

SCREW This part replaces 02132-06655.

02122-0665B

$2.76

4

CAP

56274-00A11

Unavailable

5

BALANCER

56271-00A00

Unavailable

6

SPACER This part replaces 56275-34400.

56275-34401

$4.02

7

MIRROR ASSY, REAR VIEW RH

56500-45C01

Unavailable

8

MIRROR ASSY, REAR VIEW LH

56600-45C01

Unavailable

9

CABLE ASSY, CLUTCH

58200-45C20

Unavailable

10

GUIDE, CABLE

58622-45C01

Unavailable

11

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

12

CABLE ASSY, THROTTLE

58300-45C20

Unavailable

13

CLAMP, CONNECTOR

58621-45C00

Unavailable

14

SCREW, THROTTLE CABLE This part replaces 02112-75128.

02112-75127

Unavailable

15

CABLE, STARTER This part replaces 58410-45C20.

58410-45C21

Unavailable
