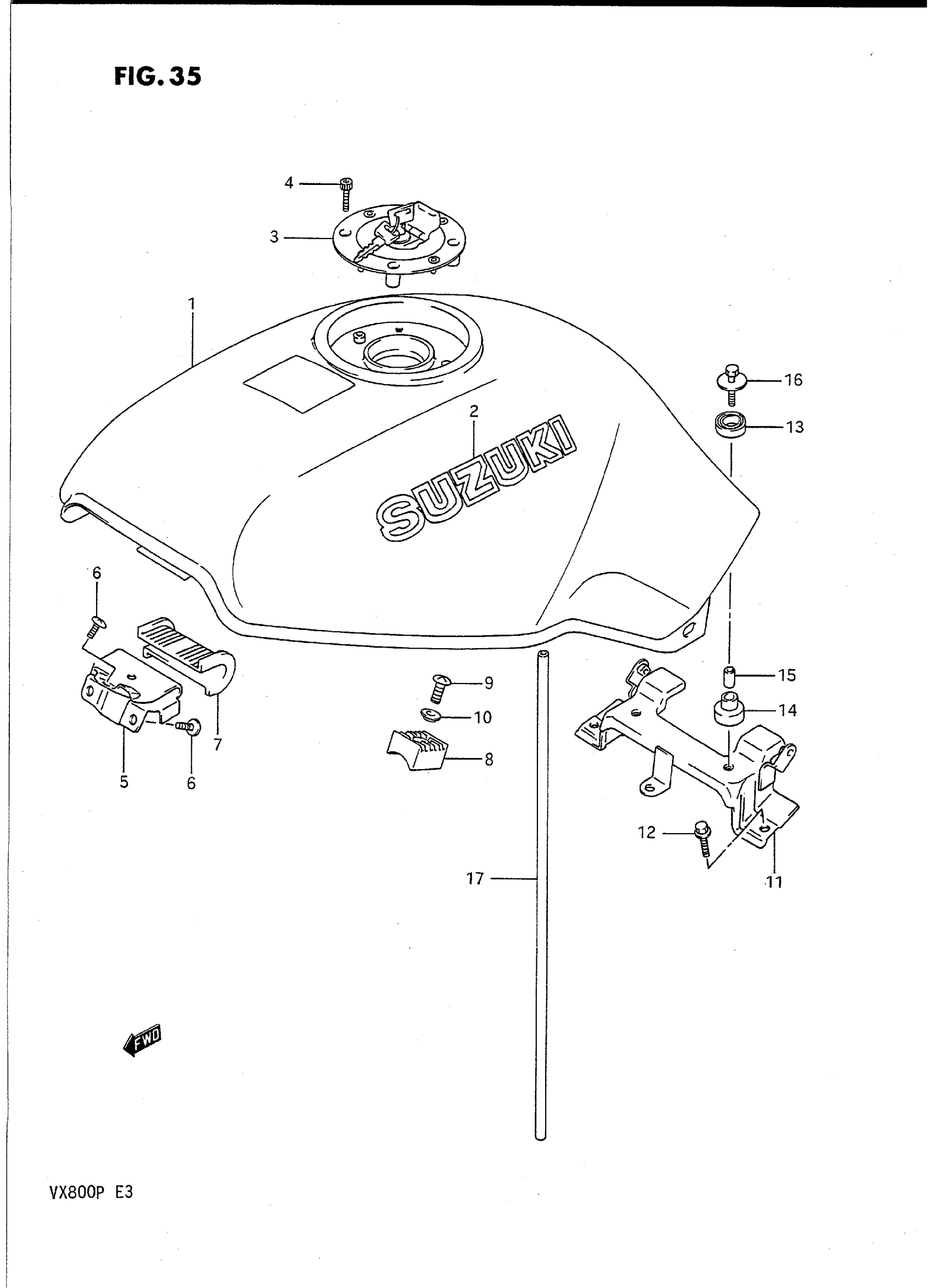

Suzuki VX800P (1993) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-45C00-24D.

44100-45C10-24D

Unavailable

1

TANK ASSY, FUEL (MAROON) | CALIFORNIA ONLY,MODEL L

44100-45C20-24D

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-45C00-24V.

44100-45C10-24V

Unavailable

1

TANK ASSY, FUEL (BLUE) | CALIFORNIA ONLY,MODEL L

44100-45C20-24V

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-45C00-0FP.

44100-45C10-33J

Unavailable

1

TANK ASSY, FUEL (SILVER) | CALIFORNIA ONLY,MODEL M

44100-45C20-0FP

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-45C00-19A.

44100-45C10-19A

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODLE M This part replaces 44100-45C20-19A.

44110-45C21-Y2D

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/P This part replaces 44100-45C00-33J.

44100-45C10-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL M/P This part replaces 44100-45C20-33J.

44110-45C21-Y2D

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-45C00-1HU.

44100-45C10-1HU

Unavailable

1

TANK ASSY, FUEL | MODEL P This part replaces 44100-45C00-22U.

44100-45C10-22U

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL N This part replaces 44100-45C20-1HU.

44110-45C21-Y2D

Unavailable

1

TANK ASSY, FUEL (MAROON) | CALIFORNIA ONLY,MODEL P; Includes Item(s) 2 - 2

44100-45C20-22U

Unavailable

2

EMBLEM,FUEL TAN | MODEL L/M/P This part replaces 68111-00A20-0SF.

68111-00A20-0RN

Unavailable

2

EMBLEM, FUEL TANK | MODEL N

68111-00A20-1GT

Unavailable

3

CAP SET,FUEL TA This part replaces 44201-01831.

44201-01833

Unavailable

3

CAP SET, FUEL | CALIFORNIA ONLY This part replaces 44201-01841.

44201-01842

Unavailable

4

BOLT

09106-05017

$2.83

5

BRACKET, FRONT

44521-45C00

Unavailable

6

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

7

CUSHION,FUEL TA This part replaces 44511-32C00.

44511-32C02

$15.78

8

CUSHION, SIDE | MODEL L/M This part replaces 44545-45C00.

44545-45C01

Unavailable

8

CUSHION, SIDE | MODEL N/P

44545-45C01

Unavailable

9

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

10

WASHER

09169-06036

Unavailable

11

BRACKET, REAR | MODEL L/M This part replaces 44530-45C01.

44530-45C02

Unavailable

11

BRACKET, REAR | MODEL N/P

44530-45C02

Unavailable

12

BOLT This part replaces 01517-06167.

01550-06167

$2.30

13

CUSHION, REAR UPPER

09320-14017

$2.35

14

CUSHION, REAR LOWER

09320-10038

$2.61

15

SPACER This part replaces 09180-06072.

09180-06271

$2.35

16

BOLT This part replaces 01517-06306.

01550-0630A

$2.32

17

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06
