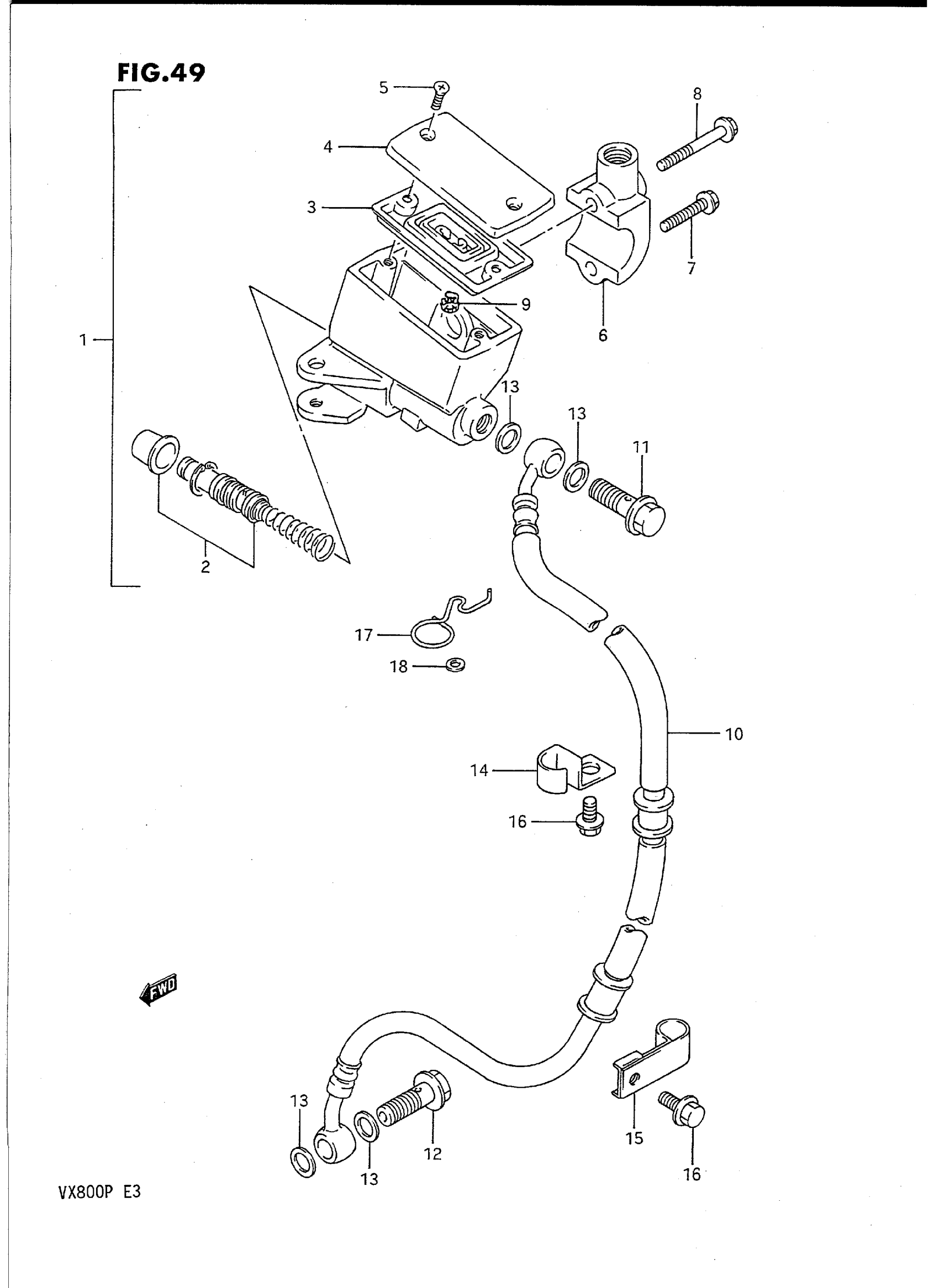

Suzuki VX800P (1993) FRONT MASTER CYLINDER (MODEL L/M/N) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | MODEL L

59600-45C00

Unavailable

1

CYLINDER ASSY, FRONT MASTER | MODEL M/N; Includes Item(s) 2 - 9

59600-45C20

Unavailable

2

PISTON/CUP SET | MODEL L This part replaces 59600-36820.

59600-04810

$45.20

2

PISTON/CUP SET | MODEL M/N

59600-04810

$45.20

3

DIAPHRAGM

59667-49460

$9.78

4

CAP | MODEL L This part replaces 59669-45C00.

59669-45C20

Unavailable

4

CAP | MODEL M/N This part replaces 59669-45C10.

59669-45C20

Unavailable

5

SCREW

69689-49300

$1.91

6

HOLDER | MODEL L This part replaces 59671-45C00.

59671-45C10

Unavailable

6

HOLDER | MODEL M/N

59671-45C10

Unavailable

7

BOLT HOLDER SET

59675-19C00

$4.02

8

BOLT, UPPER

59675-19C10

$4.82

9

PROTECTOR

59664-48B00

$11.02

10

HOSE, FRONT BRAKE

59480-45C00

Unavailable

11

BOLT

09360-10017

$3.42

12

UNION This part replaces 09360-10033.

09360-10062

$6.43

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

CLAMP, HOSE

59268-45C00

Unavailable

15

CLAMP, HOSE

59268-01D10

Unavailable

16

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

17

GUIDE, HOSE

59268-45C10

Unavailable

18

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
