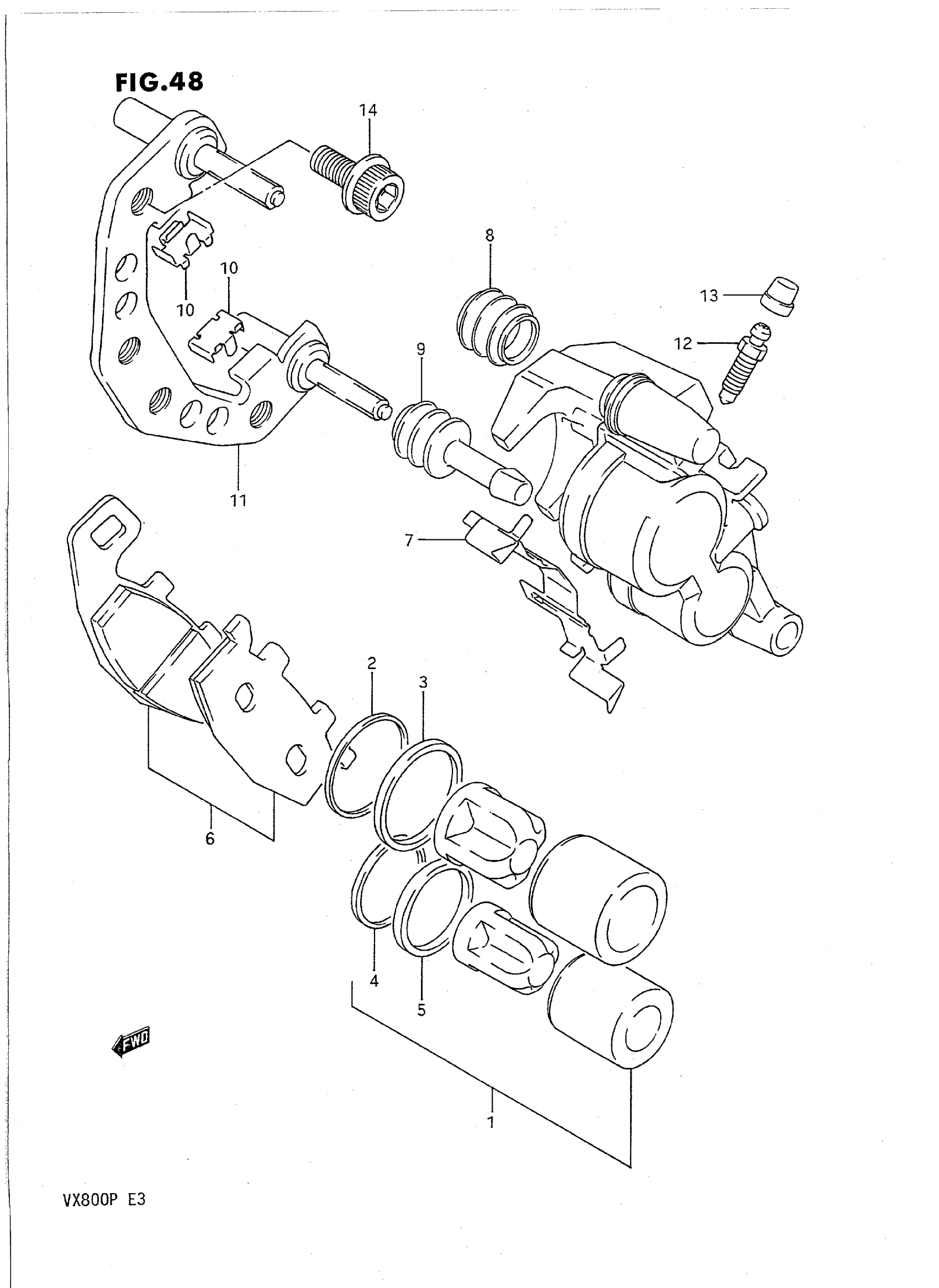

Suzuki VX800P (1993) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY,FR | MODEL L/M This part replaces 59300-45C00.

59300-45DV0-999

Unavailable

CALIPER ASSY, FRONT LH | MODEL N/P; Includes Item(s) 1 - 13

59300-45C10

Unavailable

1

PISTON SET This part replaces 59100-01830.

59100-01831

$73.72

2

SEAL,PISTON This part replaces 59107-39100.

59107-35F00

$11.80

3

DUST SEAL

59108-36A00

$11.07

4

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

$10.95

5

DUST SEAL

59108-04A00

$10.77

6

PAD SET | MODEL L/M

59301-45860

Unavailable

6

PAD SET | MODEL N/P

59302-45820

Unavailable

7

SPRING

59115-01D00

Unavailable

8

BOOT

59112-44B00

$8.91

9

INSULATOR, AXLE

59113-01D00

$10.17

10

GUIDE, PAD

59116-01D00

Unavailable

11

BRACKET

59150-01D00

Unavailable

12

BLEEDER

59121-18410

$8.73

13

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

14

BOLT This part replaces 07120-10258.

07120-10257

$4.77
