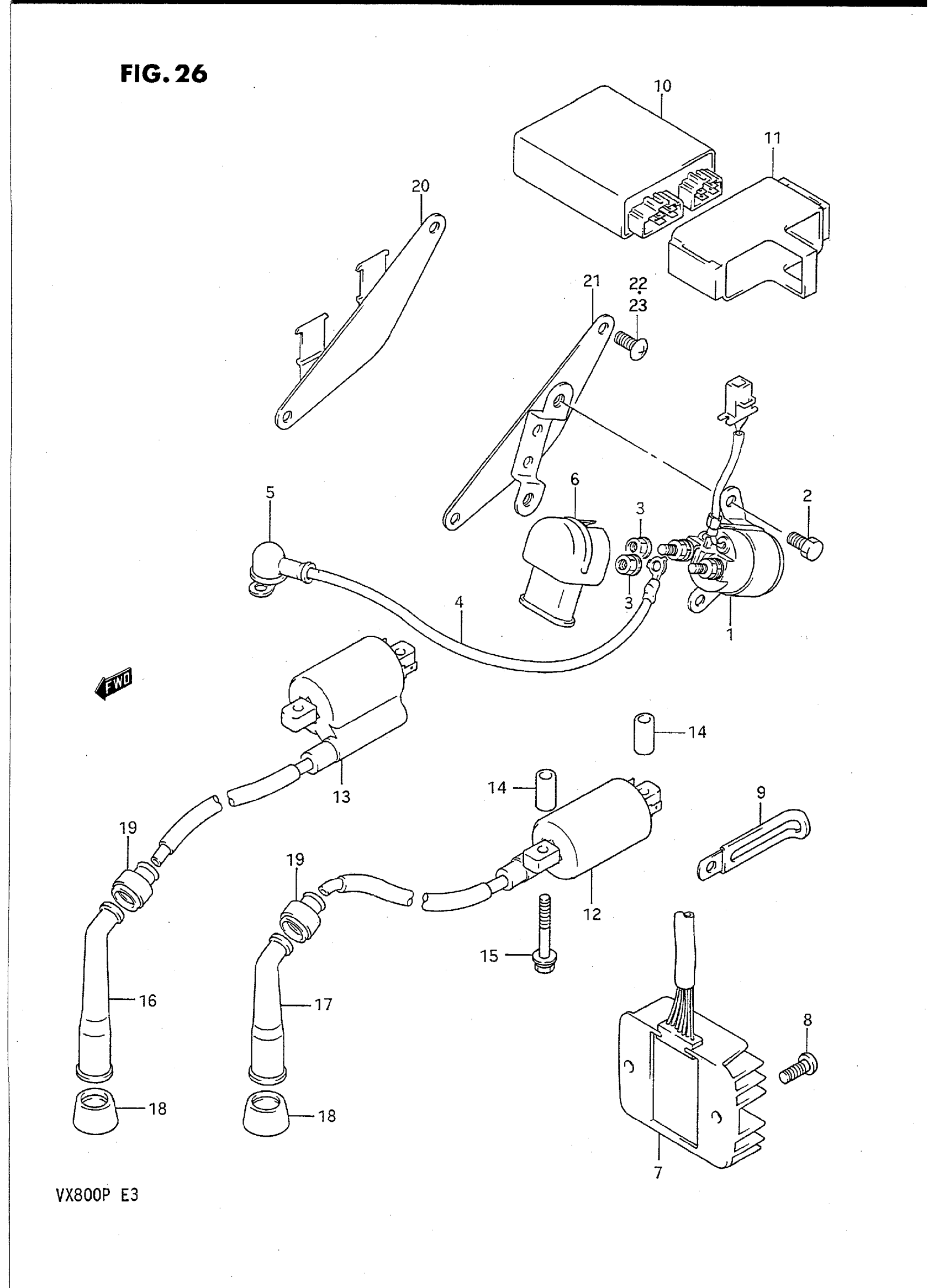

Suzuki VX800P (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | MODEL L/M This part replaces 31800-15500.

31800-15501

$97.79

1

RELAY, STARTING MOTOR | MODEL N/P

31800-15501

$97.79

2

BOLT

01104-06086

Unavailable

3

NUT This part replaces 08361-35066.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 5 This part replaces 33850-45C00.

33850-44B01

$37.82

5

CAP, STARTER MOTOR This part replaces 31861-05300.

31861-48B10

$6.55

6

CAP, TERMINAL

33624-00A10

Unavailable

7

RECTIFIER ASSY This part replaces 32800-45C00.

32800-45C01

$278.28

8

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

9

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

10

IGNITER UNIT

32900-45C30

Unavailable

11

CUSHION, IGNITER This part replaces 32980-40C00.

32980-40C01

$15.83

12

NO DESCRIPTION AVAILABLE This part replaces 33410-45C00.

33410-45C01

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 33420-45C00.

33420-45C01

Unavailable

14

SPACER

09180-06144

$4.19

15

BOLT

01174-05406

Unavailable

16

CAP, SPARK PLUG | FR

33510-11410

$25.95

17

CAP, SPARK PLUG | RR

33510-45010

$24.99

18

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

20

HOLDER, RH

47410-45C00

Unavailable

21

HOLDER, LH

47420-45C00

Unavailable

22

SCREW | L:12 This part replaces 02142-06125.

02142-0612A

$1.49

23

SCREW | L:16 This part replaces 02142-06164.

02142-0616A

$1.49
