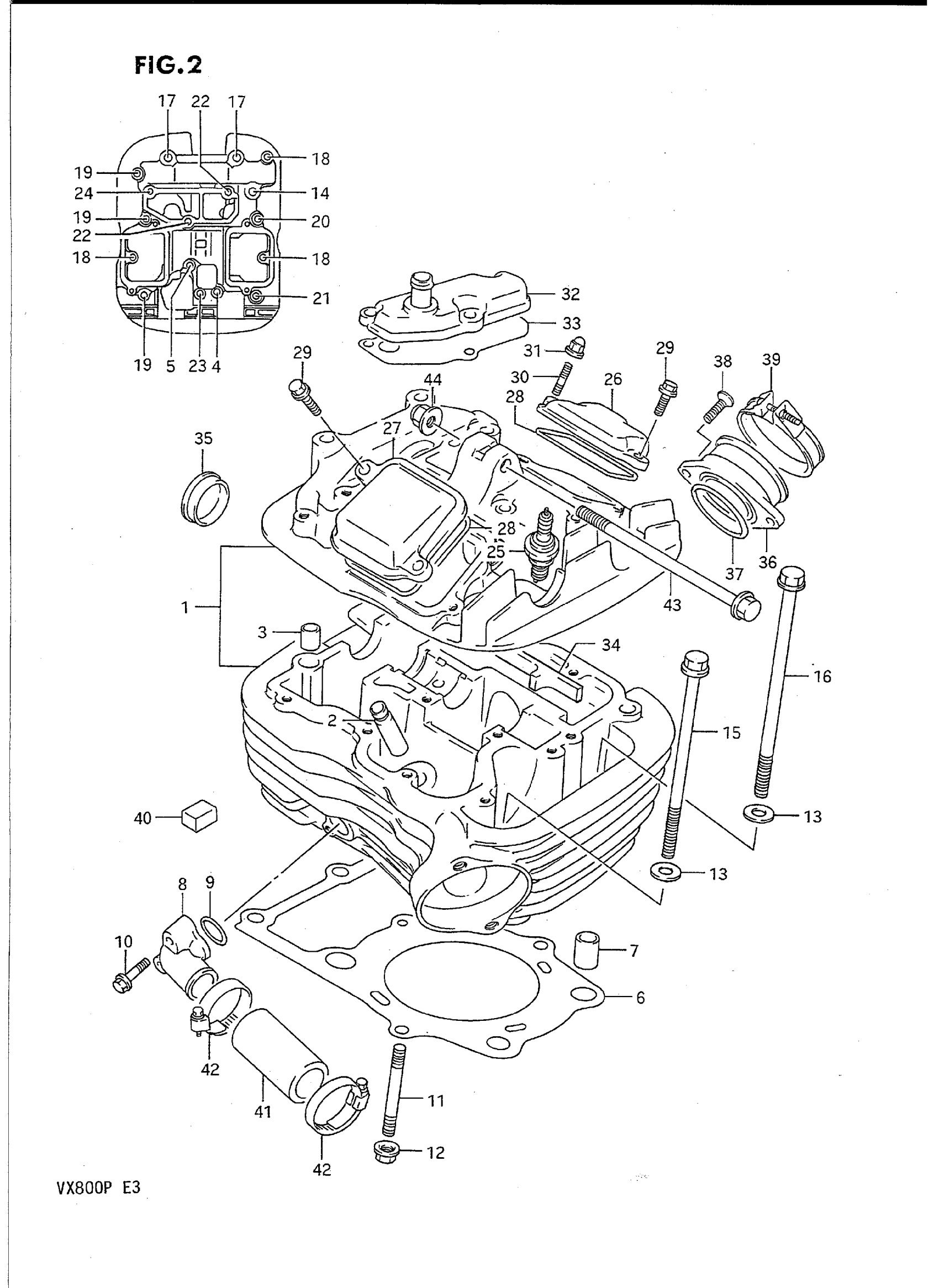

Suzuki VX800P (1993) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 5

11103-45C00

Unavailable

2

GUIDE, VALVE (OS 0.3) This part replaces 11115-38A71.

11115-41F70

$45.97

3

PIN (11X14) This part replaces 09206-11011.

09206-11004

$4.84

4

BOLT (6X50)

09103-06101

$2.72

5

BOLT (6X55)

09103-06102

$1.68

6

GASKET, CYLINDER HEAD REAR

11142-45C00

$53.51

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

UNION, CYLINDER HEAD WATER | MODEL L/M/N This part replaces 11169-45C00.

11169-45C10

Unavailable

8

UNION, CYLINDER HEAD WATER | MODEL P

11169-45C10

Unavailable

9

O RING

09280-18004

$4.66

10

BOLT

01547-06257

$2.01

11

STUD BOLT (L:40)

09108-08144

$2.93

12

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

13

WASHER

09160-10039

$2.24

14

BOLT (8X140)

09103-08040

$5.98

15

BOLT (10X155)

09103-10133

$10.32

16

BOLT (10X165)

09103-10134

$10.32

17

NO DESCRIPTION AVAILABLE This part replaces 09103-08246.

09103-08501

Unavailable

18

BOLT This part replaces 01517-06257.

01550-06257

$2.31

19

BOLT This part replaces 01517-06307.

01550-06307

$2.73

20

BOLT This part replaces 07120-06308.

07120-06307

$4.70

21

BOLT This part replaces 01517-06408.

01550-06407

$2.73

22

BOLT (6X55)

09103-06102

$1.68

23

BOLT (6X50)

09103-06101

$2.72

24

BOLT This part replaces 01517-06207.

01550-06207

$2.31

25

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$2.80

25

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

$4.90

25

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.04

25

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355-111.

09482-00354

$3.04

25

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$2.85

25

SPARK PLUG (DENSO,X27EPR-U9) | OPT This part replaces 09482-00331-111.

09482-00331

$5.77

26

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11175-45C00.

11175-45C01

Unavailable

26

CAP, INSPECTION INTAKE | MODEL P This part replaces 11175-38A10.

11175-38A11

$26.03

27

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11176-45C00.

11176-45C01

Unavailable

27

CAP, INSPECTION EXHAUST | MODEL P This part replaces 11176-38A10.

11176-38A11

$26.03

28

O RING, INSPECTION CAP

11177-38A00

$4.09

29

BOLT

01547-06207

$2.01

30

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.89

31

NUT This part replaces 08313-21067.

08313-20067

$2.43

32

COVER, BREATHER | MODEL L/M/N This part replaces 11180-45C00.

11180-45C10

Unavailable

32

COVER, BREATHER | MODEL P

11180-45C10

Unavailable

33

GASKET, BREATHER COVER | MODEL L This part replaces 11187-38A02.

11187-38A02-H17

$9.00

33

GASKET, BREATHER COVER (NA) | MODEL M/N/P

11187-38A02-H17

$9.00

34

PLATE, HEAD COVER

11179-38A00

Unavailable

35

PLUG, CYLINDER HEAD

09241-30004

$5.97

36

PIPE, INTAKE REAR This part replaces 13120-45C00.

13102-45C00

$33.34

37

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.80

38

SCREW This part replaces 02122-06205.

02122-0620A

$1.45

39

CLAMP, INTAKE PIPE This part replaces 13170-05A00.

09402-52501

$9.98

40

PAD, RUBBER

11152-38A00

$3.80

41

HOSE, CYLINDER HEAD JOINT

17854-38A00

$10.35

42

CLAMP This part replaces 09402-25502.

09402-28511

$6.21

43

BOLT (8X135)

09103-08212

$8.12

44

NUT This part replaces 09159-08064.

09159-08049

$4.25
