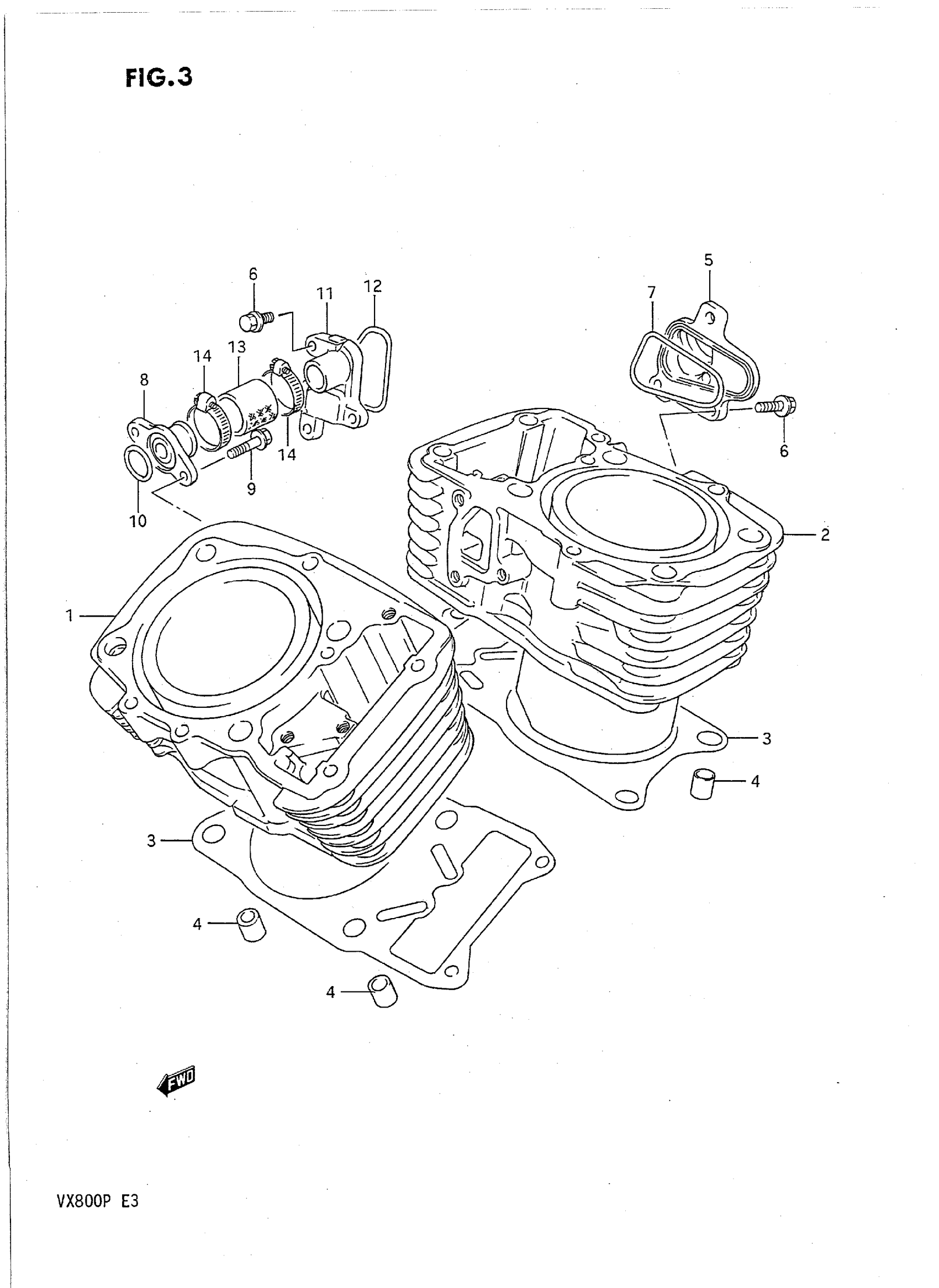

Suzuki VX800P (1993) CYLINDER Diagram

#

Description
Price

1

CYLINDER, FRONT This part replaces 11210-45C01.

11210-39A01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11220-45C01.

11220-45C20

Unavailable

3

GASKET, CYLINDER | MODEL L This part replaces 11241-45C01.

11241-45C20

$17.17

3

GASKET, CYLINDER (NA) | MODEL M/N/P

11241-45C20

$17.17

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

CONNECTOR, WATER INLET This part replaces 11237-45C00.

11237-41F00

$50.20

6

BOLT

01547-06207

$2.01

7

O RING

11247-38A00

$3.35

8

UNION, WATER INLET This part replaces 11235-45C00.

11235-41F00

$28.80

9

BOLT

01547-06167

$1.64

10

O RING

09280-16005

$2.24

11

CHAMBER, WATER OUTLET This part replaces 11236-45C00.

11236-45C10

Unavailable

12

O RING

11246-38A00

$6.00

13

HOSE, CYLINDER JOINT This part replaces 17853-38A00.

17851-01A00

$24.93

14

CLAMP This part replaces 09402-25502.

09402-28511

$6.21
