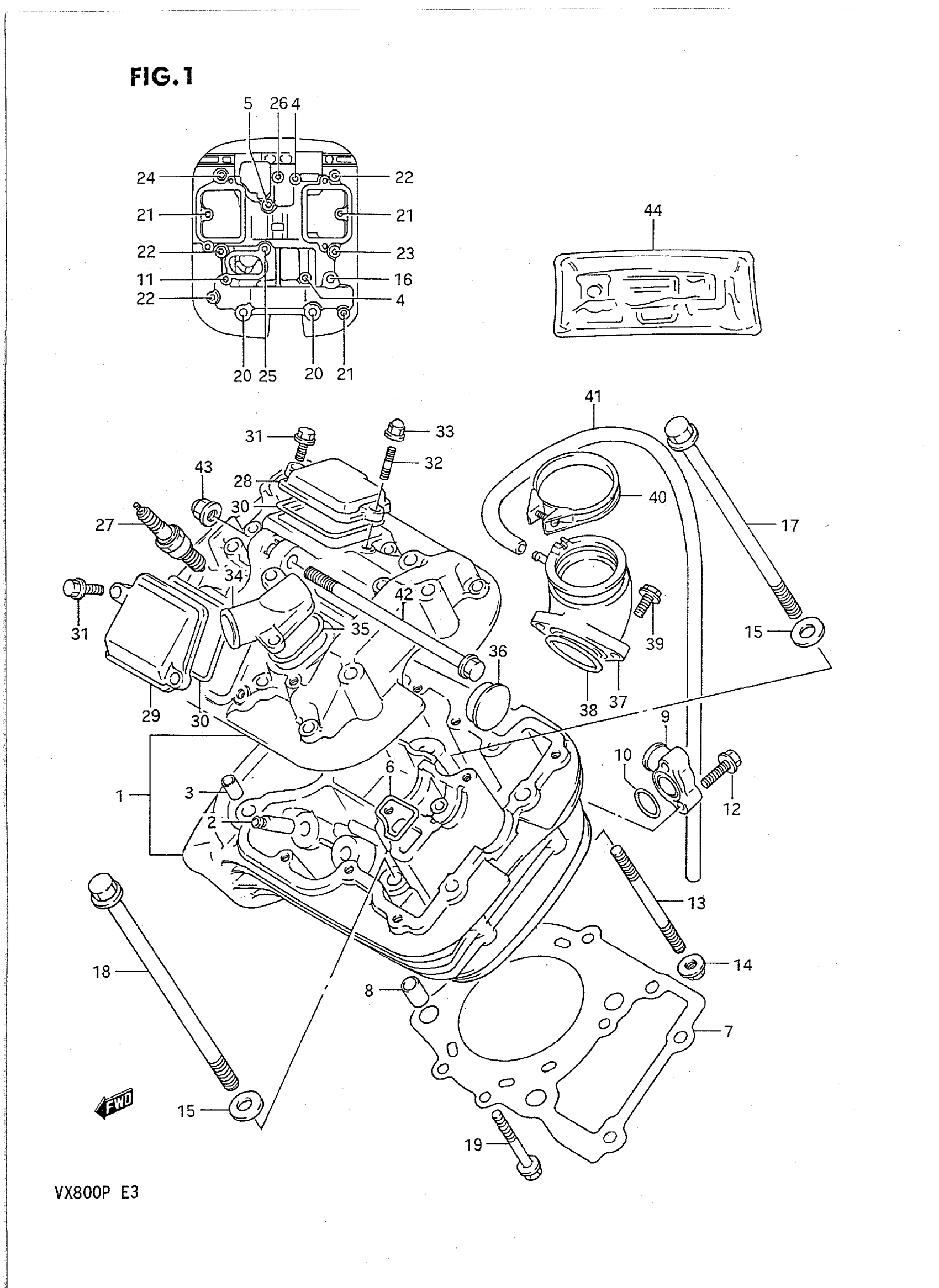

Suzuki VX800P (1993) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 5

11101-45C00

Unavailable

2

GUIDE, VALVE (OS 0.3) This part replaces 11115-38A71.

11115-41F70

$40.73

3

PIN (11X14) This part replaces 09206-11011.

09206-11004

$5.36

4

BOLT (6X50)

09103-06101

$2.16

5

BOLT (6X55)

09103-06102

$2.10

6

O RING, CYLINDER HEAD COVER

11123-38A00

$3.77

7

GASKET, CYLINDER HEAD FRONT

11141-45C00

$56.84

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

UNION, CYLINDER HEAD WATER | MODEL L/M/N This part replaces 11169-45C00.

11169-45C10

Unavailable

9

UNION, CYLINDER HEAD WATER | MODEL P

11169-45C10

Unavailable

10

O RING

09280-18004

$5.18

11

BOLT This part replaces 01517-06207.

01550-06207

$2.30

12

BOLT

01547-06257

$2.03

13

STUD BOLT (L:40)

09108-08144

$3.20

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

15

WASHER

09160-10039

$2.26

16

BOLT (8X140)

09103-08040

$5.52

17

BOLT (10X155)

09103-10133

$9.48

18

BOLT (10X165)

09103-10134

$9.48

19

BOLT This part replaces 01517-06408.

01550-06407

$2.69

20

NO DESCRIPTION AVAILABLE This part replaces 09103-08246.

09103-08501

Unavailable

21

BOLT This part replaces 01517-06257.

01550-06257

$2.30

22

BOLT This part replaces 01517-06307.

01550-06307

$2.69

23

BOLT This part replaces 07120-06308.

07120-06307

$4.32

24

BOLT This part replaces 01517-06408.

01550-06407

$2.69

25

BOLT (6X55)

09103-06102

$2.10

26

BOLT (6X50)

09103-06101

$2.16

27

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$3.03

27

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

$5.36

27

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.32

27

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355-111.

09482-00354

$3.32

27

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$3.11

27

SPARK PLUG (DENSO,X27EPR-U9) | OPT This part replaces 09482-00331-111.

09482-00331

$5.28

28

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11175-45C00.

11175-45C01

Unavailable

28

CAP, INSPECTION INTAKE | MODEL P This part replaces 11175-38A10.

11175-38A11

$23.07

29

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11176-45C00.

11176-45C01

Unavailable

29

CAP, INSPECTION EXHAUST | MODEL P This part replaces 11176-38A10.

11176-38A11

$23.07

30

O RING, INSPECTION CAP

11177-38A00

$4.48

31

BOLT

01547-06207

$2.01

32

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

33

NUT This part replaces 08313-21067.

08313-20067

$2.42

34

UNION, CYLINDER HEAD OUTLET | MODEL L/M/N This part replaces 11181-45C00.

11181-45C10

Unavailable

34

UNION, WATER OUTLET | MODEL P

11181-45C10

Unavailable

35

O RING, WATER UNION

11182-38A00

$2.81

36

PLUG, CYLINDER HEAD

09241-30004

$6.60

37

PIPE ASSY,INTAK This part replaces 13110-45C00.

13101-45C01

$70.55

38

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

39

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

40

CLAMP, INTAKE PIPE This part replaces 13170-05A00.

09402-52501

$10.90

41

HOSE(5X9X2000) | L:1000->730 This part replaces 09352-50903-00A.

09352-50006-00B

$17.86

42

BOLT (8X150)

09103-08268

Unavailable

43

NUT This part replaces 09159-08064.

09159-08049

$4.71

44

GASKET SET | MODEL L OPT This part replaces 11402-45810.

11402-45818

$323.43

44

GASKET SET | MODEL M/N/P OPT This part replaces 11402-45811.

11402-45818

$323.43
