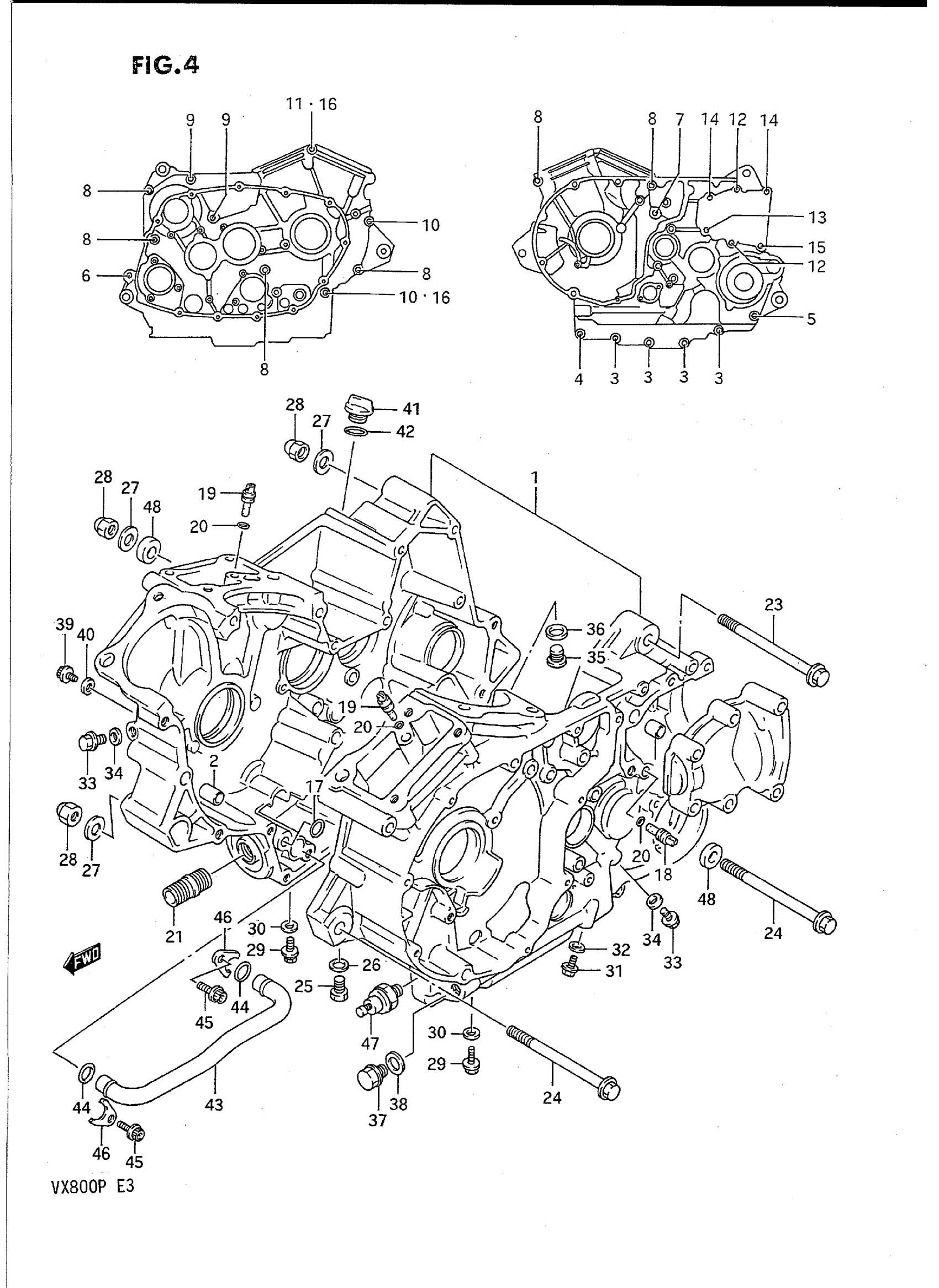

Suzuki VX800P (1993) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 22 This part replaces 11300-45861.

11300-45890

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT This part replaces 01517-08357.

01550-08357

$3.49

5

BOLT This part replaces 01517-08558.

01550-08557

$3.74

6

BOLT This part replaces 01517-08608.

01550-08607

$3.76

7

BOLT This part replaces 01517-08758.

01550-08757

$4.68

8

BOLT This part replaces 01517-08958.

01550-08957

$5.37

9

BOLT (8X120)

09103-08109

$3.18

10

BOLT (8X105)

09103-08097

$3.44

11

BOLT (8X160) This part replaces 09103-08096.

09103-08110

$10.30

12

BOLT This part replaces 01517-08407.

01550-08407

$3.42

13

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$4.00

14

BOLT This part replaces 01517-08558.

01550-08557

$3.74

15

BOLT This part replaces 01517-08658.

01550-08657

$4.68

16

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

17

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$3.18

18

JET,T/M OIL GALLERY

09493-20014

$16.87

19

JET, OIL GALLERY

09493-28010

$16.57

20

O RING

09280-04004

$1.91

21

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

22

WASHER, CRANK THRUST (NO.1) | SEE ILLUSTRATION ON FIG.6 (B-10)

09160-48001

Unavailable

22

WASHER, CRANK THRUST (NO.2)

09160-48002

Unavailable

22

WASHER, CRANK THRUST (NO.3)

09160-48003

Unavailable

22

WASHER, CRANK THRUST (NO.4)

09160-48004

Unavailable

22

WASHER, CRANK THRUST (NO.5)

09160-48005

Unavailable

22

WASHER, CRANK THRUST (NO.6)

09160-48006

$30.35

22

WASHER, CRANK THRUST (NO.7)

09160-48007

Unavailable

22

WASHER, CRANK THRUST (NO.8)

09160-48008

Unavailable

22

WASHER, CRANK THRUST (NO.9)

09160-48009

Unavailable

22

WASHER, CRANK THRUST (NO.10)

09160-48010

$30.35

23

BOLT (10X130)

09103-10237

$9.68

24

BOLT (10X170)

09103-10224

Unavailable

25

BOLT This part replaces 01107-12208.

01500-1220B

$4.00

26

GASKET

09168-12002

$1.59

27

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

28

NUT

09159-10052

$7.11

29

BOLT This part replaces 01517-08128.

01550-08127

$2.85

30

GASKET

09168-08015

$2.79

31

PLUG, OIL GALLERY

09247-10008

$1.97

32

GASKET

09168-10002

$2.13

33

BOLT This part replaces 01517-06108.

01550-06107

$2.80

34

WASHER

09168-06023

$2.35

35

PLUG, OIL GALLERY

09248-16008

$5.72

36

GASKET

09168-16002

$1.91

37

PLUG This part replaces 09247-14012.

09247-14026

$3.76

38

GASKET

09168-14004

$1.83

39

PLUG, OIL GALLERY

07120-08127

Unavailable

40

GASKET

09168-08015

$2.79

41

PLUG, OIL FILLER This part replaces 09259-20017.

09259-20007

$7.53

42

O RING

09280-17003

$1.65

43

PIPE, OIL GALLERY

11451-38A00

Unavailable

44

O RING

09280-15008

$2.15

45

BOLT, OIL GALLERY This part replaces 07120-06128.

07120-06127

$3.85

46

CLAMP

11461-38A00

Unavailable

47

SWITCH ASSY,OIL PRESSURE | MODEL L/M/N This part replaces 37820-33200.

37820-33D11

$25.13

47

SWITCH ASSY,OIL PRESSURE | MODEL P This part replaces 37820-33D00.

37820-33D11

$25.13

48

SPACER, ENGINE MOUNTING

41932-45C00

Unavailable
