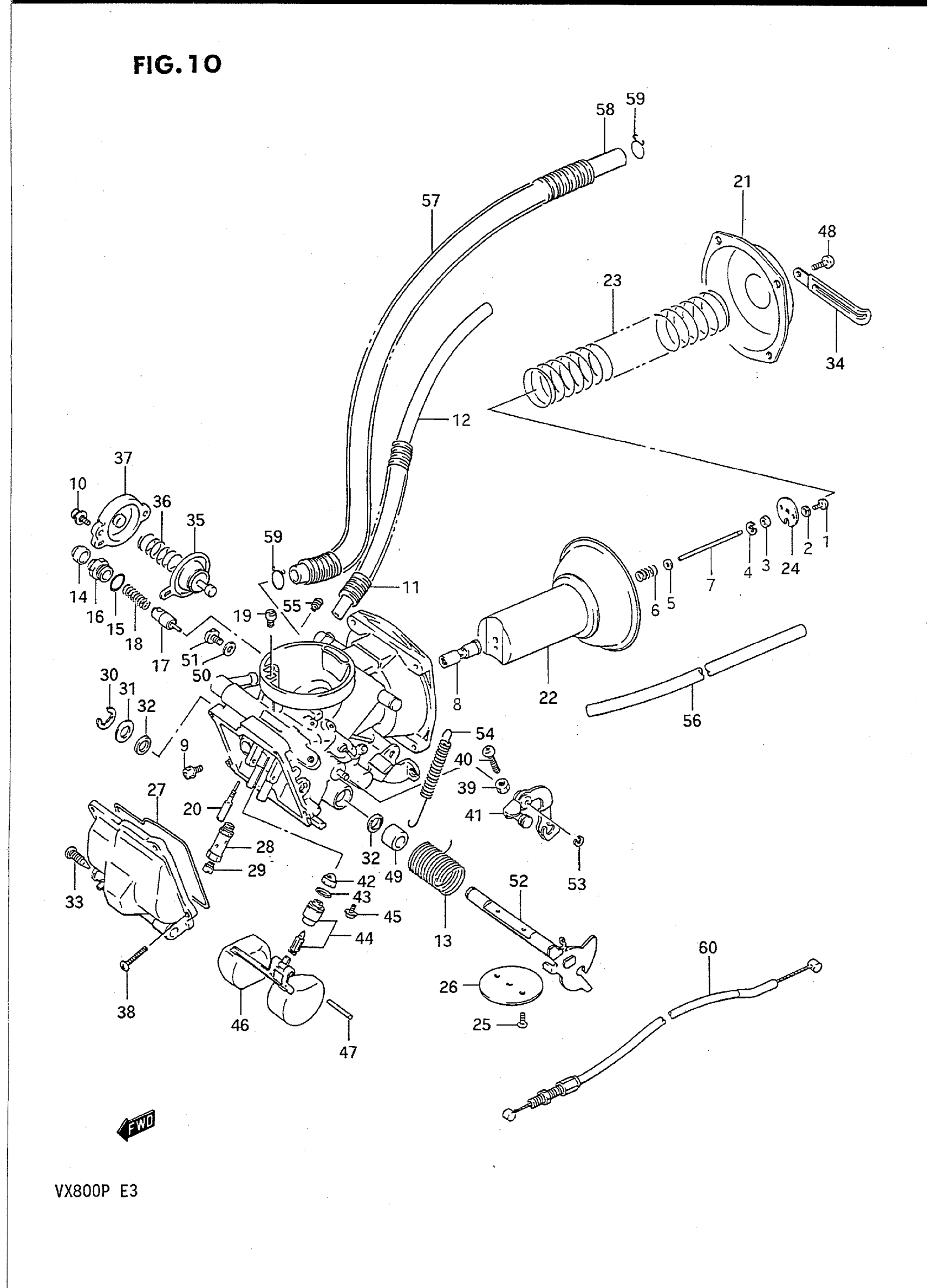

Suzuki VX800P (1993) CARBURETOR (FRONT) Diagram

#

Description
Price

CARBURETOR ASSY, FRONT

13210-45C10

Unavailable

CARBURETOR ASSY, FRONT | CALIFORNIA ONLY; Includes Item(s) 1 - 56

13210-45C20

Unavailable

1

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

2

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

3

RING

13387-47010

$7.22

4

E RING

13394-10010

$5.45

5

WASHER

13382-44030

$3.71

6

SPRING

13388-44030

$8.12

7

NEEDLE, JET (5D47-1)

13383-45C20

$19.15

8

JET, NEEDLE (P-2)

09494-00588

Unavailable

9

SCREW

13605-38B00

$7.95

10

SCREW

13602-19B50

$3.43

11

HOSE (10X14X225) This part replaces 13684-45C20.

13684-19C00

Unavailable

12

HOSE,5X10X600 This part replaces 13684-38A20.

44421-13ER0

$10.06

13

SPRING

13573-38B00

Unavailable

14

.CAP This part replaces 13681-04010.

13681-04011

$4.93

15

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

16

HOLDER, GUIDE

13418-43410

$7.22

17

PLUNGER

13411-01400

$13.30

18

SPRING

13417-22010

$3.56

19

JET, PILOT AIR (65)

09492-65005

$11.38

20

JET, PILOT (40) | MODEL L/M/N This part replaces 09492-40020.

09492-40021

$16.78

20

JET, PILOT (40) | MODEL P

09492-40021

$16.78

21

COVER This part replaces 13502-45C10.

13502-38A00

$37.53

22

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

23

SPRING

13503-38B00

$10.69

24

PLATE

13389-37400

$7.08

25

SCREW

13604-44080

$2.92

26

VALVE, THROTTLE (110)

13551-38B00

Unavailable

27

O RING

13251-38A00

$6.79

28

HOLDER

13385-05A11

$14.85

29

JET, MAIN (122.5)

09491-24023

$18.02

30

E RING

13617-44080

$2.90

31

WASHER

13557-47070

$3.59

32

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

33

SCREW, DRAIN This part replaces 13247-38B00.

13247-02340

$4.99

34

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.74

35

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

36

SPRING

13481-45C10

$5.55

37

COVER

13484-45C00

$19.72

38

SCREW

13601-04148

$2.81

39

NUT This part replaces 13607-05A10.

08310-00047

$2.23

40

SCREW This part replaces 02112-04306.

02112-0430B

$2.83

41

LEVER ASSY This part replaces 13554-45C10.

13554-45C20

$41.63

42

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

43

O RING This part replaces 13374-44080.

13374-35C00

$5.99

44

VALVE ASSY, NEEDLE

13370-38B00

$58.10

45

SCREW

13602-05A10

$3.56

46

FLOAT

13250-38B00

$27.75

47

PIN, FLOAT

13254-20010

$4.28

48

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

49

RING

13574-45C00

Unavailable

50

WASHER

13523-46110

$2.70

51

SCREW This part replaces 02112-05066.

02112-0506B

$1.84

52

NO DESCRIPTION AVAILABLE This part replaces 13550-45C10.

13550-38B00

Unavailable

53

E RING This part replaces 13298-49000.

13415-38300

$2.08

54

SPRING

13573-38B30

Unavailable

55

JET, PILOT AIR (1.2)

09493-24007

$16.15

56

HOSE (5X8X430) | CALIFORNIA ONLY This part replaces 13683-38B00.

13683-38B01

$34.98

57

HOSE This part replaces 13684-45C00.

13684-38B00

Unavailable

58

HOSE(6.5X11.5X6 | L:600->450 This part replaces 09354-65113-600.

09355-65001-600

$12.00

59

CLIP (ID:11) This part replaces 13671-38B00.

09401-11403

$2.85

60

CABLE, ID SYNCRO | MODEL L/M/N This part replaces 13641-38B00.

13641-38B03

$19.98

60

CABLE, ID SYNCRO | MODEL P This part replaces 13641-38B01.

13641-38B03

$19.98
