- VX800A (VMAX-4 800) 8BU3 1997
TRACK SUSPENSION 1

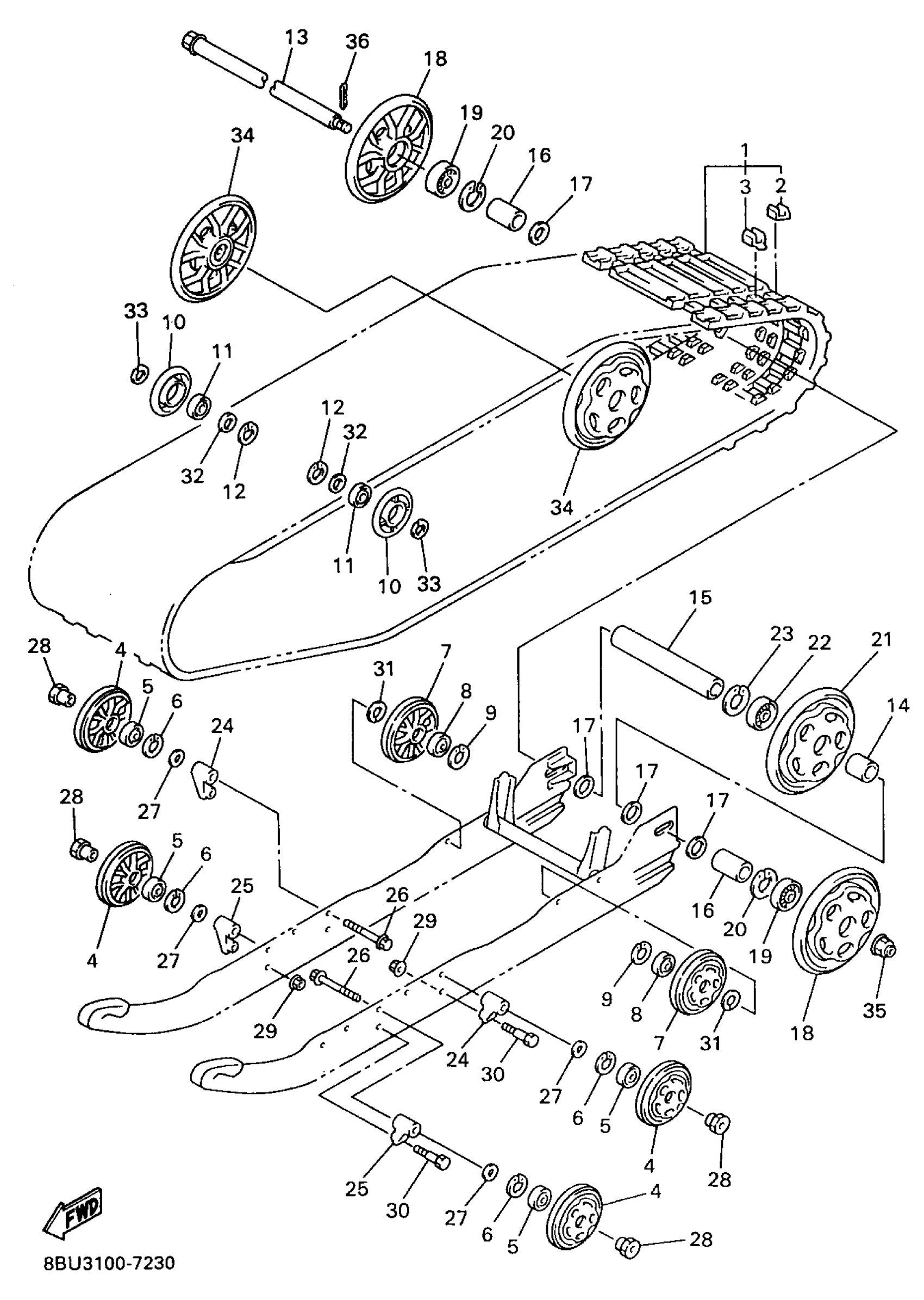

Yamaha VX800A (VMAX-4 800) 8BU3 1997 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8EA-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
89A-47115-01-00
Unavailable
4
SUSPENSION WHEEL COMP.
87U-47320-00-00
Unavailable
5
BEARING(8AB)
93306-00444-00
$41.99
6
CIRCLIP(5U8)
99009-42500-00
$8.49
7
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
8
BEARING(8AB)
93306-00444-00
$41.99
9
CIRCLIP(5U8)
99009-42500-00
$8.49
10
SUSPENSION WHEEL COMP.
8H8-47320-00-00
$64.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
REAR AXLE COMP.
8L8-47520-02-00
$89.99
14
COLLAR
90387-204R3-00
Unavailable
15
COLLAR
90387-20023-00
Unavailable
16
COLLAR
90387-20022-00
Unavailable
17
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
18
GUIDE WHEEL COMP.
8M6-47530-00-00
Unavailable
19
BEARING(8AE)
93306-20469-00
Unavailable
20
CIRCLIP(48Y)
99009-47500-00
Unavailable
21
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
22
BEARING(8AE)
93306-20469-00
Unavailable
23
CIRCLIP(48Y)
99009-47500-00
Unavailable
24
BRACKET 7
8CM-47419-10-00
Unavailable
25
BRACKET 7
8CM-47419-20-00
Unavailable
26
BOLT, FLANGE
90105-10029-00
Unavailable
27
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
28
NUT(8CM)
90179-10670-00
Unavailable
29
NUT, SELF-LOCKING
90185-08169-00
Unavailable
30
BOLT(8CM)
90101-08774-00
Unavailable
31
CIRCLIP(1AR)
99009-20400-00
Unavailable
32
COLLAR(8AB)
90387-2004V-00
Unavailable
33
CIRCLIP(1AR)
99009-20400-00
Unavailable
34
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
35
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
36
PIN, COTTER
91490-30030-00
Unavailable
