- VX800A (VMAX-4 800) 8BU3 1997
ELECTRICAL 1

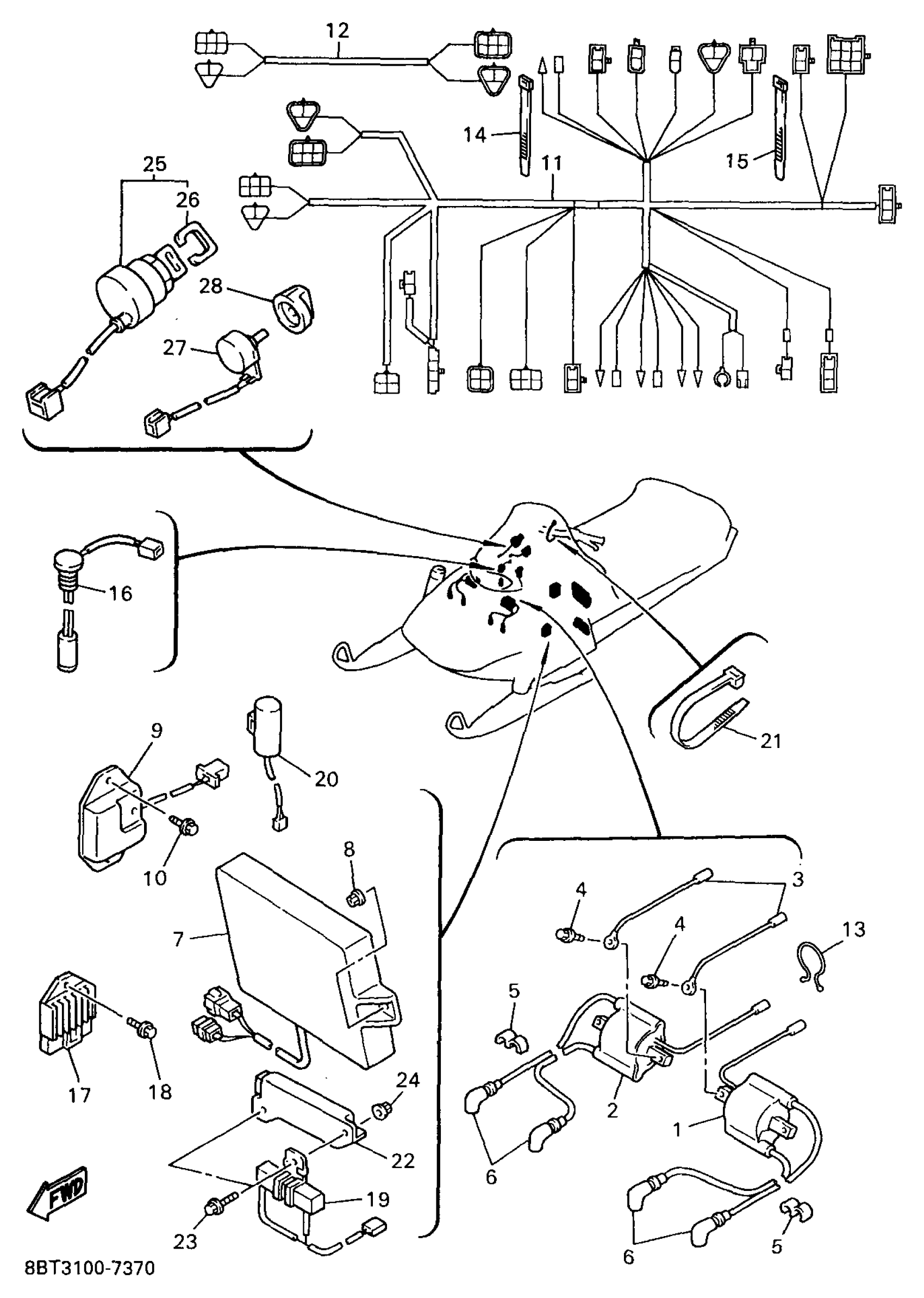

Yamaha VX800A (VMAX-4 800) 8BU3 1997 ELECTRICAL 1 Diagram
#
Description
Price
1
IGNITION COIL ASSY
85T-82310-06-00
$79.99
2
IGNITION COIL ASSY
89A-82320-09-00
Unavailable
3
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
4
BOLT, FLANGE(JK3)
95880-06020-00
$4.19
5
CLAMP, CORD
861-82361-00-00
Unavailable
6
PLUG CAP ASSY
8DG-82370-00-00
$49.99
7
C. D. I. UNIT ASSEMBLY
8BU-85540-00-00
Unavailable
8
NUT, FLANGE(4MV)
95707-06500-00
$1.23
9
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
10
BOLT, FLANGE
95817-06016-00
$2.75
11
WIRE HARNESS ASSEMBLY
8BU-82590-00-00
Unavailable
12
WIRE HARNESS ASSEMBLY 2
8BU-82580-00-00
Unavailable
13
CLAMP (3Y2)
90464-16039-00
$9.49
14
BAND
341-26397-01-00
Unavailable
15
BAND, SWITCH CORD
25G-83936-01-00
$4.78
16
OIL LEVEL GAUGE ASSY
3E1-85720-15-00
Unavailable
17
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
$2.75
19
RESISTOR ASY
89M-85370-00-00
Unavailable
20
CONDENSER, SMOOTHING
1NL-81965-01-00
Unavailable
21
BAND, SWITCH CORD
25G-83936-01-00
$4.78
22
RECTIFIER & REGULAT0R ASSY
1JK-81960-A1-00
Unavailable
23
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
24
NUT,SELF-LOCKING
95607-06200-00
Unavailable
25
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
26
CAP, KEY
526-82579-00-00
Unavailable
27
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
28
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
