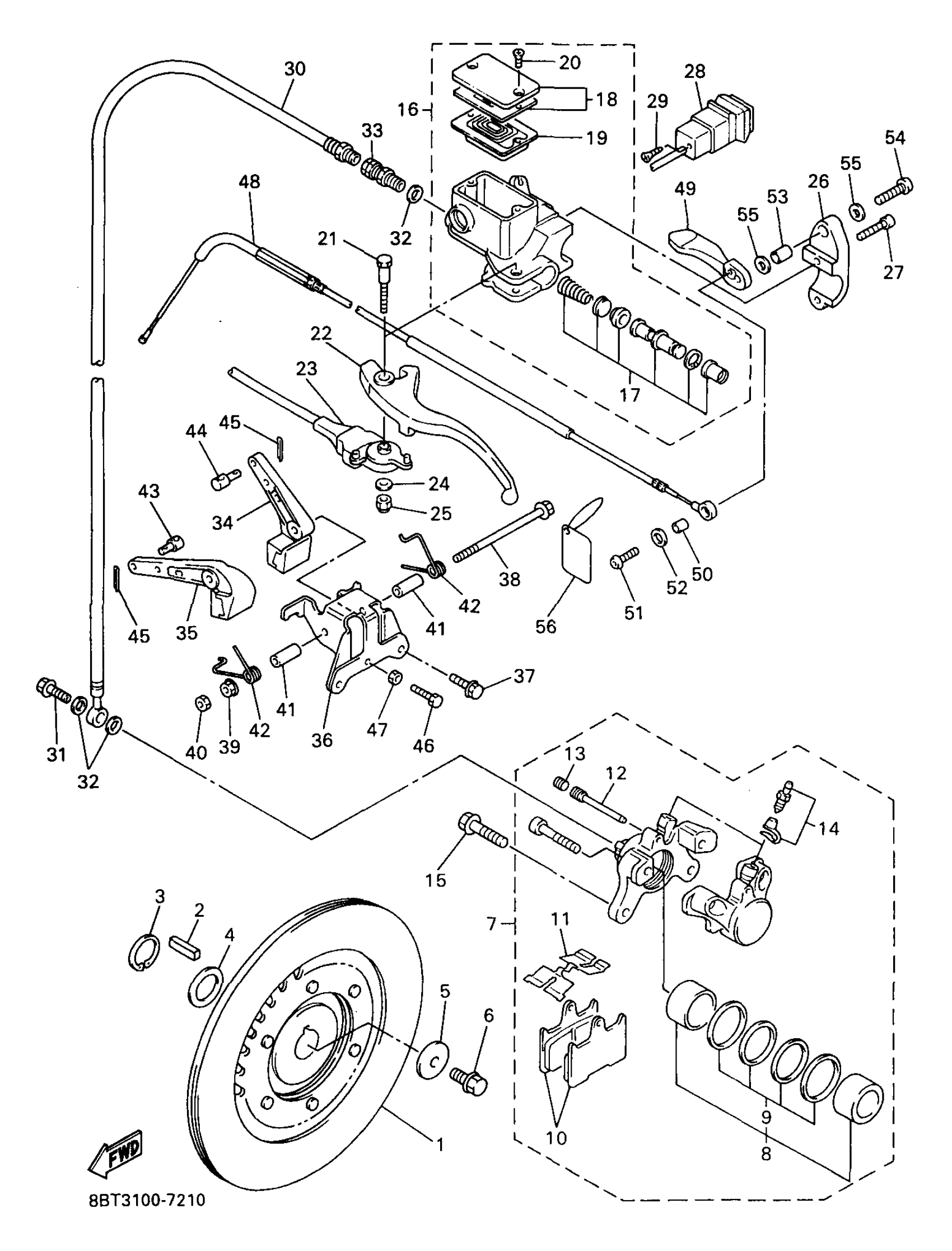

Yamaha VX800A (VMAX-4 800) 8BU3 1997 BRAKE Diagram
#
0
WASHER, PLATE
90201-270U2-00
Unavailable
0
WASHER, PLATE
90201-270U3-00
Unavailable
0
WASHER, PLATE
90201-270U4-00
Unavailable
1
DISK BRAKE ASSY
8DN-2581T-00-00
Unavailable
2
KEY, SLIDING(88K)
90281-07004-00
$13.99
3
CIRCLIP(8CJ)
93410-27080-00
$2.55
4
WASHER, PLATE
90201-270U5-00
Unavailable
5
WASHER, PLATE (856)
90201-10321-00
$8.49
6
BOLT, FLANGE
95817-10020-00
$8.49
7
CALIPER ASSY (LEFT)
8CR-2580T-00-00
Unavailable
8
PISTON ASSY, CALIPER
8CR-W0057-00-00
Unavailable
9
CALIPER SEAL KIT
8CR-W0047-00-00
$21.99
10
BRAKE PAD KIT 2
8DF-W0046-01-00
$60.99
11
SUPPORT, PAD
8CR-25919-00-00
Unavailable
12
PIN, PAD
8CR-25924-00-00
$14.49
13
BOLT
8CR-25926-00-00
Unavailable
14
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
15
BOLT, WASHER BASED(3VD)
90105-10638-00
Unavailable
16
MASTER CYLINDER SUB ASSEMBLY
8CR-W2587-00-00
Unavailable
17
CYLINDER KIT, MASTER
8CR-W0041-00-00
Unavailable
18
RESERVOIR CAP SET
8CR-W2585-00-00
Unavailable
19
DIAPHRAGM, RESERVOIR
55U-25854-00-00
Unavailable
20
SCREW, FLAT
98707-04012-00
Unavailable
21
BOLT, LEVER
8CR-2589F-00-00
Unavailable
22
LEVER 2
8CR-83922-00-00
Unavailable
23
STOP SWITCH ASSY
8CR-82530-01-00
Unavailable
24
WASHER, PLAIN
8CR-8398X-00-00
Unavailable
25
NUT, NYLON
95707-05300-00
Unavailable
26
HOLDER, MASTER CYLINDER
8CR-25867-00-00
Unavailable
27
BOLT,SOCKET
91317-06020-00
Unavailable
28
BEAM SWITCH ASSY
8K4-83950-01-00
Unavailable
29
SCREW
8CR-2589H-00-00
Unavailable
30
HOSE, BRAKE 1
8BU-25872-00-00
Unavailable
31
BOLT, UNION(3GM)
90401-10159-00
Unavailable
32
WASHER, PLATE(481)
90201-10118-00
Unavailable
33
JOINT
3LC-25885-00-00
Unavailable
34
CALIPER BODY COMP.1
8CR-25730-00-00
Unavailable
35
CALIPER BODY COMP. 2
8CR-25740-00-00
Unavailable
36
BRACKET, CALIPER
8BU-25721-00-00
Unavailable
37
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
38
BOLT, FLANGE
90105-08094-00
Unavailable
39
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
40
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
41
COLLAR(82M)
90387-084R5-00
Unavailable
42
SPRING, TORSION
90508-291B1-00
Unavailable
43
PIN
90249-06009-00
Unavailable
44
PIN
90249-06228-00
Unavailable
45
PIN, COTTER (648)
91490-20015-00
Unavailable
46
BOLT, HEXAGON
97017-06025-00
Unavailable
47
NUT(JN5)
95317-06700-00
Unavailable
48
CABLE, BRAKE
8BU-26351-00-00
Unavailable
49
LEVER 2
8CR-83922-00-00
Unavailable
50
COLLAR
90387-06043-00
Unavailable
51
BOLT, BUTTON HEAD
92017-06014-00
Unavailable
52
WASHER, PLATE
90201-06M08-00
Unavailable
53
COLLAR
90387-081M9-00
Unavailable
54
BOLT, BUTTON
92017-08020-00
Unavailable
55
WASHER PLATE 141181390000
90201-08085-00
Unavailable
56
TAG, CAUTION
8CR-23496-00-00
Unavailable
