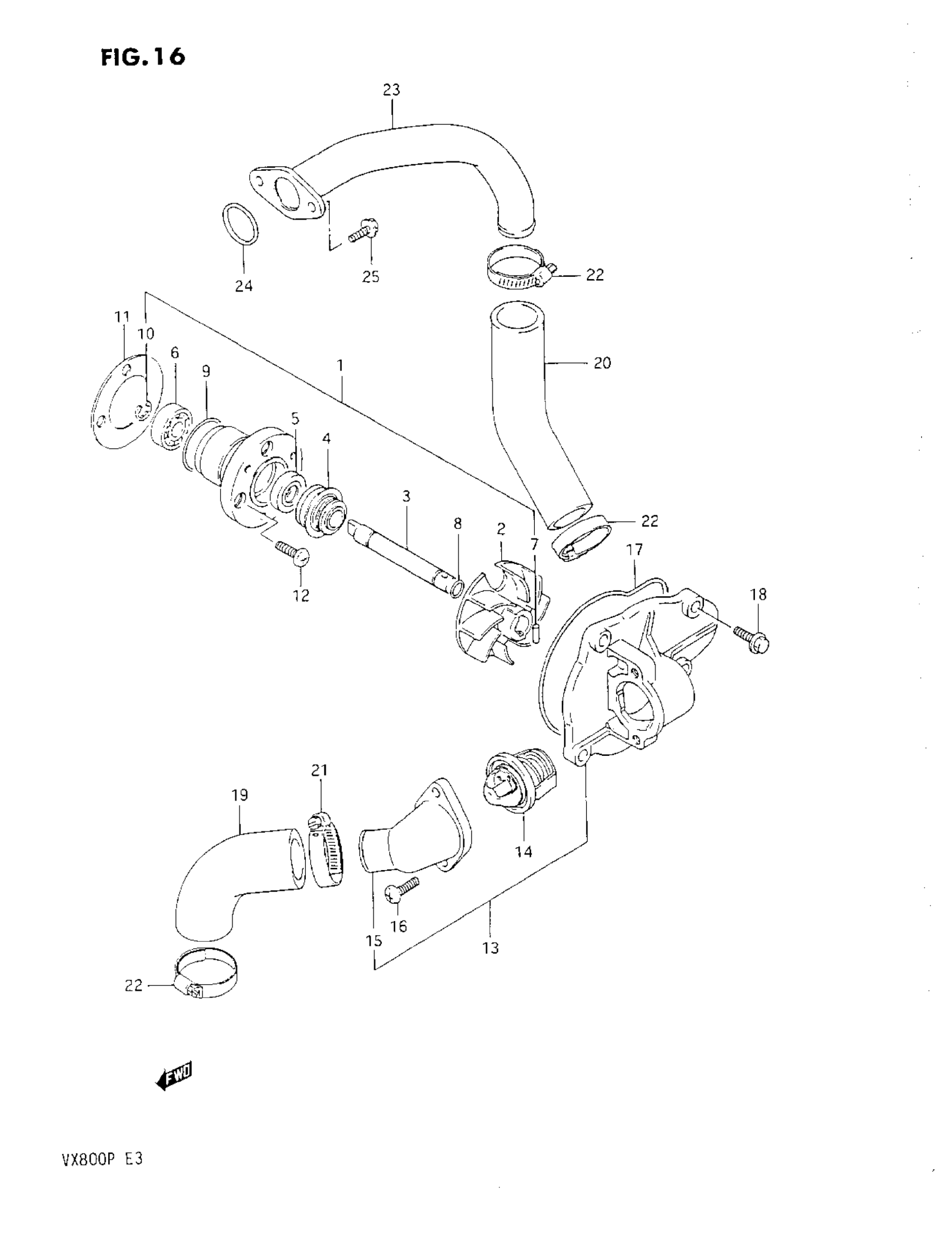

Suzuki VX800 (1993) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-38A02.

17400-38A11

$160.95

2

IMPELLER

17491-38A00

$27.97

3

SHAFT

17511-38A00

Unavailable

4

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5) This part replaces 17461-38A00.

09283-10004

$4.96

6

BEARING (10X26X8) This part replaces 17451-38A00.

09262-10014

$16.01

7

PIN

17516-38A00

Unavailable

8

O-RING

17515-38A00

$1.92

9

.O RING This part replaces 17417-38A00.

17417-38A01

$3.23

10

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

11

GASKET, WATER PUMP | MODEL L/M This part replaces 17431-38A00.

17431-38A10

$5.98

11

GASKET, WATER PUMP (NA) | MODEL N/P

17431-38A10

$5.98

12

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

13

CAP ASSY, WATER PUMP

17410-45C00

Unavailable

14

THERMOSTAT,WATE This part replaces 17670-33410.

17670-33411

$35.78

15

CONNECTOR

17412-45C00

Unavailable

16

SCREW

02112-06167

$1.49

17

O-RING

17435-38A00

$6.28

18

BOLT

01547-06207

$2.01

19

HOSE, WATER PUMP IN

17857-38A02

$17.37

20

HOSE, WATER PUMP OUT This part replaces 17858-38A01.

17858-38820

$14.76

21

CLAMP | MODEL L/M/N This part replaces 09402-30501.

09402-32511

$10.86

21

CLAMP | MODEL P This part replaces 09402-30502.

09402-32511

$10.86

22

CLAMP This part replaces 09402-30502.

09402-32511

$10.86

23

PIPE, CYLINDER IN

17890-38A00

Unavailable

24

O-RING (D:2.3, ID:24.4)

09280-24007

$1.91

25

BOLT

01547-06167

$1.65
