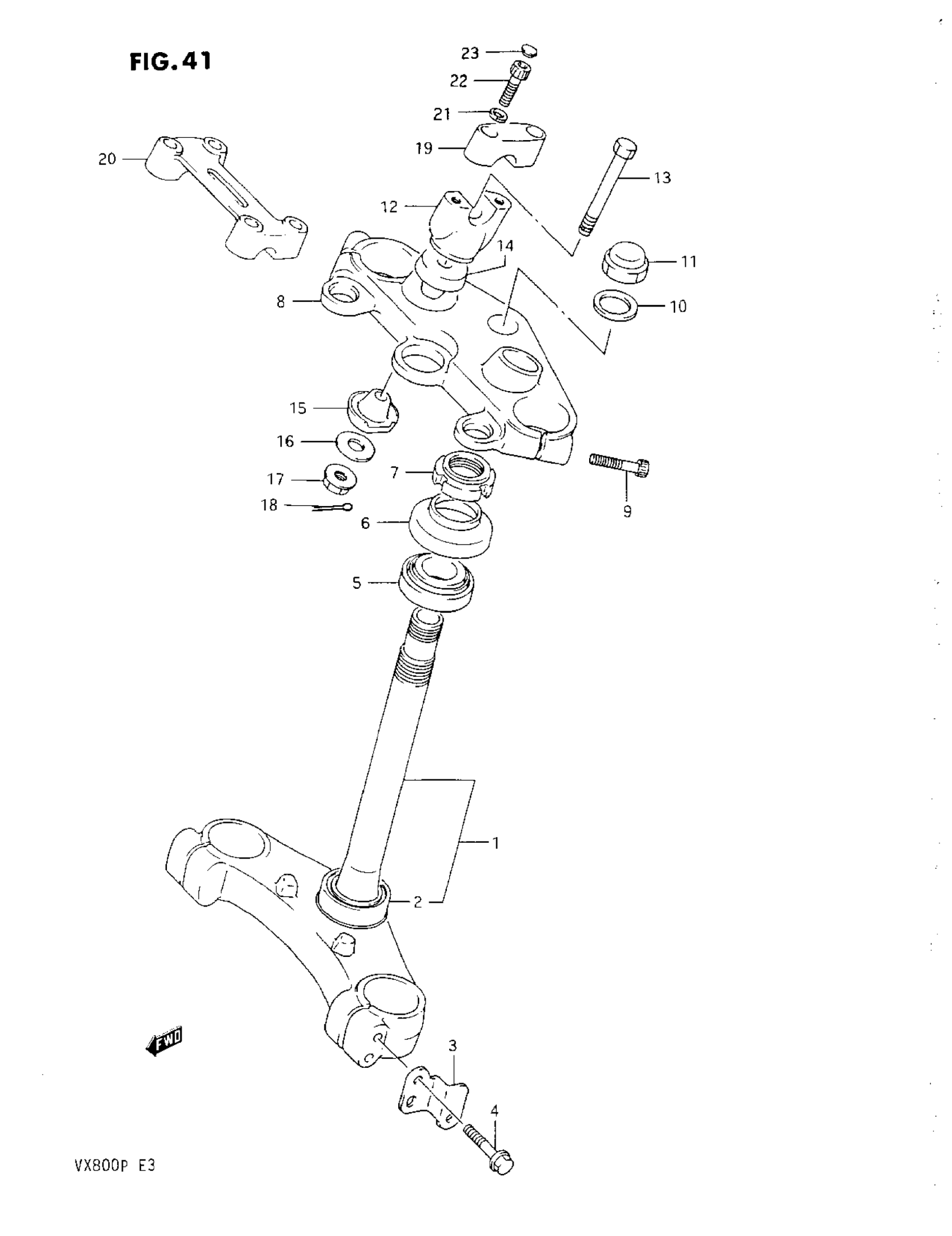

Suzuki VX800 (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING (SILVER) | MODEL L

51410-45C40-23S

Unavailable

1

STEM, STEERING (SILVER) | MODEL M/N/P

51410-45C40-23W

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BRACKET, REFLECTOR RH | MODEL L/M This part replaces 35956-45C00.

35956-45C01

Unavailable

3

BRACKET, REFLECTOR RH | MODEL N/P

35956-45C01

Unavailable

3

BRACKET, REFLECTOR LH | MODEL L/M This part replaces 35957-45C00.

35957-45C01

Unavailable

3

BRACKET, REFLECTOR LH | MODEL N/P

35957-45C01

Unavailable

4

BOLT, STEM

51328-27C20

Unavailable

5

BEARING

09265-25008

Unavailable

6

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

7

NUT, STEM

51631-28000

$17.37

8

HEAD, STEERING STEM (SILVER) | MODEL L This part replaces 51311-45C40-23S.

51311-45C40-23W

Unavailable

8

HEAD, STEERING STEM (SILVER) | MODEL M/N/P

51311-45C40-23W

Unavailable

9

BOLT This part replaces 07110-08307.

07130-08307

$3.89

10

WASHER

51356-24B01

$5.38

11

NUT

51353-24B00

$30.67

12

HOLDER, HANDLE LOWER

56221-45C00

Unavailable

13

BOLT

56321-28C00

$8.28

14

RUBBER, DAMPER UPPER

56241-45C40

Unavailable

15

RUBBER, DAMPER LOWER

56242-14200

$36.08

16

WASHER This part replaces 51356-40400.

09160-10035

$1.78

17

NUT

08319-31107

$2.73

18

PIN This part replaces 04111-20308.

04111-2030A

$1.50

19

HOLDER, HANDLE (SILVER) | MODEL L/M This part replaces 56211-45C00.

56211-11D10-0FP

Unavailable

20

HOLDER, HANDLE UPPER | MODEL N/P

56211-45C60

Unavailable

21

LOCK WASHER

09164-08015

$3.21

22

BOLT This part replaces 07110-08307.

07130-08307

$3.89

23

CAP

09250-06004

$1.49
