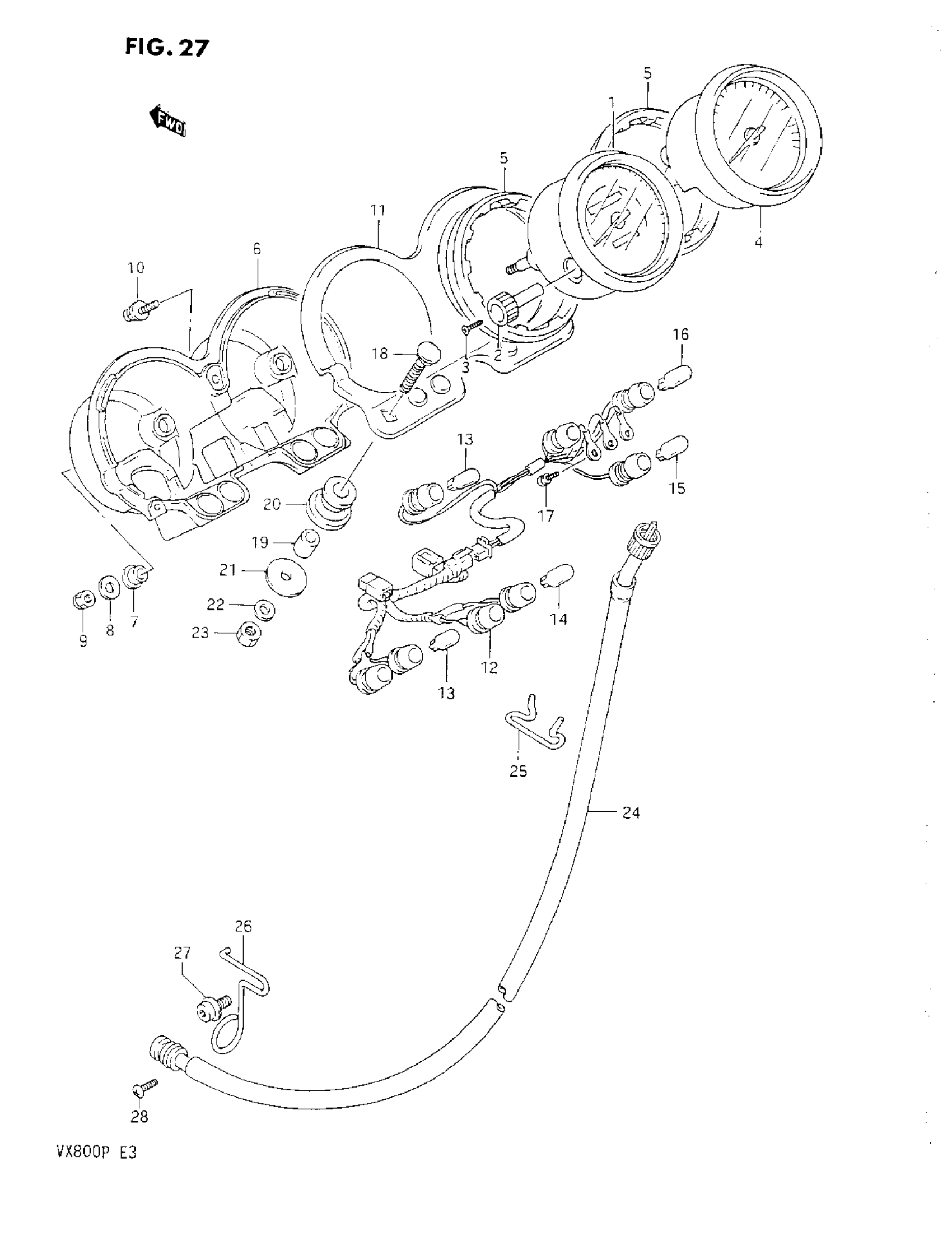

Suzuki VX800 (1993) SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL L/M REMARKS

34110-45C20

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL N/P

34110-45C50

Unavailable

2

KNOB This part replaces 34124-01D20.

34124-30B00

Unavailable

3

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

4

TACHOMETER | MODEL L/M

34210-45C10

Unavailable

4

TACHOMETER | MODEL N/P

34210-45C40

Unavailable

5

DAMPER

34288-01D20

$7.25

6

COVER | MODEL L This part replaces 34193-45C10.

34193-45C10-23W

Unavailable

6

COVER | MODEL M/N/P

34193-45C10-23W

Unavailable

7

CUSHION

34189-01D20

$6.38

8

WASHER This part replaces 34181-45C10.

09160-05013

$1.49

9

NUT This part replaces 08313-11057.

08313-1005A

$1.93

10

SCREW This part replaces 02112-74088.

02112-7408B

$2.34

11

BRACKET, METER

34950-01D30

Unavailable

12

SOCKET

34170-45C10

Unavailable

13

BULB (12V, 3.4W)

09471-12028

$1.99

14

BULB (12V, 1.7W)

09471-12077

$3.55

15

BULB (14V, 3W)

09471-12103

$3.83

16

.BULB (12V1.7W)

09471-12108

$3.42

17

SCREW This part replaces 02112-33106.

02112-3310B

$2.70

18

BOLT (6X36)

09107-06005

Unavailable

19

SPACER (6.5X10X15.70) This part replaces 09180-06209.

09180-06294

$3.35

20

CUSHION

34956-31001

$4.37

21

WASHER This part replaces 09160-06030.

09160-06136

$1.84

22

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

23

NUT This part replaces 08310-12066.

08310-0006A

$1.84

24

CABLE,SPEEDO This part replaces 34910-45C00.

34910-13A02

$61.00

25

CLAMP, SPEEDOMETER

34938-45C11

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 34938-11D00.

34938-11D0V

Unavailable

27

BOLT, BRACE FRONT | MODEL L/M This part replaces 09106-10059.

09103-10195

Unavailable

27

BOLT | MODEL N/P

09103-10195

Unavailable

28

SCREW

02112-05164

$2.63
