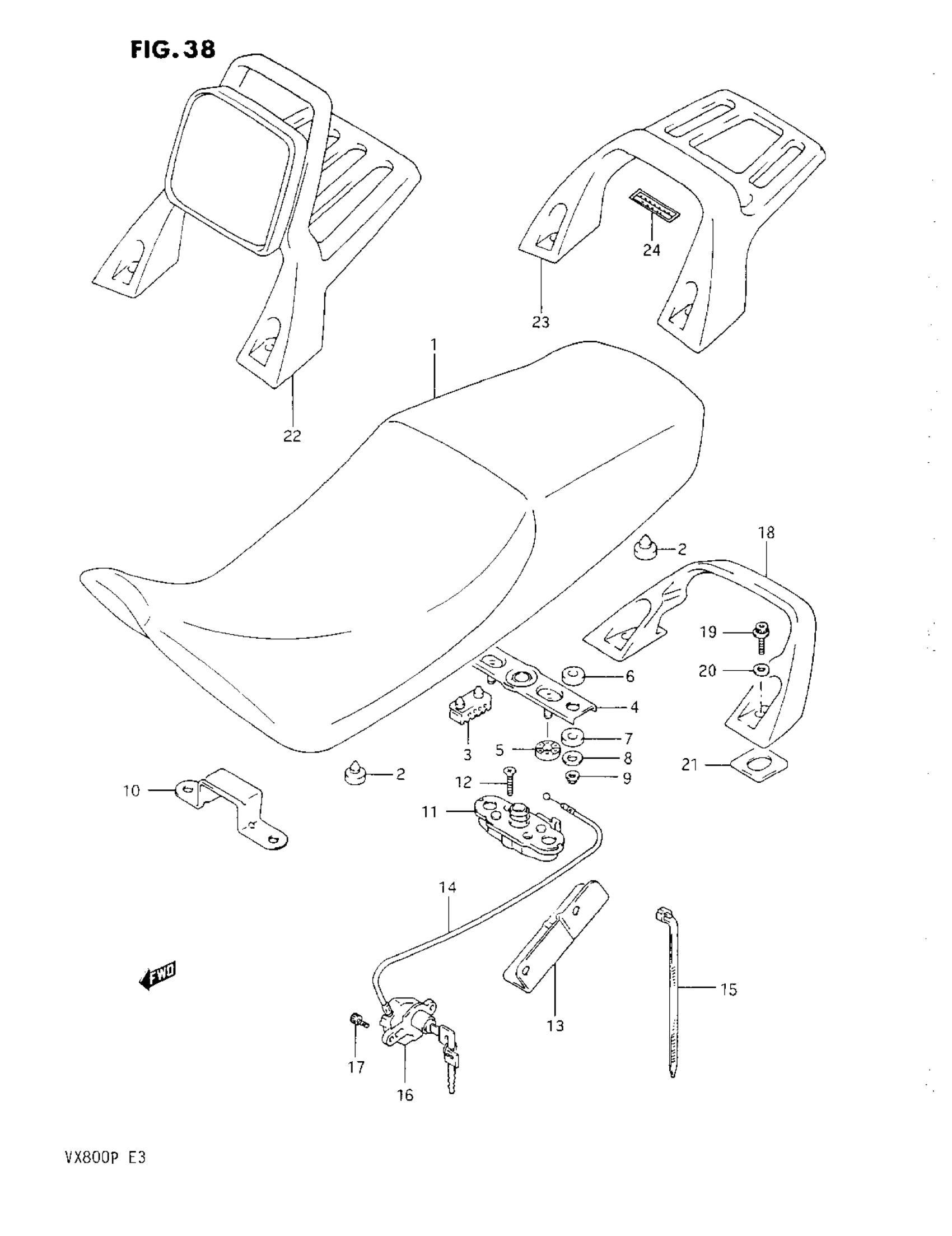

Suzuki VX800 (1993) SEAT Diagram

#

Description
Price

1

SEAT SET (BLACK)

45100-45C20-58R

Unavailable

2

CUSHION This part replaces 09321-10015.

09321-10002

$2.22

3

CUSHION, CENTER

45149-31300

$3.56

4

STRIKER, SEAT LOCK

45215-22A00

$35.20

5

CUSHION, BOSS

45213-13601

$2.79

6

CUSHION, STRIKER UPPER

45126-41B00

$2.38

7

CUSHION, STRIKER LOWER

45127-41B00

$2.38

8

WASHER

08212-06201

$1.67

9

NUT This part replaces 08316-26066.

08316-1006B

$2.50

10

PLATE, FRONT HOOK

45119-45C00

Unavailable

11

BRACKET, SEAT SUPPORT | MODEL L/M/N This part replaces 45220-20A00.

45220-47H00

$138.38

11

BRACKET, SEAT SUPPORT | MODEL P This part replaces 45220-20A01.

45220-47H00

$138.38

12

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

13

PLATE, SEAT LOCK CABLE

45288-45C00

Unavailable

14

CABLE, SEAT LOCK

45280-45C00

Unavailable

15

CLAMP

09407-18402

$2.19

16

CAP SET,SEAT This part replaces 45700-19840.

45700-19841

Unavailable

17

BOLT (6X12) This part replaces 09106-06055.

09106-06075

$2.48

18

HANDLE, PILLION (BLACK) | MODEL L This part replaces 46211-45C01-24D.

46211-45C01-33J

Unavailable

18

HANDLE, PILLION (BLACK) | MODEL L This part replaces 46211-45C01-24V.

46211-45C01-33J

Unavailable

18

HANDLE, PILLION (BLACK) | MODEL M This part replaces 46211-45C01-0FP.

46211-45C01-33J

Unavailable

18

HANDLE, PILLION (RED) | MODEL M

46211-45C01-19A

Unavailable

18

HANDLE, PILLION (BLACK) | MODEL M

46211-45C01-33J

Unavailable

18

HANDLE, PILLION (BLACK) | MODEL N This part replaces 46211-45C01-1HU.

46211-45C01-33J

Unavailable

18

HANDLE, PILLION (MAROON) | MODEL P

46211-45C01-22U

Unavailable

19

BOLT | MODEL L/M/N This part replaces 07120-10255.

07120-1025A

$4.32

19

BOLT, LOWER | MODEL P This part replaces 07130-10308.

07130-10307

$4.41

20

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

21

CUSHION, FRAME COVER

47161-45C00

Unavailable

22

CARRIER SET, SPORT (SILVER) | OPT

46300-45811-23S

Unavailable

23

CARRIER, SPORT (SILVER) | OPT

46300-45821-23S

Unavailable

24

LABEL | OPT

68391-14D00

Unavailable
