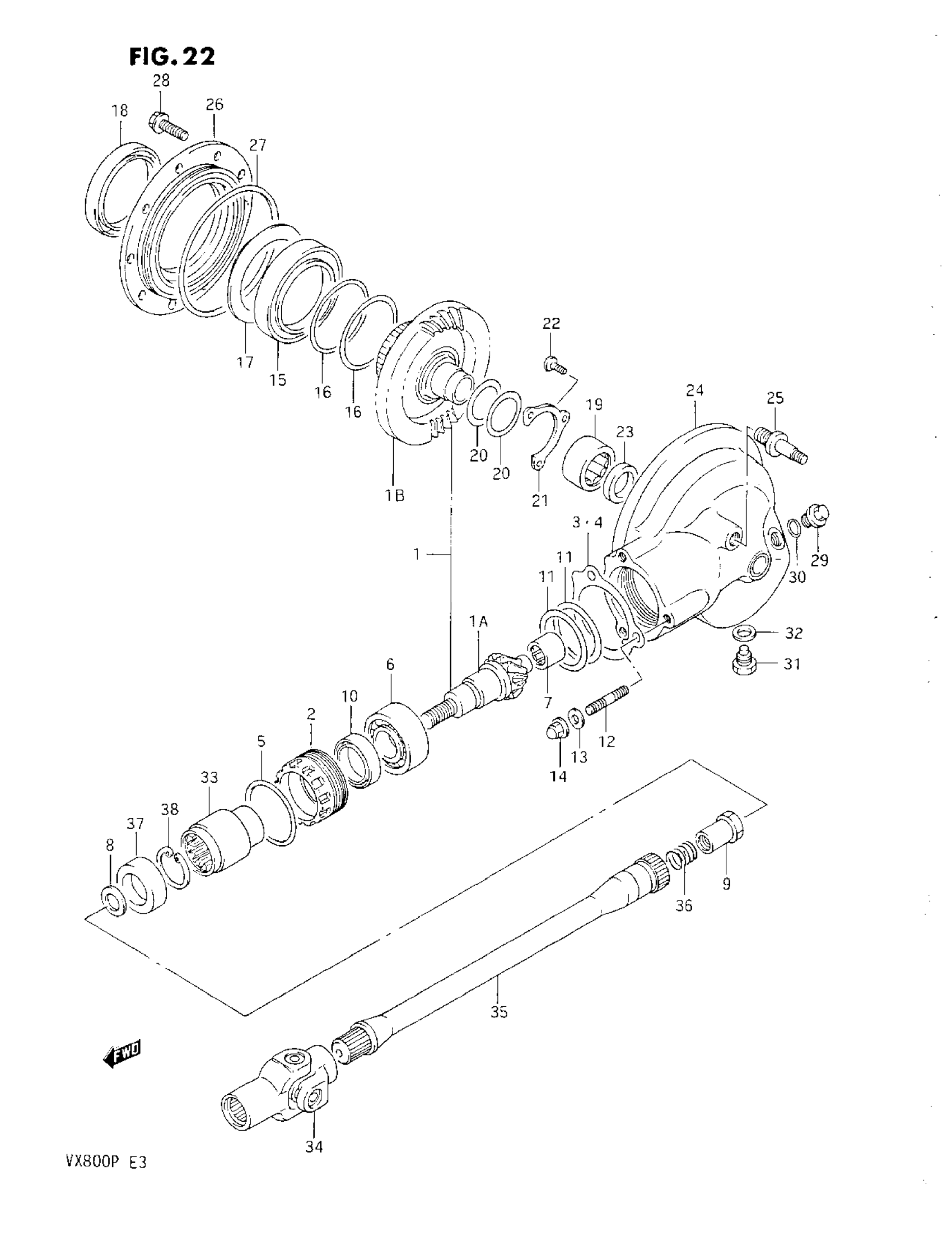

Suzuki VX800 (1993) PROPELLER SHAFT-FINAL DRIVE GEAR Diagram

#

Description
Price

1

GEAR & CASE SET, FINAL BEVEL | MODEL L This part replaces 27300-45842-13L.

27300-45842-23W

Unavailable

1

GEAR & CASE SET, FINAL BEVEL | MODEL M/N/P

27300-45842-23W

Unavailable

1

GEAR, FINAL DRIVE BEVEL (NT:11) This part replaces 27300-45831.

27311-38A00

$297.98

1

GEAR, FINAL DRIVE BEVEL

27311-38A00

$297.98

1

GEAR, FINAL DRIVEN BEVEL

27320-45C01

$463.53

2

STOPPER, BEARING

27312-38A00

$72.73

3

PLATE

27313-45C00

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 27313-45C10.

27313-38A60

Unavailable

5

O-RING (D:1.9, ID:61.6)

09280-62002

$3.29

6

BEARING (30X62X23.8)

09267-30005

$119.55

7

BEARING (17X32X16)

09263-17028

$48.78

8

WASHER (16X29X4)

09160-16029

$6.35

9

NUT

09159-16010

$10.00

10

OIL SEAL (38X54X6)

09283-38009

$17.33

11

SHIM (T:0.30) | 0-2, UN

27445-38A00-030

Unavailable

11

SHIM (T:0.35) | 0-2, UN

27445-38A00-035

Unavailable

11

SHIM (T:0.40) | 0-2, UN

27445-38A00-040

Unavailable

11

SHIM (T:0.50) | 0-2, UN

27445-38A00-050

Unavailable

11

SHIM (T:0.60) | 0-2, UN

27445-38A00-060

Unavailable

12

STUD BOLT

09108-10095

$5.72

13

LOCK WASHER

09164-10008

$1.71

14

NUT | MODEL L/M/N This part replaces 09159-10092.

09159-10026

$6.20

14

NUT | MODEL P

09159-10026

$6.20

15

BEARING, RH

09262-70001

$140.93

16

SHIM (T:0.35) | 0-2, UN

27327-34200

Unavailable

16

SHIM (T:0.40) | 0-2, UN

27327-34210

Unavailable

16

SHIM (T:0.50) | 0-2, UN

27327-34220

Unavailable

16

SHIM (T:0.60) | 0-2, UN

27327-34230

Unavailable

17

PLATE

27328-34200

$7.37

18

OIL SEAL, RH

09289-70001

$51.76

19

BEARING, LH

09263-32007

$81.08

20

SHIM (T:1.05) | 0-2, UN

27326-34201

Unavailable

20

SHIM (T:1.10) | 0-2, UN

27326-34211

Unavailable

20

SHIM (T:1.20) | 0-2, UN

27326-34221

Unavailable

20

SHIM (T:1.25) | 0-2, UN

27326-34231

Unavailable

20

SHIM (T:1.35) | 0-2, UN

27326-34241

Unavailable

20

SHIM (T:1.40) | 0-2, UN

27326-34201-140

Unavailable

20

SHIM (T:1.45) | 0-2, UN

27326-34201-145

Unavailable

20

SHIM (T:1.50) | 0-2, UN

27326-34201-150

Unavailable

21

RETAINER, BEARING

27329-34200

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84

23

OIL SEAL (30X42X7)

09283-30028

$9.60

24

CASE, FINAL GEAR | MODEL L

27450-45C01-13L

Unavailable

24

CASE, FINAL GEAR | MODEL M/N/P

27450-45C01-23W

Unavailable

25

STUD BOLT

27481-45C00

Unavailable

26

CASE, FINAL GEAR BEARING

27460-07A01

Unavailable

27

O-RING (D:3.5, ID:131.6)

09280-00015

$11.03

28

BOLT This part replaces 01517-08258.

01550-08257

$2.81

29

PLUG This part replaces 09247-18007.

09247-18001

$8.83

30

O-RING (D:2.4, ID:17.8)

09280-18004

$5.18

31

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

32

GASKET

09168-14004

$1.83

33

COUPLING, PROPELLER SHAFT

27172-38A00

$53.04

34

YOKE, UNIVERSAL JOINT This part replaces 27100-38A50.

27100-38A60

$348.15

35

SHAFT, PROPELLER

27151-45C01

Unavailable

36

SPRING

09440-18019

$2.82

37

OIL SEAL (28.4X48X15)

09283-30051

$10.49

38

CIRCLIP

09381-40003

$4.64
