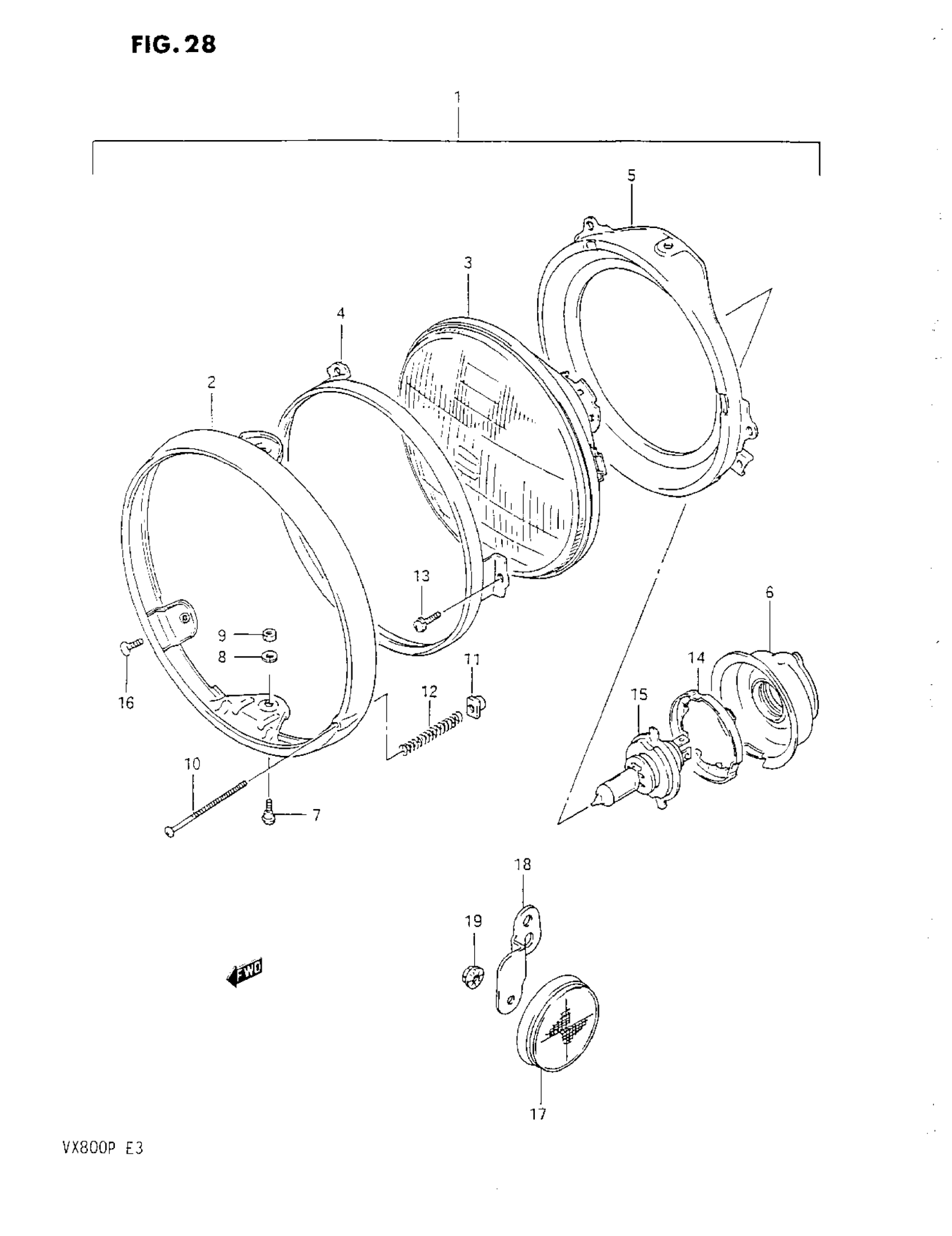

Suzuki VX800 (1993) HEADLAMP (L/M/N) Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-01D30

Unavailable

2

RIM

35111-01D20

$72.93

3

LAMP UNIT

35121-34430

Unavailable

4

RING

35127-45030

Unavailable

5

RING, MOUNTING

35130-45030

Unavailable

6

COVER, SOCKET This part replaces 35173-45000.

35173-20A01

$18.02

7

SCREW

35181-15611

$3.37

8

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

9

NUT This part replaces 08310-11056.

08310-0005A

$1.84

10

SCREW This part replaces 35151-45030.

35151-45900

$3.65

11

NUT

35152-15611

$3.25

12

SPRING

35154-31900

$5.32

13

SCREW This part replaces 02112-04106.

02112-0410A

$1.49

14

SETTER, BULB

35136-34400

Unavailable

15

BULB (12V, 60/55W, H4)

09471-12060

$25.15

16

SCREW This part replaces 02132-05127.

02122-05127

$1.93

17

REFLECTOR, FRONT SIDE

35950-14A00

$16.94

18

BRACKET, REFLECTOR RH | MODEL L/M This part replaces 35956-45C00.

35956-45C01

Unavailable

18

BRACKET, RH | MODEL N

35956-45C01

Unavailable

18

BRACKET, REFLECTOR LH | MODEL L/M This part replaces 35957-45C00.

35957-45C01

Unavailable

18

BRACKET, LH | MODEL N

35957-45C01

Unavailable

19

NUT This part replaces 08316-26055.

08316-2005A

$2.19
