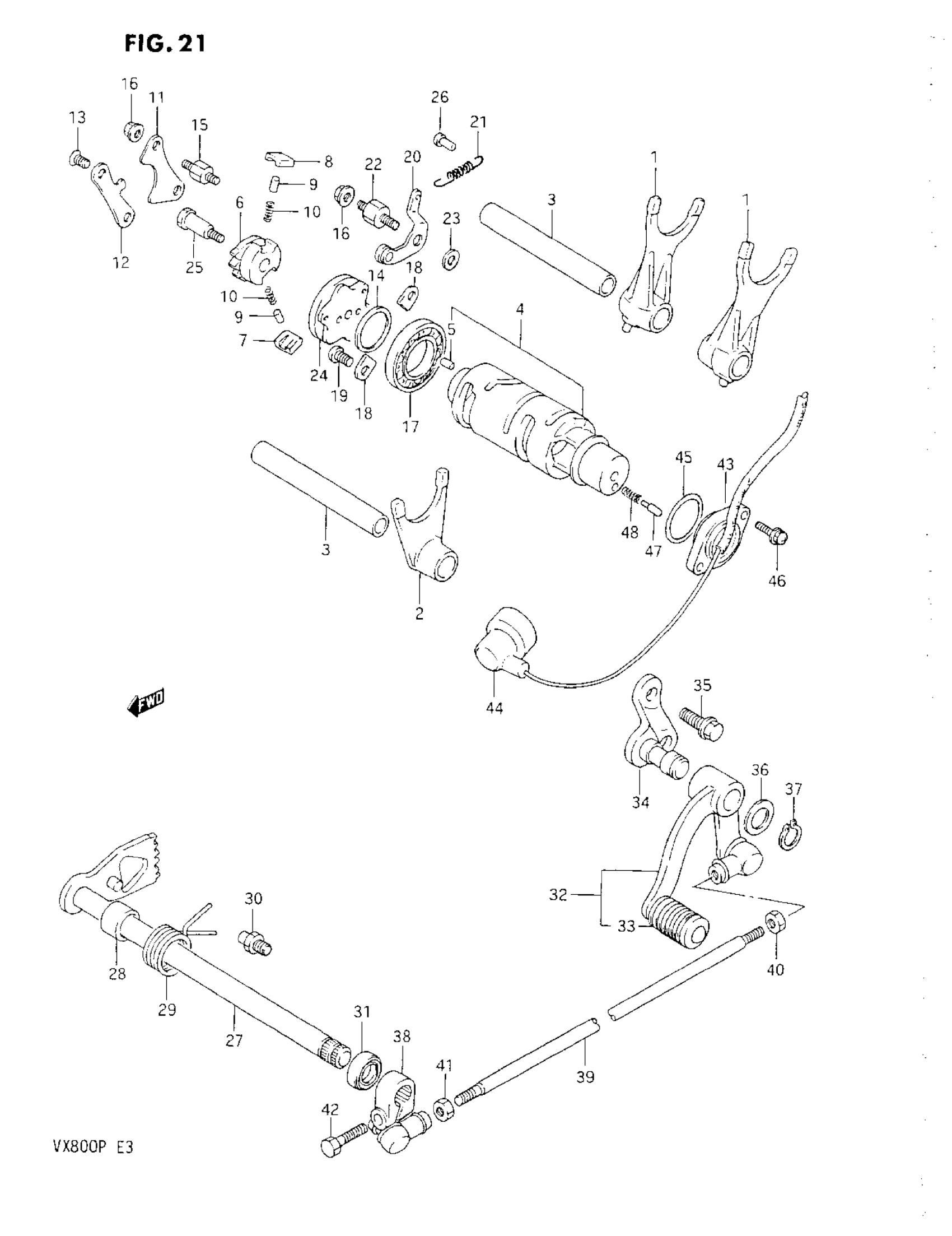

Suzuki VX800 (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38A02

$70.63

2

FORK, GEAR SHIFTING NO.2

25221-38A01

Unavailable

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

$29.25

4

CAM, GEAR SHIFTING

25310-38A03

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, PAWL

25331-38A00

Unavailable

12

GUIDE, CAM

25341-38A00

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

WASHER (25X32X3)

09160-25059

$6.63

15

BOSS

25332-38A00

Unavailable

16

NUT This part replaces 09159-06017.

08319-31067

$2.03

17

BEARING (25X47X8) This part replaces 09262-25002.

09262-25006

$25.54

18

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.81

19

SCREW This part replaces 02112-06128.

02112-06127

$1.84

20

STOPPER, CAM

25350-38A00

Unavailable

21

SPRING

09443-08051

Unavailable

22

SUPPORT

25355-38A00

Unavailable

23

WASHER

08211-06141

$1.59

24

PLATE, STOPPER

25380-38A02

$17.62

25

PIN

25312-38A00

$6.28

26

HOOK

09223-04001

$1.68

27

SHAFT, GEAR SHIFTING

25510-38A00

$107.25

28

SPACER (12X20X15.3)

09180-12068

$3.16

29

SPRING This part replaces 09444-26012.

09444-26013

$3.10

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

NO DESCRIPTION AVAILABLE This part replaces 25600-45C02.

25600-45C03

Unavailable

33

COVER

25652-20C00

$5.44

34

BRACKET, GEAR SHIFT LEVER

25680-45C01

Unavailable

35

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

36

WASHER (12.5X20X1)

09160-12011

$1.54

37

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

38

ARM, GEAR SHIFT LINK

25520-45C00

Unavailable

39

ROD,GEAR SHIFT This part replaces 25525-45C00.

25525-45C10

Unavailable

40

NUT

09140-06011

$1.49

41

.NUT This part replaces 08310-11067.

08310-00067

$2.13

42

BOLT This part replaces 01107-06207.

01500-06207

$2.28

43

BODY, SWITCH

37720-45C00

Unavailable

44

CAP

36618-43410

$2.90

45

O-RING (D:2.4, ID:26.2)

09280-26005

$2.30

46

SCREW This part replaces 02112-75168.

02112-7516A

$2.41

47

CONTACT, SWITCH

09209-05011

$2.20

48

SPRING

09440-04010

$1.54
