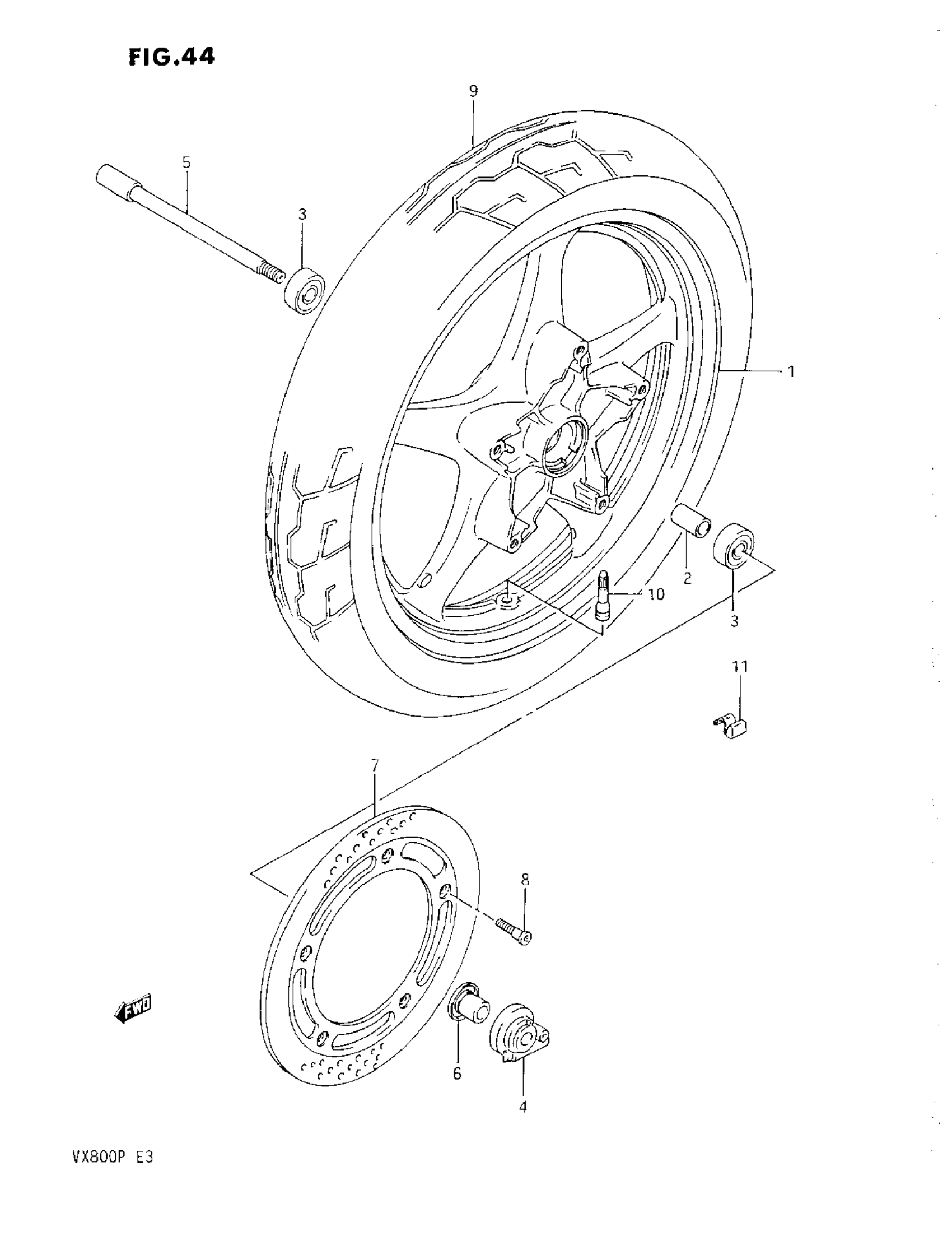

Suzuki VX800 (1993) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 54111-45C10-12Z.

54111-45C11-23W

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 54111-45C10-23W.

54111-45C11-23W

Unavailable

2

SPACER, HUB

09180-15011

$8.18

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

BOX ASSY,SPEEDO This part replaces 54600-45C00.

54600-45C0V

Unavailable

5

AXLE, FRONT This part replaces 54711-45C00.

54711-45C01

$91.01

6

SPACER, AXLE LH

54740-18410

$20.45

7

DISC, FRONT BRAKE LH (SILVER) | MODEL L/M/N

59221-45C00

Unavailable

7

DISC, FRONT BRAKE LH (BLACK) | MODEL P

59221-45C10

Unavailable

8

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.80

9

TIRE, FRONT (110/80-18 58H) METZELLER | MODEL L EXECUTED LOCALLY

55110-45C10

Unavailable

9

TIRE, FRONT (110/80-18 58H) DUNLOP | MODEL M/N/P

55110-45C01

Unavailable

10

VALVE ASSY

43130-24A00

$8.85

11

BALANCER (10G) | 0-3 U.N.

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 | 0-3 U.N. This part replaces 55412-00A00.

55412-17G00

$7.05

11

BALANCER (30G) | 0-3, U.N. This part replaces 55413-00A00.

55413-00A01

Unavailable
