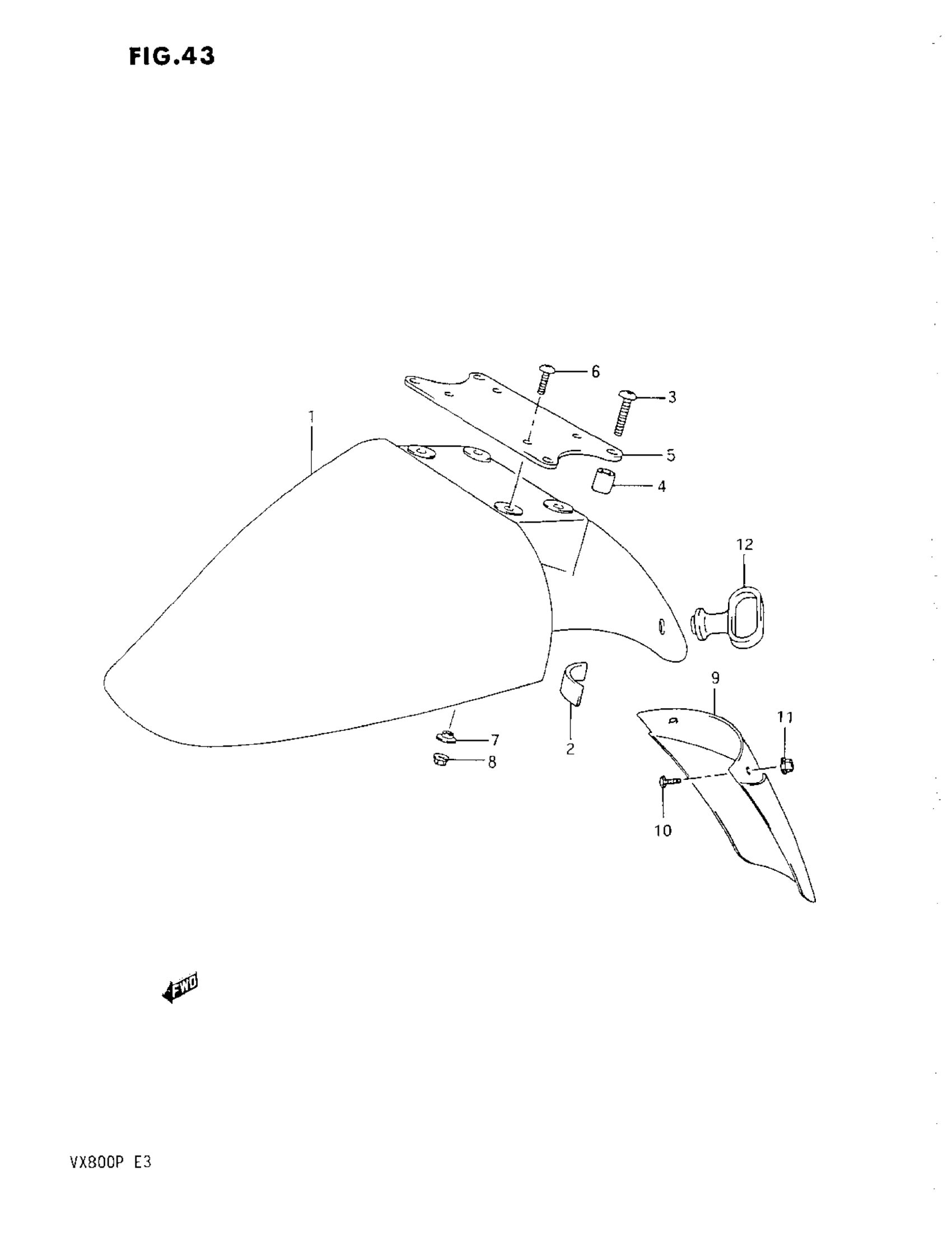

Suzuki VX800 (1993) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (MAROON) | MODEL L <-53111-32C31-24D

53111-32C41-24D

Unavailable

1

FENDER, FRONT (BLACK) | MODEL L <-53111-32C31-24V This part replaces 53111-32C41-24V.

53111-32C41-33J

Unavailable

1

FENDER, FRONT (SILVER) | MODEL M <-53111-32C31-0FP

53111-32C41-0FP

Unavailable

1

FENDER, FRONT (RED) | MODEL M <-53111-32C31-19A

53111-32C41-19A

Unavailable

1

FENDER, FRONT (BLACK) | MODEL M <-53111-32C31-33J

53111-32C41-33J

Unavailable

1

FENDER, FRONT (PURPLE) | MODEL N

53111-32C41-1HU

Unavailable

1

FENDER, FRONT (MAROON) | MODEL P

53111-32C41-22U

Unavailable

2

CUSHION,FR This part replaces 94583-05C00.

46312-31D11

$5.02

3

SCREW, FENDER

09139-06042

$5.55

4

SPACER,6.5X12X1 This part replaces 09180-06227.

09180-06312

Unavailable

5

BRACE, FRONT FENDER

53114-45C01

Unavailable

6

SCREW, BRACE

09139-05042

$2.90

7

WASHER

09169-05009

$2.47

8

NUT This part replaces 08319-31056.

08319-3105B

$3.55

9

EXTENSION, FRONT FENDER

53311-45C10

Unavailable

10

SCREW This part replaces 02142-05128.

02142-05127

$1.97

11

NUT This part replaces 08313-21055.

08313-2005A

$2.42

12

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
