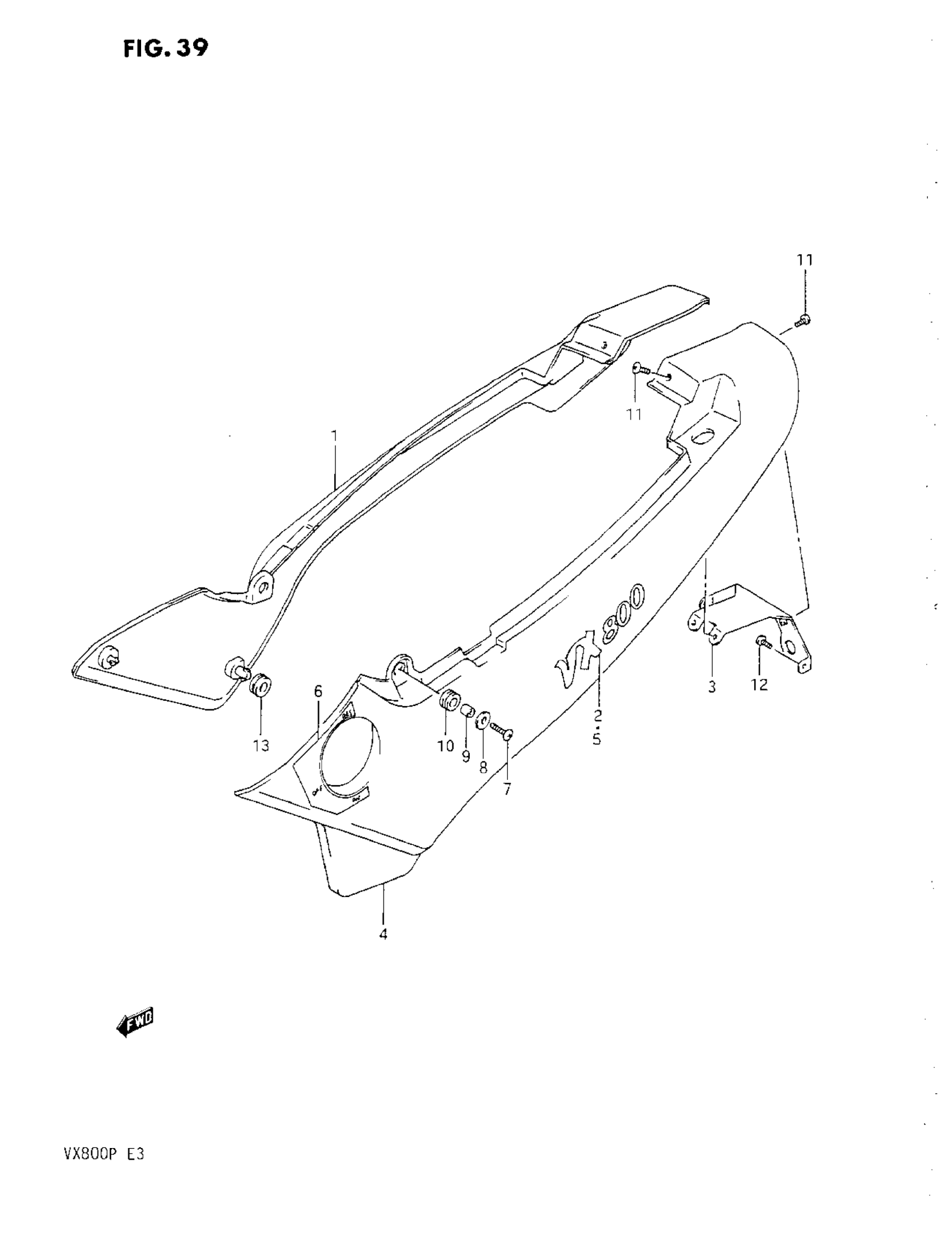

Suzuki VX800 (1993) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R | MODEL L This part replaces 47110-45C20-24D.

47111-45C01

Unavailable

1

COVER,FRAME,R | MODEL L This part replaces 47110-45C20-24V.

47111-45C01

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL M

47110-45C20-0FP

Unavailable

1

COVER, FRAME RH (RED) | MODEL M

47110-45C20-19A

Unavailable

1

COVER,FRAME,R | MODEL M/P This part replaces 47110-45C20-33J.

47111-45C01

Unavailable

1

COVER, FRAME RH (PURPLE) | MODEL N

47110-45C20-1HU

Unavailable

1

COVER, FRAME RH (MAROON) | MODEL P

47110-45C20-22U

Unavailable

2

EMBLEM | MODEL L FOR 24D This part replaces 68131-45C10-B32.

68131-45C10-A6T

Unavailable

2

EMBLEM | MODEL L FOR 24V This part replaces 68131-45C10-B33.

68131-45C10-A6T

Unavailable

2

EMBLEM | MODEL M FOR OFP

68131-45C10-F67

Unavailable

2

EMBLEM | MODEL M FOR 19A

68131-45C10-F66

Unavailable

2

EMBLEM | MODEL M/P FOR 33J

68131-45C10-F68

Unavailable

2

EMBLEM | MODEL N

68131-45C10-L95

Unavailable

2

EMBLEM | MODEL P FOR 22U

68131-45C10-A6T

Unavailable

3

BRACKET, REAR RH

47130-45C00

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47210-45C20-24D.

47211-45C01

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 47210-45C20-24V.

47211-45C01

Unavailable

4

COVER, FRAME LH (SILVER) | MODEL M

47210-45C20-0FP

Unavailable

4

COVER, FRAME LH (RED) | MODEL M

47210-45C20-19A

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47210-45C20-33J.

47211-45C01

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47210-45C70-33J.

47211-45C01

Unavailable

4

COVER, FRAME LH (PURPLE) | MODEL N

47210-45C70-1HU

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47210-45C70-22U.

47211-45C01

Unavailable

5

EMBLEM | MODEL L FOR 24D This part replaces 68131-45C10-B32.

68131-45C10-A6T

Unavailable

5

EMBLEM | MODEL L FOR 24V This part replaces 68131-45C10-B33.

68131-45C10-A6T

Unavailable

5

EMBLEM | MODEL M FOR OFP

68131-45C10-F67

Unavailable

5

EMBLEM | MODEL M FOR 19A

68131-45C10-F66

Unavailable

5

EMBLEM | MODEL M/P FOR 33J

68131-45C10-F68

Unavailable

5

EMBLEM | MODEL N

68131-45C10-L95

Unavailable

5

EMBLEM | MODEL P FOR 22U

68131-45C10-A6T

Unavailable

6

LABEL, FUEL COCK (WHITE) | MODEL L/M

47913-45C00-064

Unavailable

6

LABEL, FUEL COCK (WHITE) | MODEL N/P

47913-45C10-064

Unavailable

7

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

8

WASHER

09160-06056

$1.72

9

SPACER This part replaces 09180-06152.

09180-06262

$2.55

10

CUSHION

09320-09016

$1.97

11

SCREW This part replaces 02142-04105.

02142-0410A

$1.49

12

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

13

CUSHION

09320-08018

$3.04
