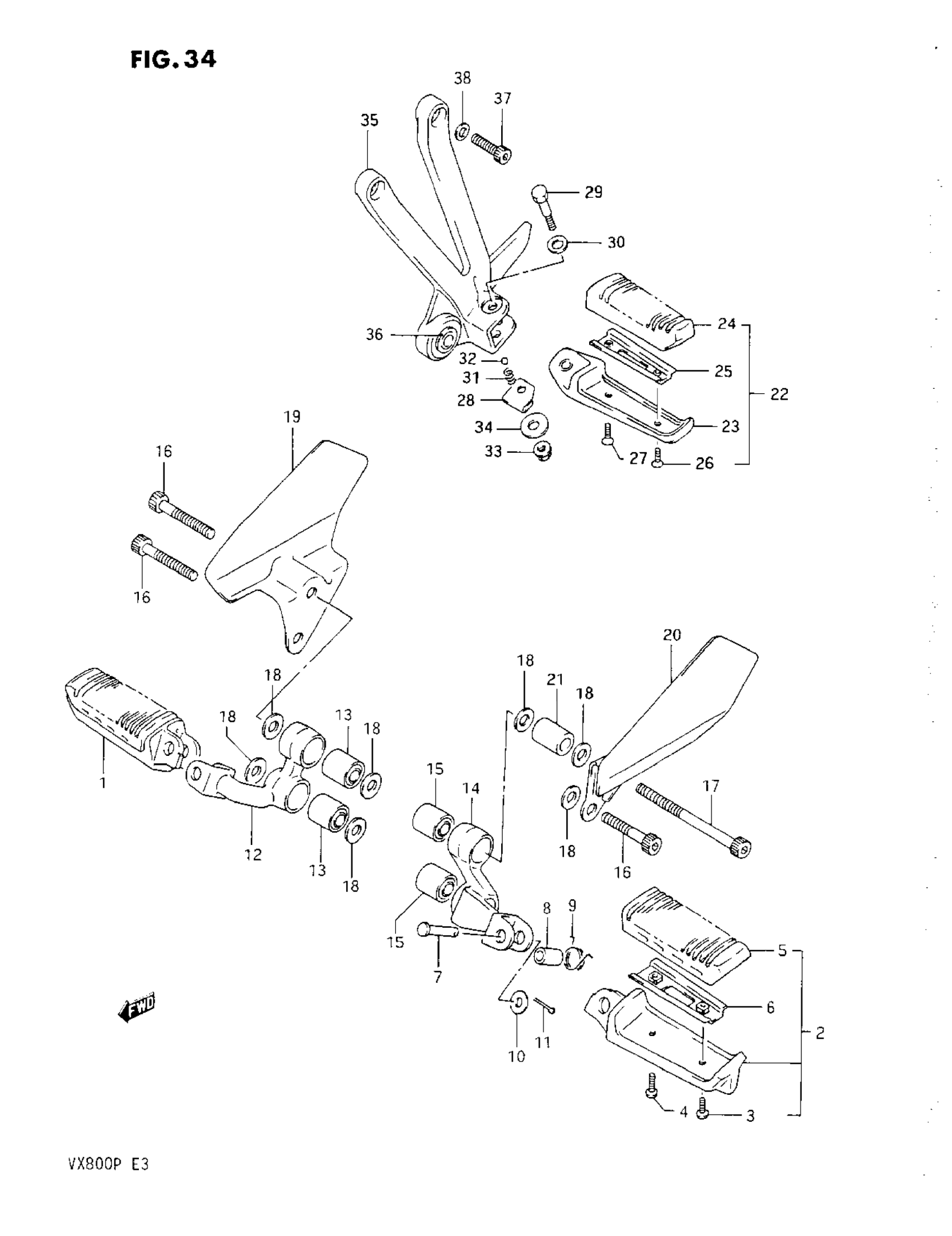

Suzuki VX800 (1993) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-45C00

Unavailable

2

FOOTREST ASSY, FRONT LH

43502-45C00

Unavailable

3

SCREW This part replaces 02112-05128.

02112-05127

$1.97

4

SCREW This part replaces 02112-05168.

02112-05167

$1.97

5

RUBBER,FR FOOTR | MODEL L/M This part replaces 43551-31300.

43550-31300

$25.83

5

RUBBER,FR FOOTR | MODEL N/P This part replaces 43551-31301.

43550-31300

$25.83

6

PLATE, FRONT FOOTREST RUBBER

43580-33301

Unavailable

7

PIN

09200-08057

$2.36

8

SPACER

09180-08149

$5.58

9

SPRING

09448-18022

$3.79

10

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

HOLDER, FOOTREST RH

43530-45C00

Unavailable

13

BUSH

09319-10047

$9.50

14

HOLDER, FOOTREST LH

43540-45C00

Unavailable

15

BUSH

09319-10047

$9.50

16

NO DESCRIPTION AVAILABLE This part replaces 07110-10457.

07130-10457

Unavailable

16

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 09106-10060.

09106-10056

Unavailable

17

BOLT, LH

07110-10707

Unavailable

17

BOLT, LH | CALIFORNIA ONLY

09106-10058

Unavailable

18

WASHER

09160-10039

$2.26

19

FOOT GUARD, RH | MODEL L/M/N This part replaces 43560-45C00.

43560-45C10

Unavailable

19

FOOT GUARD, RH | MODEL P

43560-45C10

Unavailable

20

FOOT GUARD, LH | MODEL L/M/N This part replaces 43570-45C01.

43570-45C10

Unavailable

20

FOOT GUARD, LH | MODEL P

43570-45C10

Unavailable

21

SPACER, LH

43597-45C01

Unavailable

22

FOOTREST ASSY, PILLION RH

43600-45C00

Unavailable

22

FOOTREST ASSY, PILLION LH

43700-45C00

Unavailable

23

FOOTREST ASSY, PILLION RH This part replaces 43610-45C00.

43600-45C00

Unavailable

23

FOOTREST ASSY, PILLION LH This part replaces 43710-45C00.

43700-45C00

Unavailable

24

RUBBER, PILLION FOOTREST

43612-31300

$13.05

25

PLATE, RUBBER STOP

43632-45501

$3.70

26

SCREW This part replaces 02132-05127.

02122-05127

$1.93

27

SCREW This part replaces 02132-05167.

02122-05167

$2.47

28

PLATE, SPRING STOP RH

43635-45C00

Unavailable

28

PLATE, SPRING STOP LH

43735-45C00

Unavailable

29

BOLT

09111-06048

Unavailable

30

SHIM

09181-08004

Unavailable

31

SPRING

09440-05028

Unavailable

32

STEEL BALL

06111-08003

$1.49

33

NUT

08319-31067

$2.03

34

WASHER This part replaces 08322-11088.

08322-01087

$2.13

35

BRACKET, PILLION RH

43801-45C00

Unavailable

35

BRACKET, PILLION LH

43802-45C00

Unavailable

36

BUSH

09319-10033

$6.83

37

BOLT This part replaces 07110-08257.

07130-08257

$3.43

38

WASHER

09164-08015

$3.21
