1993 Suzuki VX800 Cylinder Head Diagram

← All diagrams

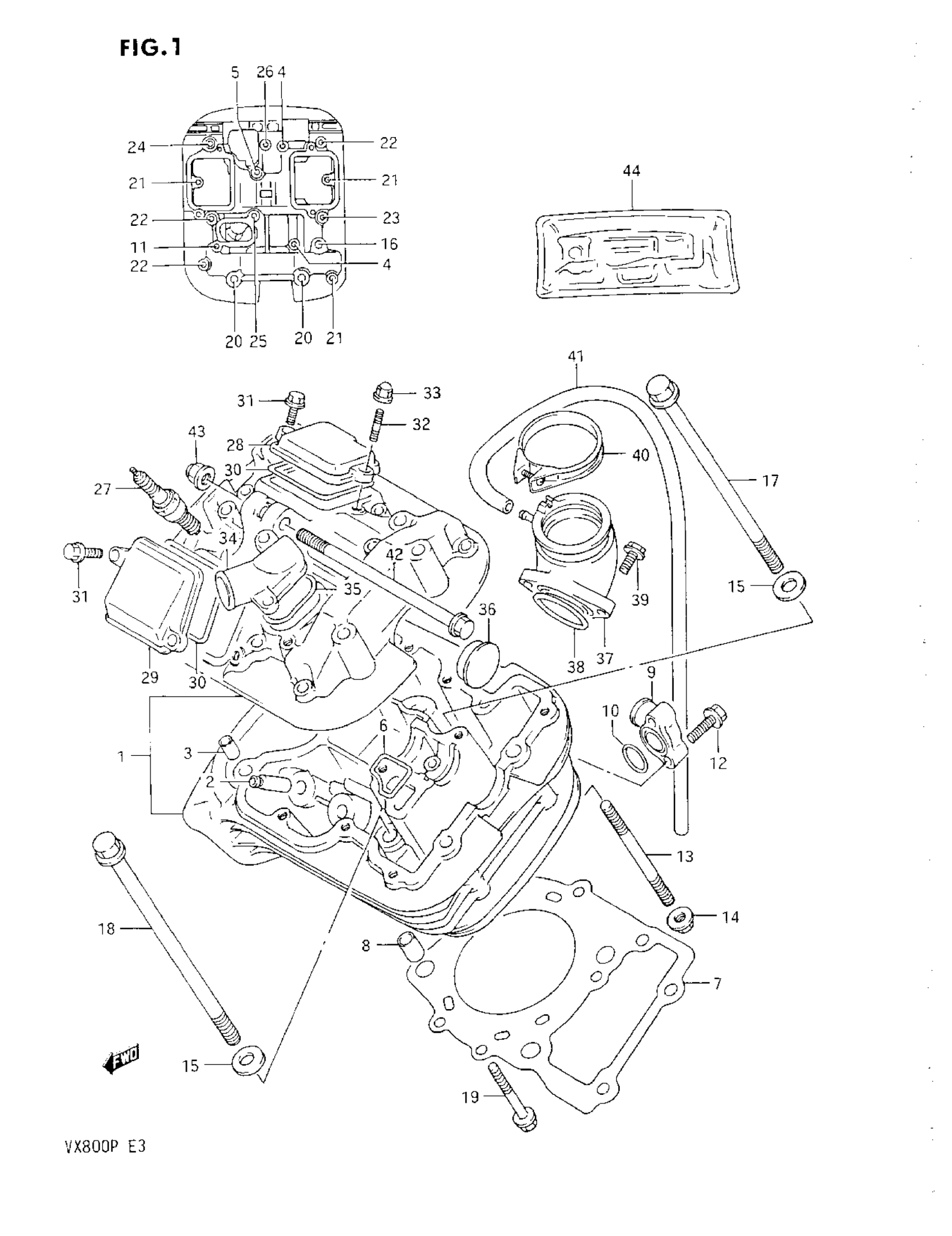

Find the part on the Cylinder Head diagram for your 1993 Suzuki VX800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VX800 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT

11101-45C00

1
Out of stock

2

GUIDE, VALVE (OS 0.3) This part replaces 11115-38A71.

11115-41F70

4
Out of stock

3

PIN (11X14) This part replaces 09206-11011.

09206-11004

2
Out of stock

4

BOLT (6X50)

09103-06101

2
Out of stock

5

BOLT (6X55)

09103-06102

1
Out of stock

6

O-RING, CYLINDER HEAD COVER

11123-38A00

1
Out of stock

7

GASKET, CYLINDER HEAD FRONT

11141-45C00

1
Out of stock

8

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

9

UNION, CYLINDER HEAD WATER | MODEL L/M/N This part replaces 11169-45C00.

11169-45C10

1
Out of stock

9

UNION, CYLINDER HEAD WATER | MODEL P

11169-45C10

1
Out of stock

10

O-RING

09280-18004

1

$5.01

In stock

11

BOLT This part replaces 01517-06207.

01550-06207

1
Out of stock

12

BOLT

01547-06257

2
Out of stock

13

STUD BOLT (L:40)

09108-08144

1
Out of stock

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

1
Out of stock

15

WASHER

09160-10039

4
Out of stock

16

BOLT (8X140)

09103-08040

1
Out of stock

17

BOLT (10X155)

09103-10133

2
Out of stock

18

BOLT (10X165)

09103-10134

2
Out of stock

19

BOLT This part replaces 01517-06408.

01550-06407

2
Out of stock

20

NO DESCRIPTION AVAILABLE This part replaces 09103-08246.

09103-08501

2
Out of stock

21

BOLT This part replaces 01517-06257.

01550-06257

3
Out of stock

22

BOLT This part replaces 01517-06307.

01550-06307

3
Out of stock

23

BOLT This part replaces 07120-06308.

07120-06307

1
Out of stock

24

BOLT This part replaces 01517-06408.

01550-06407

1
Out of stock

25

BOLT (6X55)

09103-06102

1
Out of stock

26

BOLT (6X50)

09103-06101

1
Out of stock

27

SPARK PLUG (NGK, DPR8EA-9)

09482-00334

1
Out of stock

27

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

1
Out of stock

27

SPARK PLUG (NGK, DPR7EA-9) | OPT

09482-00354

1
Out of stock

27

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355-111.

09482-00354

1
Out of stock

27

SPARK PLUG (NGK, DPR9EA-9) | OPT

09482-00330

1
Out of stock

27

SPARK PLUG (DENSO,X27EPR-U9) | OPT SPARK PLUG GAP: 031-.035"/.8-.9 MM This part replaces 09482-00331-111.

09482-00331

1
Out of stock

28

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11175-45C00.

11175-45C01

1
Out of stock

28

CAP, INSPECTION INTAKE | MODEL P This part replaces 11175-38A10.

11175-38A11

1
Out of stock

29

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 11176-45C00.

11176-45C01

1
Out of stock

29

CAP, INSPECTION EXHAUST | MODEL P This part replaces 11176-38A10.

11176-38A11

1
Out of stock

30

O-RING, INSPECTION CAP

11177-38A00

2
Out of stock

31

BOLT

01547-06207

3
Out of stock

32

1

$2.05

In stock

33

NUT This part replaces 08313-21067.

08313-20067

1
Out of stock

34

UNION, CYLINDER HEAD OUTLET | MODEL L/M/N This part replaces 11181-45C00.

11181-45C10

1
Out of stock

34

UNION, WATER OUTLET | MODEL P

11181-45C10

1
Out of stock

35

O-RING, WATER UNION

11182-38A00

1
Out of stock

36

PLUG, CYLINDER HEAD

09241-30004

1
Out of stock

37

1

$69.99

In stock

38

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

1
Out of stock

39

BOLT This part replaces 01517-06164.

01550-0616A

2
Out of stock

40

CLAMP, INTAKE PIPE This part replaces 13170-05A00.

09402-52501

1
Out of stock

41

HOSE(5X9X2000) | L:1000->730 This part replaces 09352-50903-00A.

09352-50006-00B

1
Out of stock

42

BOLT (8X150)

09103-08268

1
Out of stock

43

NUT This part replaces 09159-08064.

09159-08049

1
Out of stock

44

GASKET SET | MODEL L OPT This part replaces 11402-45810.

11402-45818

1
Out of stock

44

GASKET SET | MODEL M/N/P OPT This part replaces 11402-45811.

11402-45818

1
Out of stock
