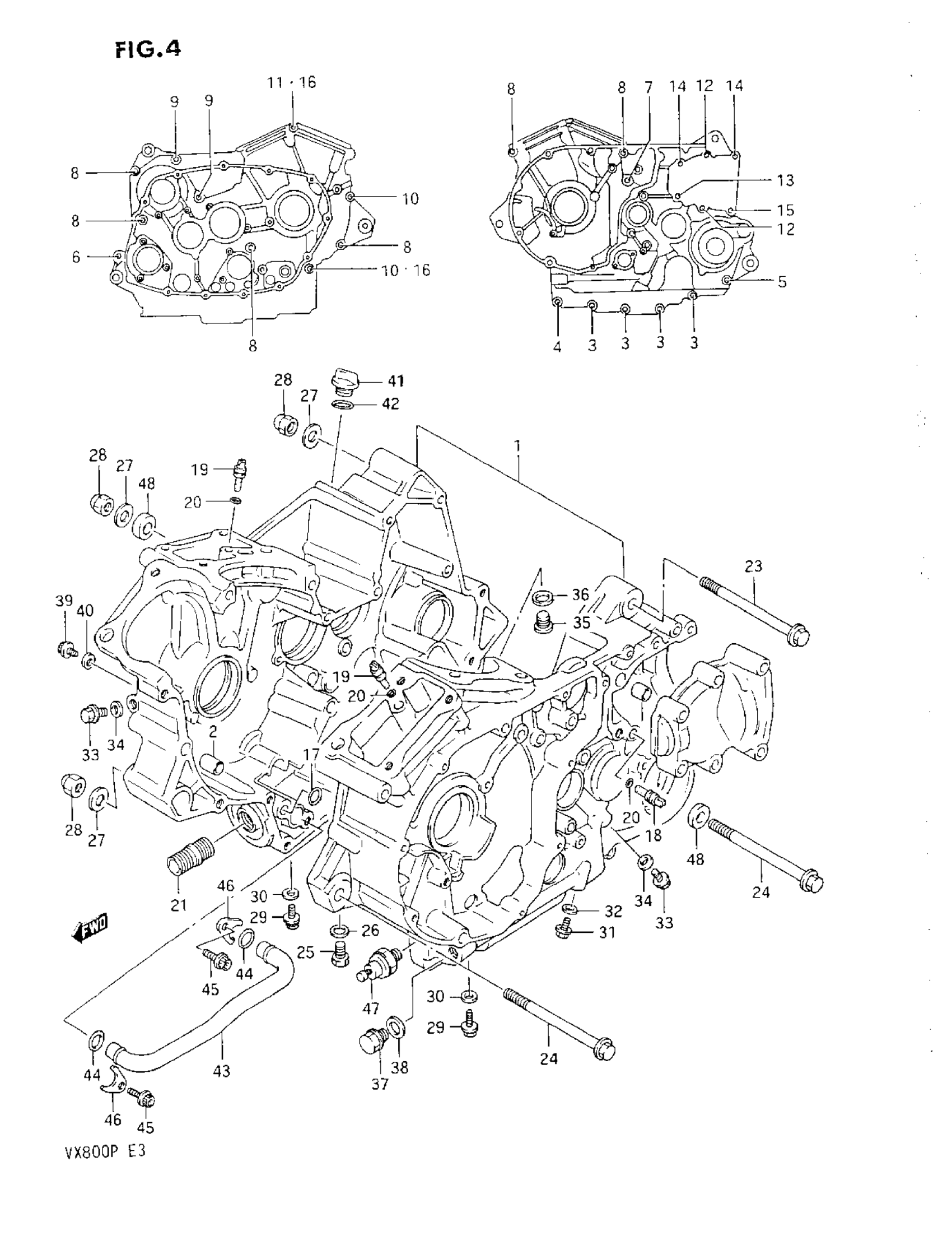

Suzuki VX800 (1993) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11300-45861.

11300-45890

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

3

BOLT This part replaces 01517-06408.

01550-06407

$2.73

4

BOLT This part replaces 01517-08357.

01550-08357

$3.19

5

BOLT This part replaces 01517-08558.

01550-08557

$3.25

6

BOLT This part replaces 01517-08608.

01550-08607

$3.44

7

BOLT This part replaces 01517-08758.

01550-08757

$5.10

8

BOLT This part replaces 01517-08958.

01550-08957

$5.83

9

BOLT (8X120)

09103-08109

$2.92

10

BOLT (8X105)

09103-08097

$3.15

11

BOLT (8X160) This part replaces 09103-08096.

09103-08110

$11.20

12

BOLT This part replaces 01517-08407.

01550-08407

$2.63

13

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

$2.63

14

BOLT This part replaces 01517-08558.

01550-08557

$3.25

15

BOLT This part replaces 01517-08658.

01550-08657

$5.10

16

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

17

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$2.87

18

JET,T/M OIL GALLERY

09493-20014

$18.33

19

JET, OIL GALLERY

09493-28010

$18.00

20

O-RING

09280-04004

$1.76

21

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

23

BOLT (10X130)

09103-10237

$10.53

24

BOLT (10X170)

09103-10224

Unavailable

25

BOLT This part replaces 01107-12208.

01500-1220B

$4.35

26

GASKET

09168-12002

$1.59

27

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.83

28

NUT

09159-10052

$9.08

29

BOLT This part replaces 01517-08128.

01550-08127

$2.15

30

GASKET

09168-08015

$2.77

31

PLUG, OIL GALLERY

09247-10008

$1.97

32

GASKET

09168-10002

$1.96

33

BOLT This part replaces 01517-06108.

01550-06107

$3.05

34

WASHER

09168-06023

$2.01

35

PLUG, OIL GALLERY

09248-16008

$6.22

36

GASKET

09168-16002

$1.89

37

PLUG This part replaces 09247-14012.

09247-14026

$3.38

38

GASKET

09168-14004

$1.69

39

PLUG, OIL GALLERY

07120-08127

Unavailable

40

GASKET

09168-08015

$2.77

41

PLUG, OIL FILLER This part replaces 09259-20017.

09259-20007

$6.89

42

O-RING

09280-17003

$1.64

43

PIPE, OIL GALLERY

11451-38A00

Unavailable

44

O-RING

09280-15008

$2.35

45

BOLT, OIL GALLERY This part replaces 07120-06128.

07120-06127

$4.18

46

CLAMP

11461-38A00

Unavailable

47

SWITCH ASSY,OIL PRESSURE | MODEL L/M/N This part replaces 37820-33200.

37820-33D11

$27.58

47

SWITCH ASSY,OIL PRESSURE | MODEL P This part replaces 37820-33D00.

37820-33D11

$27.58

48

SPACER, ENGINE MOUNTING

41932-45C00

Unavailable
