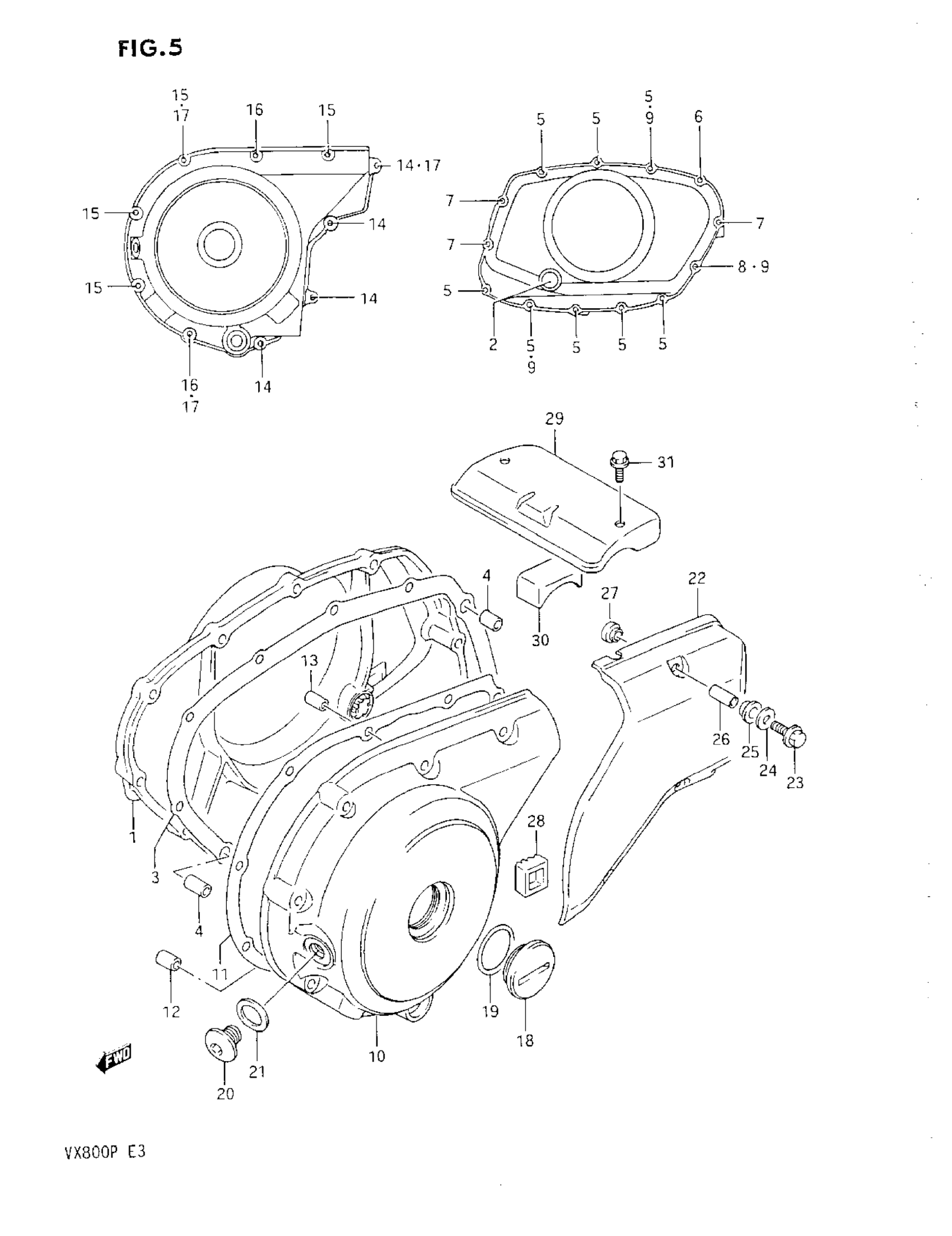

Suzuki VX800 (1993) CRANKCASE COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11340-45C01.

11340-45C10

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER | MODEL L This part replaces 11482-38A00.

11482-41F00

$17.14

3

GASKET, CLUTCH COVER | MODEL M/N/P This part replaces 11482-38A00-H17.

11482-41F00

$17.14

4

PIN

04211-09189

$1.65

5

BOLT

01547-06307

$2.03

6

BOLT

01547-06357

$2.03

7

BOLT

01547-06457

$2.32

8

BOLT

01547-06607

$3.18

9

GASKET

09168-06023

$2.35

10

NO DESCRIPTION AVAILABLE This part replaces 11351-38A10.

11351-38A11

Unavailable

11

GASKET, GENERATOR COVER | MODEL L This part replaces 11483-38A00.

11483-41F00

$14.20

11

GASKET, GENERATOR COVER | MODEL M/N/P This part replaces 11483-38A00-H17.

11483-41F00

$14.20

12

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

13

PIN

04211-09189

$1.65

14

BOLT

01547-06307

$2.03

15

BOLT

01547-06407

$2.32

16

BOLT

01547-06507

$2.41

17

GASKET

09168-06023

$2.35

18

PLUG, SHAFT HOLE This part replaces 09259-36014.

09259-36016-20H

$13.80

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

20

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

21

GASKET

09168-14004

$1.83

22

COVER, SECONDARY DRIVE This part replaces 11361-45C00.

11361-38A50

Unavailable

23

BOLT

01547-06457

$2.32

24

WASHER This part replaces 09160-06097.

09160-06125

$1.91

25

CUSHION, OUTER

09161-09006

$2.36

26

SPACER, LICENSE LAMP This part replaces 09180-06160.

09180-06278

$4.52

27

CUSHION, INNER

09161-09005

$2.36

28

DAMPER, SECONDARY COVER

11369-38A00

Unavailable

29

COVER, STARTER MOTOR This part replaces 31210-38A00.

31210-38A01

Unavailable

30

DAMPER

31212-38A00

Unavailable

31

BOLT

01547-05087

$1.72
