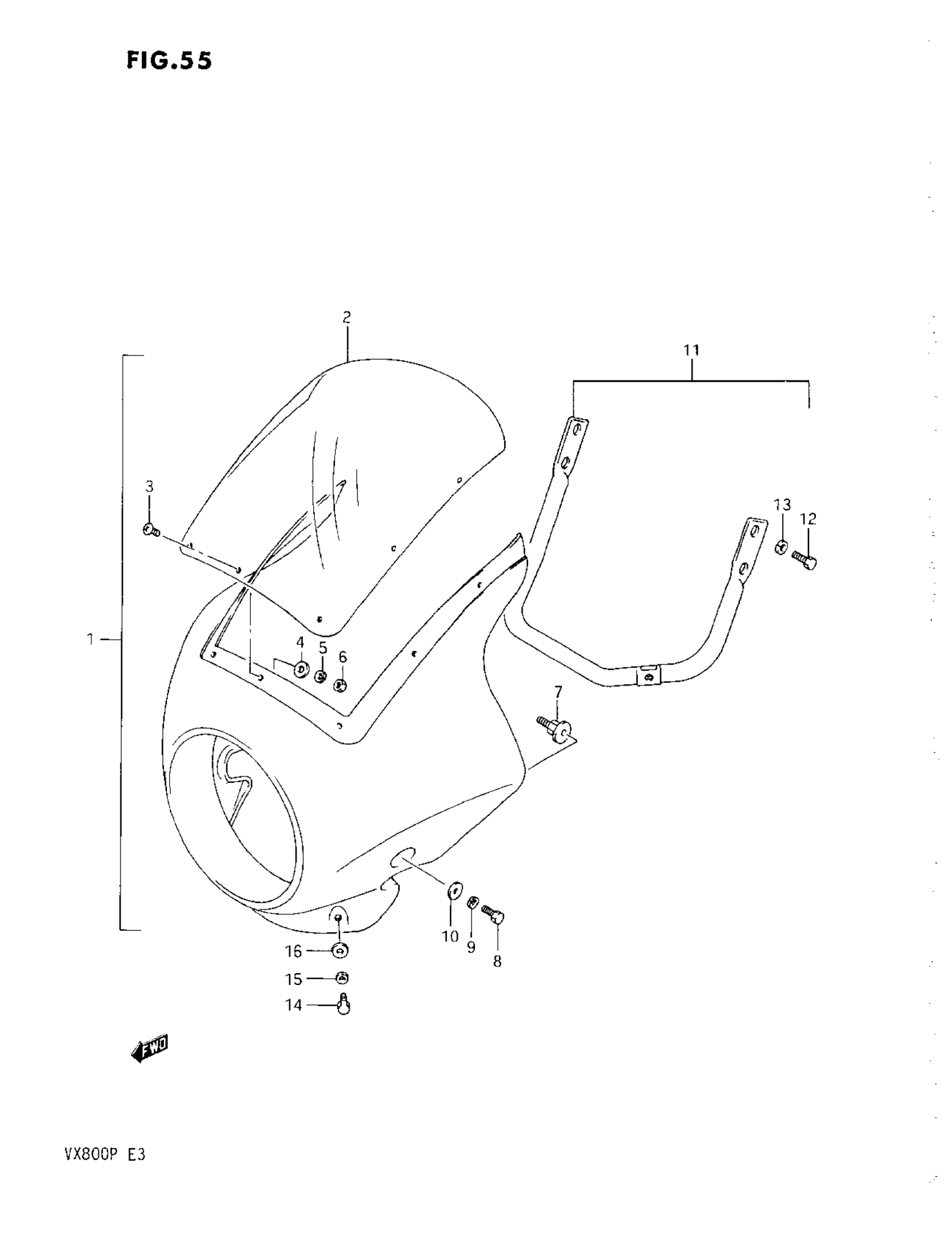

Suzuki VX800 (1993) COWLING (OPTIONAL) Diagram

#

Description
Price

1

COWLING ASSY (BLUE) | MODEL L

94402-45C50-24D

Unavailable

1

COWLING ASSY (MAROON) | MODEL L

94402-45C50-24V

Unavailable

1

COWLING ASSY (SILVER) | MODEL M

94402-45C50-0FP

Unavailable

1

COWLING ASSY (RED) | MODEL M

94402-45C50-19A

Unavailable

1

COWLING ASSY (BLACK) | MODEL M/P

94402-45C50-33J

Unavailable

1

COWLING ASSY (PURPLE) | MODEL N

94402-45C50-1HU

Unavailable

1

COWLING ASSY (MAROON) | MODEL P

94402-45C50-22U

Unavailable

2

SCREEN, WIND

94432-45C50

Unavailable

3

SCREW This part replaces 02142-04105.

02142-0410A

$1.49

4

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

5

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

6

NUT This part replaces 08310-11045.

08310-0004A

$2.30

7

BOLT, HEAD LAMP

94741-01D50

Unavailable

8

BOLT

01204-06167

$1.98

9

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

BRACE, COWLING

94510-01D50

Unavailable

12

BOLT, BRACE

01204-06167

$1.98

13

WASHER This part replaces 08322-21067.

08322-01067

$2.13

14

BOLT

01204-06127

$2.07

15

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

16

WASHER This part replaces 08322-21067.

08322-01067

$2.13
