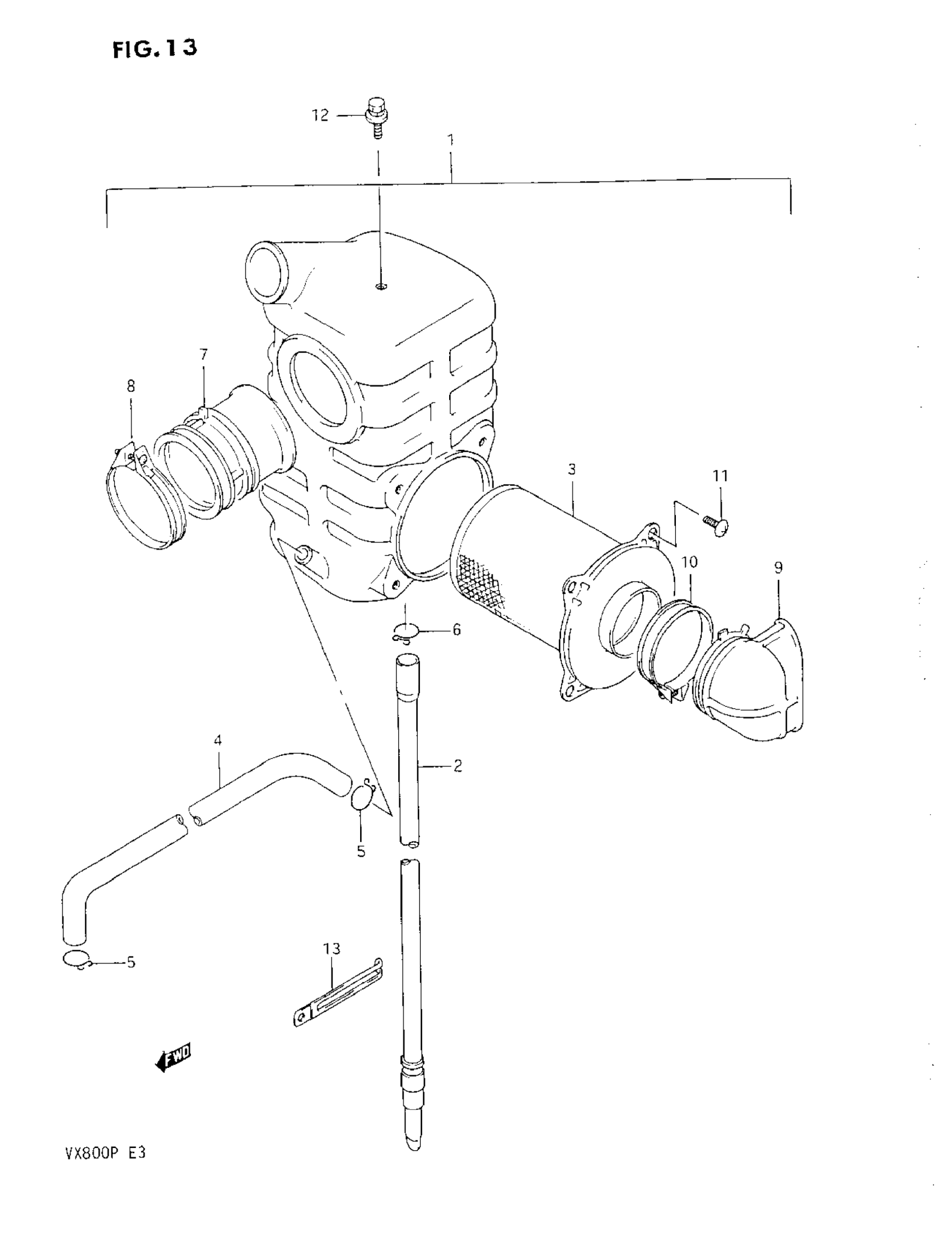

Suzuki VX800 (1993) AIR CLEANER (REAR) Diagram

#

Description
Price

1

CLEANER ASSY, AIR REAR

13700-45C60

Unavailable

2

TUBE,DRAIN This part replaces 13870-11294.

13870-11459

$15.51

3

FILTER ASSY, AIR

13780-45C10

Unavailable

4

TUBE, BREATHER

13853-45C50

Unavailable

5

CLIP

09401-14301

$2.35

6

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

7

TUBE, OUTLET

13881-45C50

Unavailable

8

CLAMP

09402-58208

$5.36

9

TUBE, INLET

13891-45C00

Unavailable

10

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

11

SCREW

02142-05087

$1.49

12

BOLT This part replaces 01177-06125.

01580-0612A

$2.32

13

CLAMP This part replaces 09404-10404.

09404-10417

$2.72
