TRACK SUSPENSION 1

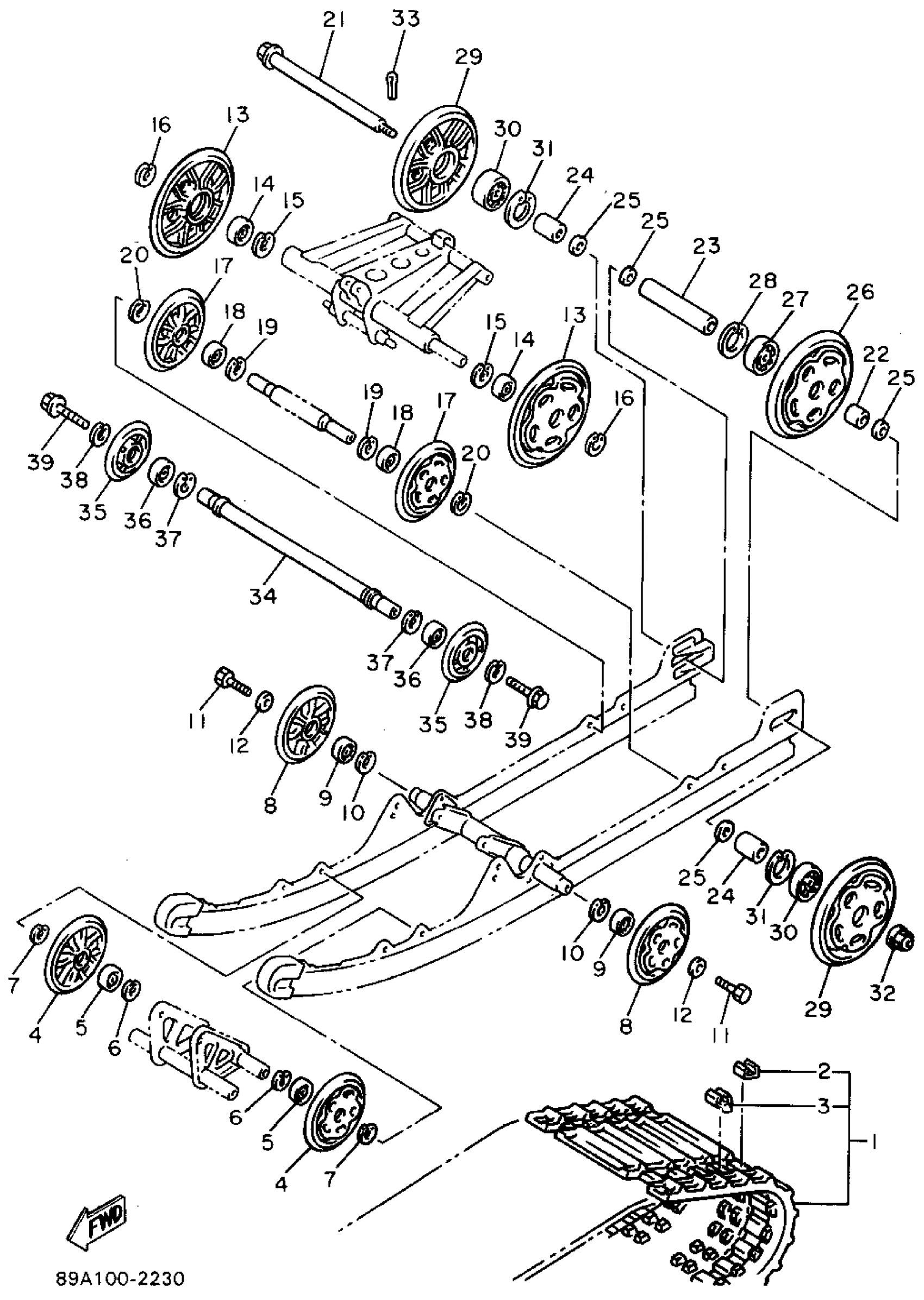

Yamaha VX750U (VMAX-4) 1994 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8EA-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
89A-47115-01-00
Unavailable
4
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
5
BEARING(8AB)
93306-00444-00
$41.99
6
CIRCLIP(5U8)
99009-42500-00
$8.49
7
CIRCLIP(1AR)
99009-20400-00
$8.49
8
SUSPENSION WHEEL COMP.
87U-47320-00-00
Unavailable
9
BEARING(8AB)
93306-00444-00
$41.99
10
CIRCLIP(5U8)
99009-42500-00
$8.49
11
BOLT (8K2)
90109-08559-00
$8.49
12
WASHER (8G1)
90201-08681-00
$7.49
13
SUSPENSION WHEEL COMP.
88R-47320-00-00
Unavailable
14
BEARING(8AB)
93306-00444-00
$41.99
15
CIRCLIP(5U8)
99009-42500-00
$8.49
16
CIRCLIP(1AR)
99009-20400-00
$8.49
17
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
18
BEARING(8AB)
93306-00444-00
$41.99
19
CIRCLIP(5U8)
99009-42500-00
$8.49
20
CIRCLIP(1AR)
99009-20400-00
$8.49
21
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
22
COLLAR
90387-204R3-00
Unavailable
23
COLLAR
90387-20023-00
Unavailable
24
COLLAR
90387-20022-00
Unavailable
25
WASHER, PLATE (888)
90201-20279-00
Unavailable
26
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
27
BEARING(8AE)
93306-20469-00
Unavailable
28
CIRCLIP(48Y)
99009-47500-00
Unavailable
29
GUIDE WHEEL COMP.
8M6-47530-00-00
Unavailable
30
BEARING(8AE)
93306-20469-00
Unavailable
31
CIRCLIP(48Y)
99009-47500-00
Unavailable
32
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
33
PIN, COTTER
91490-30030-00
Unavailable
34
IDLER
89A-47461-01-00
Unavailable
35
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
36
BEARING(8AB)
93306-00444-00
$41.99
37
CIRCLIP(5U8)
99009-42500-00
$8.49
38
CIRCLIP(1AR)
99009-20400-00
$8.49
39
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
