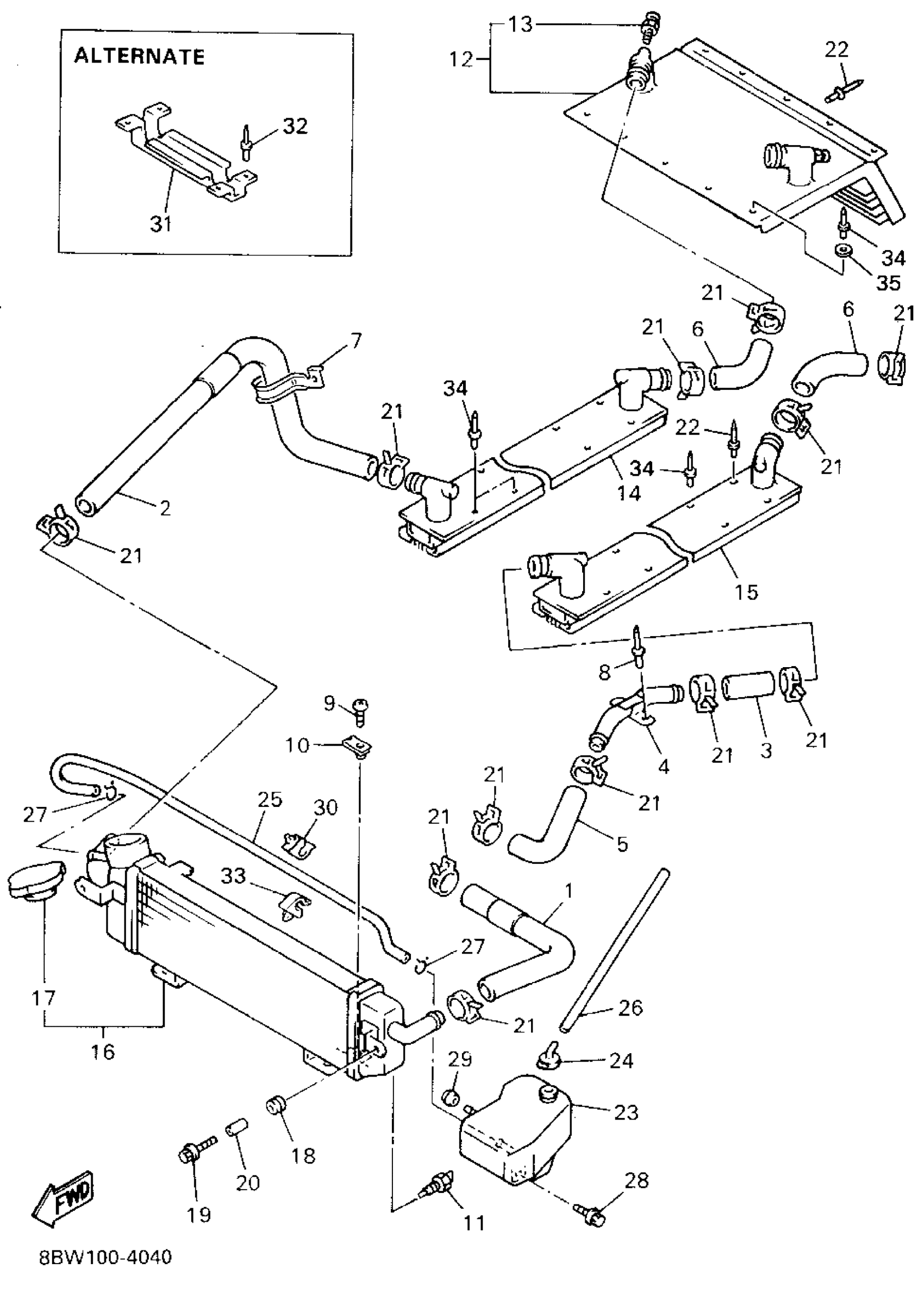

Yamaha VX750U (VMAX-4) 1994 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

89A-12481-00-00

Unavailable

2

PIPE 2

89A-12482-00-00

Unavailable

3

PIPE 3

89A-12483-00-00

Unavailable

4

PIPE 4

89A-12484-00-00

Unavailable

5

PIPE 5

89A-12485-00-00

Unavailable

6

PIPE 6

82M-12476-00-00

Unavailable

7

CLAMP 1

89A-12491-00-00

Unavailable

8

RIVET, BLIND

90267-48060-00

$8.49

9

SCREW, PAN HEAD (7G3)

98580-05008-00

$7.49

10

NUT, SPRING

90183-05044-00

Unavailable

11

THERMO SWITCH ASSEMBLY

3FY-82560-00-00

Unavailable

12

HEAT EXCHANGER ASY

82M-12440-02-00

Unavailable

13

SCREW, BREED

82M-1247H-00-00

Unavailable

14

HEAT EXCHANGER

89A-1240E-03-00

Unavailable

15

HEAT EXCHANGER

89A-1240F-01-00

Unavailable

16

RADIATOR ASSEMBLY

89A-12460-00-00

Unavailable

17

CAP, RADIATOR

4FL-12462-00-00

Unavailable

18

GROMMET (29L)

90480-15363-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

COLLAR

90387-07020-00

Unavailable

21

CLIP (8M6)

90467-28046-00

Unavailable

22

RIVET, BLIND(3JB)

90267-48095-00

Unavailable

23

TANK, RECOVERY

89A-21871-00-00

Unavailable

24

CAP

89A-21815-00-00

Unavailable

25

HOSE (L1500)

90445-090F6-00

Unavailable

26

HOSE (L370)

90445-112E1-00

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

29

GROMMET 152845180000

90480-12013-00

Unavailable

30

CLAMP(3LD)

90464-09129-00

Unavailable

31

PROTECTOR, FRAME

89A-21978-00-00

Unavailable

32

RIVET, BLIND

90267-48060-00

$8.49

33

CLAMP(6M7)

90464-10M32-00

Unavailable

34

RIVET, BLIND

90267-48126-00

Unavailable

35

WASHER, PLATE

90201-05023-00

Unavailable
