1994 Yamaha Vmax-4 (VX750U) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1994 Yamaha Vmax-4 (VX750U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

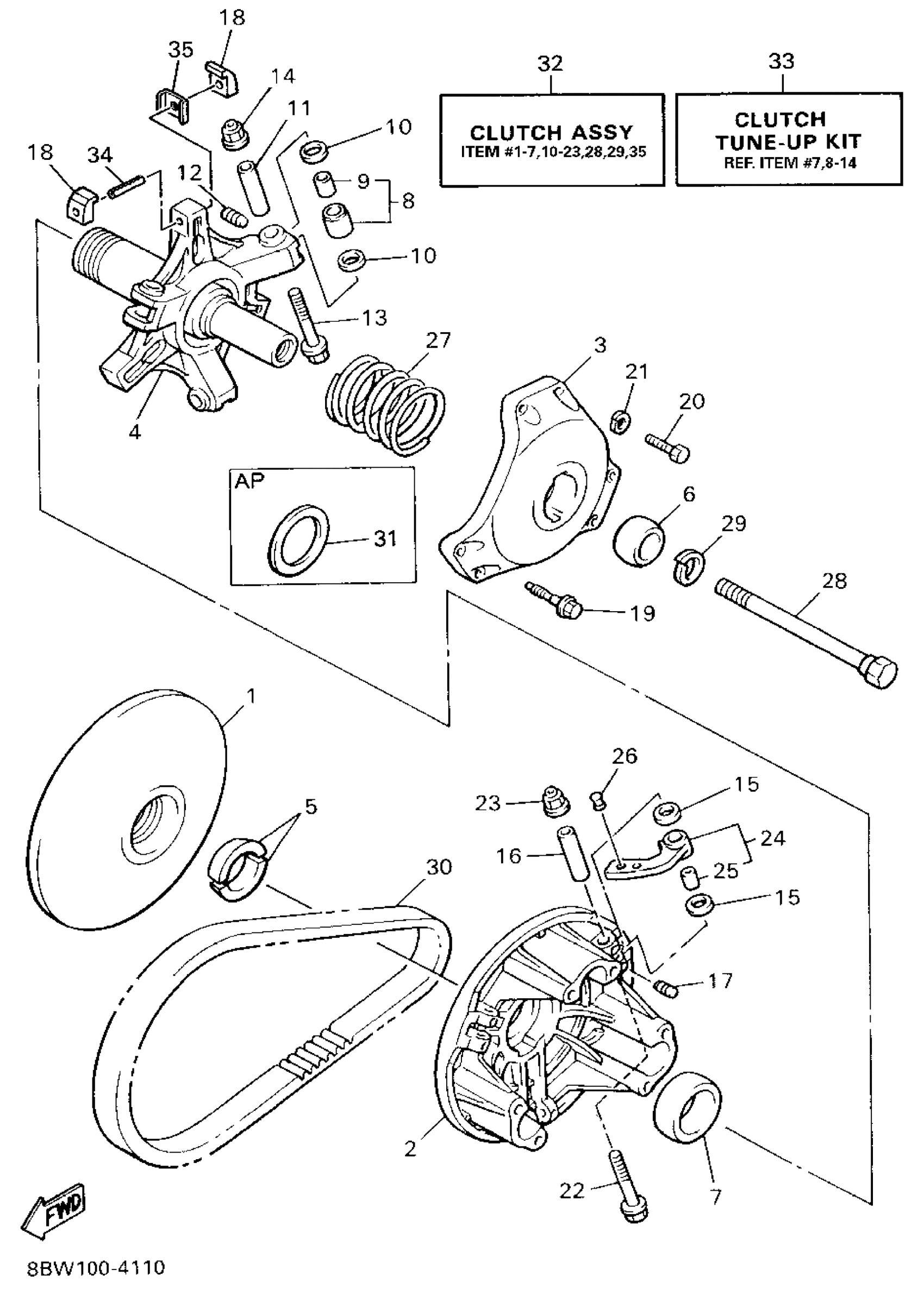

1994 Yamaha Vmax-4 (VX750U) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE,PRI FIXED

8AX-17611-09-00

1
Out of stock

2

SHEAVE, PRIMARY SLIDING

8AX-17621-01-00

1
Out of stock

3

CAP

88R-17631-01-00

—
Out of stock

4

SPIDER COMPLETE

8BW-17640-11-00

—

$293.52

In stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

BUSH(83R)

90389-28032-00

1

$55.86

In stock

7

BUSH(88R)

90389-41031-00

1

$73.72

In stock

8

ROLLER, COMP

8AB-17624-30-00

1
Out of stock

9

. BUSH, SOLID

90380-08244-00

1
Out of stock

10

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

11

COLLAR

90387-0514T-00

1

$14.86

In stock

12

BOLT, SET

90113-05041-00

1
Out of stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

14

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

15

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

16

COLLAR

90387-0514T-00

1

$14.86

In stock

17

BOLT, SET

90113-05041-00

1
Out of stock

18

SLIDER

8BW-17653-00-00

—

$13.86

In stock

19

BOLT(89J)

90109-066F4-00

—
Out of stock

20

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

23

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

24

WEIGHT COMP

8AX-17605-10-00

—

$55.66

In stock

25

. BUSH, SOLID

90380-08244-00

1
Out of stock

26

—

$7.55

In stock

26

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

26

—

$6.82

In stock

26

—

$2.72

In stock

26

RIVET, COUNTERSUNK HEAD (LEAD)

90261-06031-00

1
Out of stock

27

SPRING, COMPRESSION(89L)

90501-521J6-00

—

$37.82

In stock

27

SPRING, COMPRESSION(88S)

90501-524G4-00

—

$28.94

In stock

27

SPRING, COMPRESSION

90501-524G5-00

1
Out of stock

27

SPRING, COMPRESSION(8AV)

90501-550J8-00

—

$45.37

In stock

27

SPRING, COMPRESSION(88S)

90501-553G0-00

—

$32.34

In stock

27

SPRING, COMPRESSION(88R)

90501-553G6-00

—

$37.37

In stock

27

SPRING, COMPRESSION(8AX)

90501-581J7-00

—

$31.54

In stock

27

SPRING, COMPRESSION(8AY)

90501-582J1-00

—

$58.54

In stock

27

SPRING, COMPRESSION(8AY)

90501-582J1-00

—

$58.54

In stock

27

SPRING, COMPRESSION(8AY)

90501-602J0-00

—

$38.97

In stock

27

SPRING, COMPRESSION(88R)

90501-604G0-00

—

$26.58

In stock

27

SPRING, COMPRESSION(88R)

90501-605G7-00

—

$29.25

In stock

28

. BOLT (L=1653MM)

88R-17647-00-00

1
Out of stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

30

V-BELT

8BU-17641-01-00

1
Out of stock

31

WASHER, PLATE(88S)

90201-483P9-00

—

$11.66

In stock

32

CLUTCH ASY

8BW-17601-19-00

1
Out of stock

33

CLUTCH TUNE-UP KIT

8BW-00000-50-00

1
Out of stock

34

PIN, SPRING (7F7)

91609-50032-00

—

$3.66

In stock

35

SPACER 1

8BW-17654-20-00

—

$6.78

In stock
