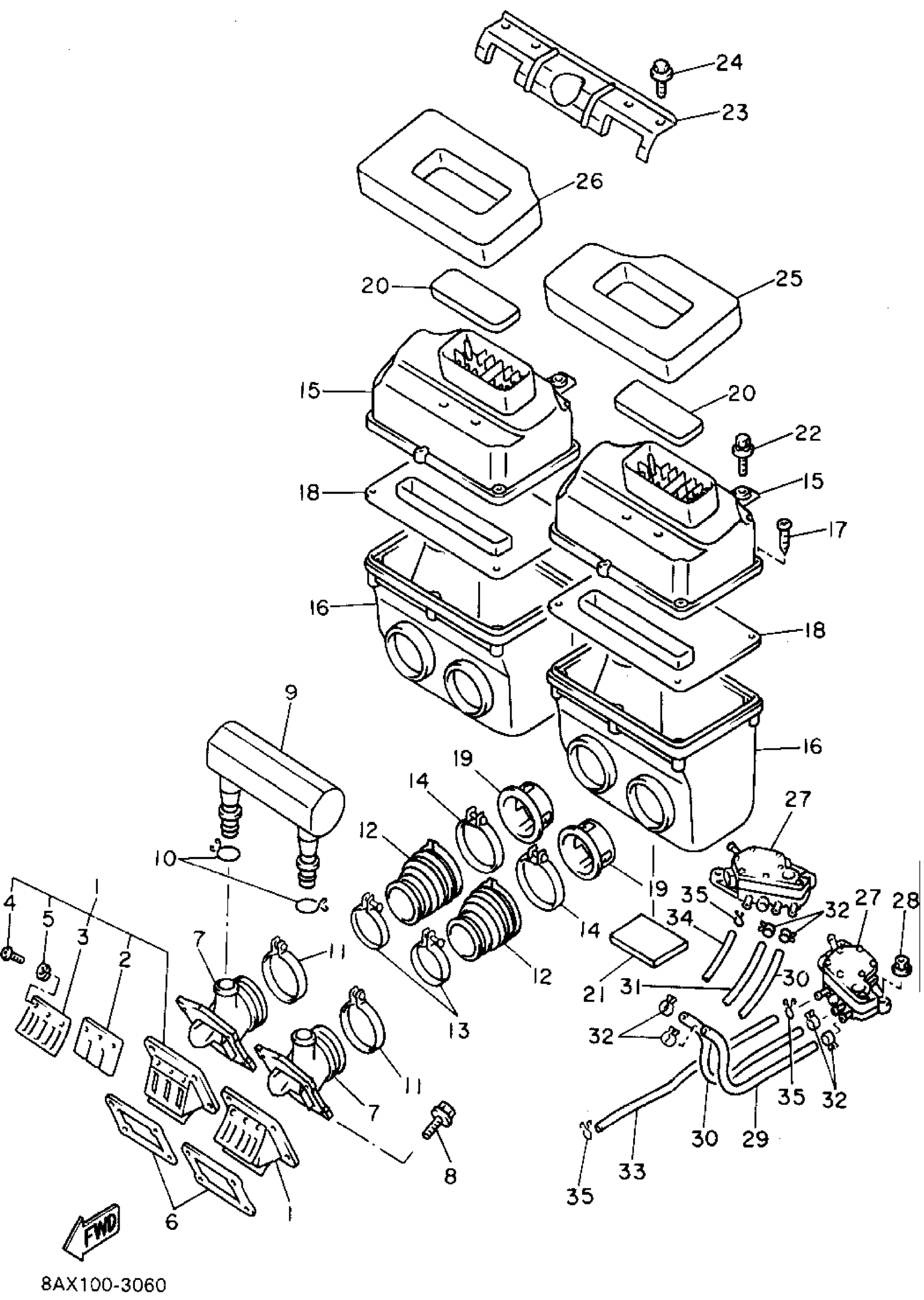

Find the part on the Intake diagram for your 1994 Yamaha Vmax-4 (VX750U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax-4 (VX750U) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

1LX-13610-01-00

1
Out of stock

2

REED, VALVE

55Y-13613-00-00

—
Out of stock

3

. STOPPER, REED VALVE

55Y-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

4TP-13621-00-00

1
Out of stock

7

MANIFOLD, INTAKE

89A-13555-00-00

1
Out of stock

8

BOLT, FLANGE

95822-06025-00

1

$1.46

In stock

9

CHAMBER, AIR

89A-13581-00-00

1
Out of stock

10

CLIP

90467-20M15-00

1

$6.23

In stock

11

BAND

86M-13575-00-00

1

$16.45

In stock

12

JOINT, AIR CLEANER 1

89A-14453-00-00

1
Out of stock

13

HOSE CLAMP ASSY

90450-53008-00

1
Out of stock

14

HOSE CLAMP ASSY

90450-81001-00

1

$11.26

In stock

15

SILENCER, INTAKE 1

89A-14431-00-00

1
Out of stock

16

SILENCER, INTAKE 2

89A-14441-00-00

1
Out of stock

17

SCREW, TAPPING(82M)

90167-05043-00

—

$5.62

In stock

18

PLATE

89A-14477-00-00

1
Out of stock

19

PIPE

89A-14465-00-00

1
Out of stock

20

ELEMENT, AIR CLEANER

89A-14451-00-00

1
Out of stock

21

PROTECTOR

89A-1442F-00-00

1
Out of stock

22

BOLT, WITH WASHER(2WG)

90119-06172-00

—

$5.83

In stock

23

STAY 1

89A-14493-00-00

1
Out of stock

24

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

25

DAMPER 1

89A-14425-00-00

1
Out of stock

26

DAMPER 2

89A-14426-00-00

1
Out of stock

27

FUEL PUMP ASSY

89A-24410-01-00

—

$226.22

In stock

28

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

29

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

30

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

31

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

32

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

33

HOSE (L450)

90445-10144-00

—

$4.52

In stock

34

HOSE (L450)

90445-10144-00

—

$4.52

In stock

35

CLIP

90467-090A2-00

—

$2.51

In stock
