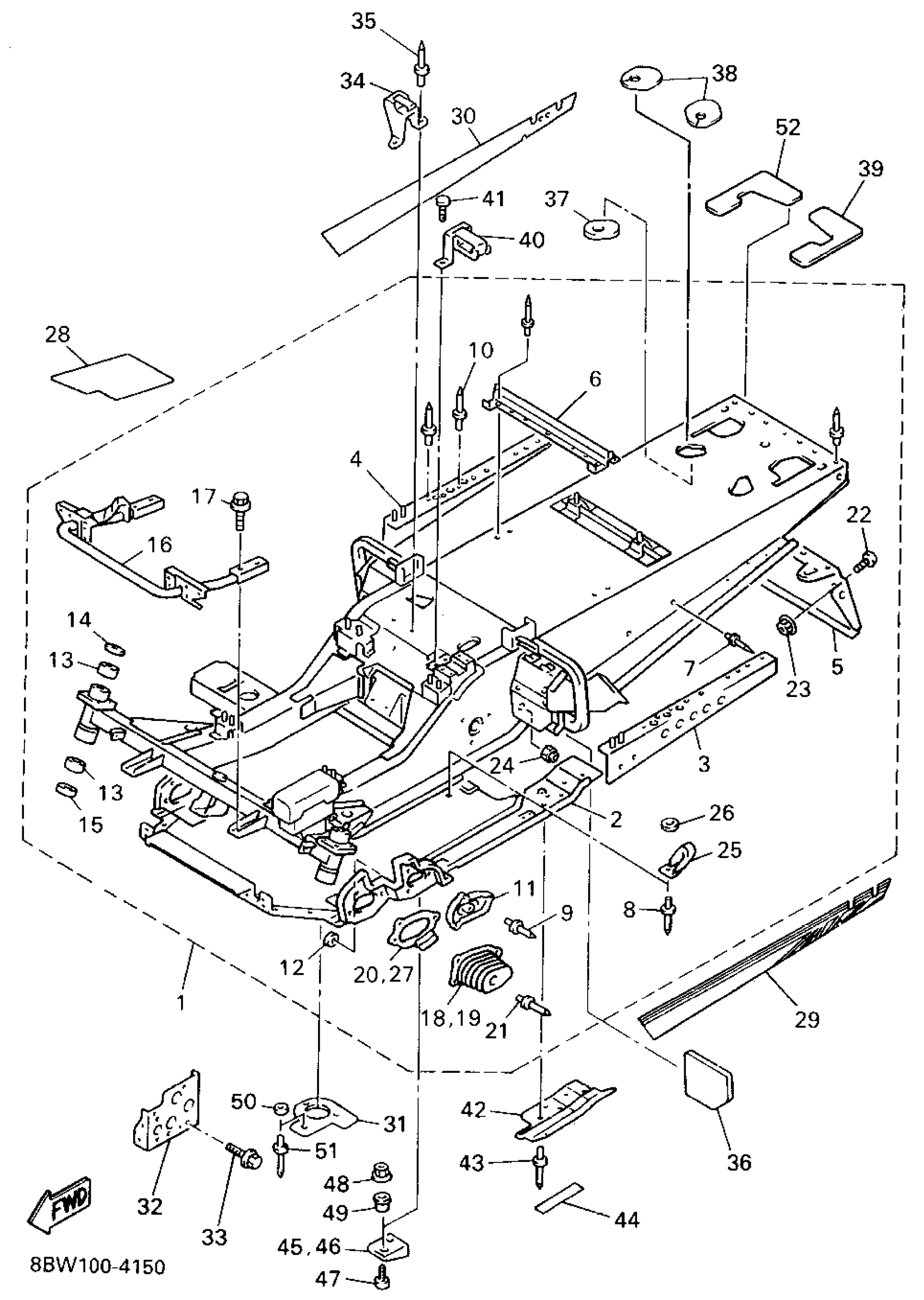

Yamaha VX750U (VMAX-4) 1994 FRAME Diagram
#
1
FRAME COMP.
8BW-21910-00-00
Unavailable
2
. PANEL, SUB FRAME 1
89A-21912-00-00
Unavailable
3
. PATCH 4
8AB-21964-00-00
Unavailable
4
. PATCH 5
8AB-21965-00-00
Unavailable
5
RNFCMNT,FRAME REAR
89A-21923-20-00
Unavailable
6
. BRACKET, SEAT FITTING
8AB-21946-00-00
Unavailable
7
RIVET, BLIND (8K1)
90267-40076-00
$8.49
8
RIVET, BLIND
90267-48018-00
$9.49
9
RIVET, BLIND
90267-40029-00
$8.49
10
RIVET(89R)
90269-04044-00
Unavailable
11
COVER 1
8M6-2198F-00-00
$31.99
12
WASHER, PLATE
90201-04027-00
$3.02
13
. BUSH, SOLID
90380-38205-00
Unavailable
14
. OIL SEAL
93102-38441-00
Unavailable
15
. OIL SEAL
93103-38172-00
Unavailable
16
. BUMPER, FRONT 2
89A-77512-00-00
Unavailable
17
BOLT, FLANGE
95817-08040-00
Unavailable
18
. COVER 1
89A-2198F-00-00
Unavailable
19
. COVER 3
89A-2198J-00-00
Unavailable
20
. WASHER 2
89A-77526-00-00
Unavailable
21
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
22
SCREW, BIND(J39)
98980-06014-00
Unavailable
23
NUT, FLANGE
95704-08500-00
Unavailable
24
NUT, NYLON
95707-06300-00
Unavailable
25
CLAMP(51Y)
90465-08277-00
Unavailable
26
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
27
. WASHER 1
89A-77525-00-00
Unavailable
28
SHIELD, HEAT
89A-2199H-01-00
Unavailable
29
EMBLEM 1
8BW-77351-00-00
Unavailable
30
EMBLEM 2
8BW-77352-00-00
Unavailable
31
SHIELD, NOISE
89A-2199F-00-00
Unavailable
32
BRACKET, TOOL BOX FITTING
89A-21955-00-00
Unavailable
33
BOLT, FLANGE
95817-06012-00
Unavailable
34
BRACKET 4
89A-2196G-00-00
Unavailable
35
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
36
COVER 2
89A-2198G-10-00
Unavailable
37
PATCH 5
82M-21965-00-00
Unavailable
38
PATCH 5
88R-21965-00-00
Unavailable
39
COVER 6
8AB-1246J-00-00
Unavailable
40
BRACKET 3
89A-2196F-00-00
Unavailable
41
BOLT(4GV)
97017-05012-00
Unavailable
42
FRAME UNDER 1
89A-2196A-01-00
Unavailable
43
RIVET, BLIND
90267-48018-00
$9.49
44
TRIM, LOWER
89A-77214-00-00
Unavailable
45
PAD 1
89A-77151-00-00
Unavailable
46
PAD 2
89A-77152-00-00
Unavailable
47
SCREW, WITH WASHER (5U8)
90159-06056-00
Unavailable
48
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
49
COLLAR (3L6)
90387-06737-00
Unavailable
50
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
51
RIVET, BLIND
90267-48018-00
$9.49
52
COVER 7
8AB-1246K-00-00
Unavailable
