Description

Price

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

2

LEVER 1

8H8-83912-00-00

$20.99

3

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

4

SCREW

8R4-82113-00-00

Unavailable

5

NUT, NYLON

95707-05300-00

$4.24

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

7

COLLAR, LEVER

802-83913-00-00

Unavailable

8

. SCREW, TAPPING

97780-30312-00

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

11

STOP SWITCH ASSY

88R-82530-00-00

$31.99

12

LEVER HOLDER ASSY

8AV-82720-02-00

Unavailable

13

. SWITCH, HANDLE 3 (RIGHT)

8AV-83963-00-00

Unavailable

14

. ENGINE STOP SWITCH ASSEMBLY

84R-82575-09-00

Unavailable

15

SCREW, ADJUSTING

84M-83928-00-00

$2.29

16

THUMB WARMER ASSY

89A-82970-03-00

Unavailable

17

SCREW, TAPPING(3NX)

97707-30514-00

Unavailable

18

CIRCLIP (EU0)

99080-04600-00

Unavailable

19

WASHER, SPECIAL

85G-83663-00-00

Unavailable

20

CAP 1

85G-83956-00-00

Unavailable

21

SHAFT

8R6-8399F-00-00

Unavailable

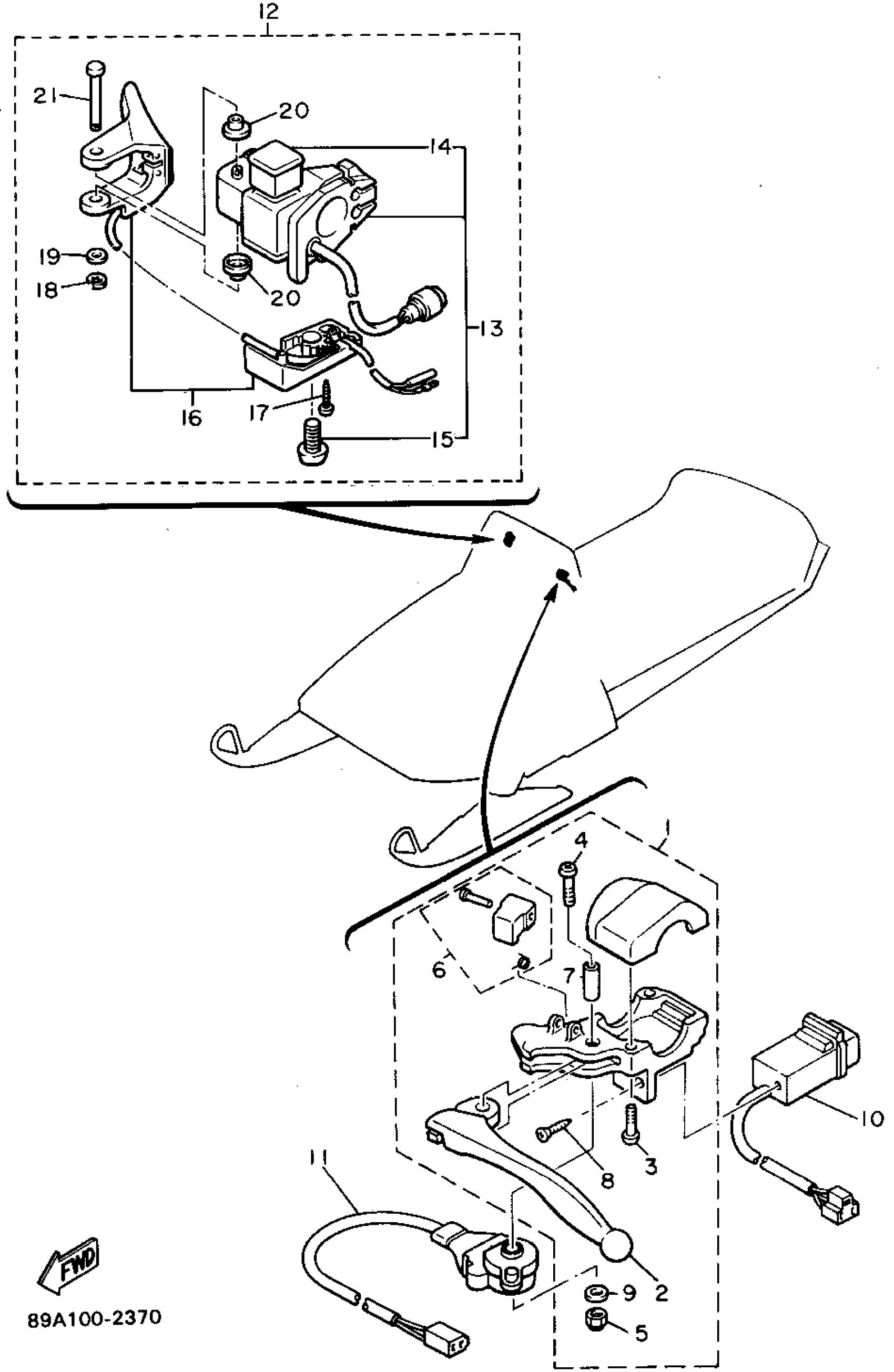

Yamaha VX750U (VMAX-4) 1994 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

LEVER 1

SCREW, PAN HEAD(41N)

SCREW

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

. WASHER, PLAIN

BEAM SWITCH ASSY

STOP SWITCH ASSY

LEVER HOLDER ASSY

. SWITCH, HANDLE 3 (RIGHT)

. ENGINE STOP SWITCH ASSEMBLY

SCREW, ADJUSTING

THUMB WARMER ASSY

SCREW, TAPPING(3NX)

CIRCLIP (EU0)

WASHER, SPECIAL

CAP 1

SHAFT
