- VX750U (VMAX-4) 1994
CRANKSHAFT PISTON

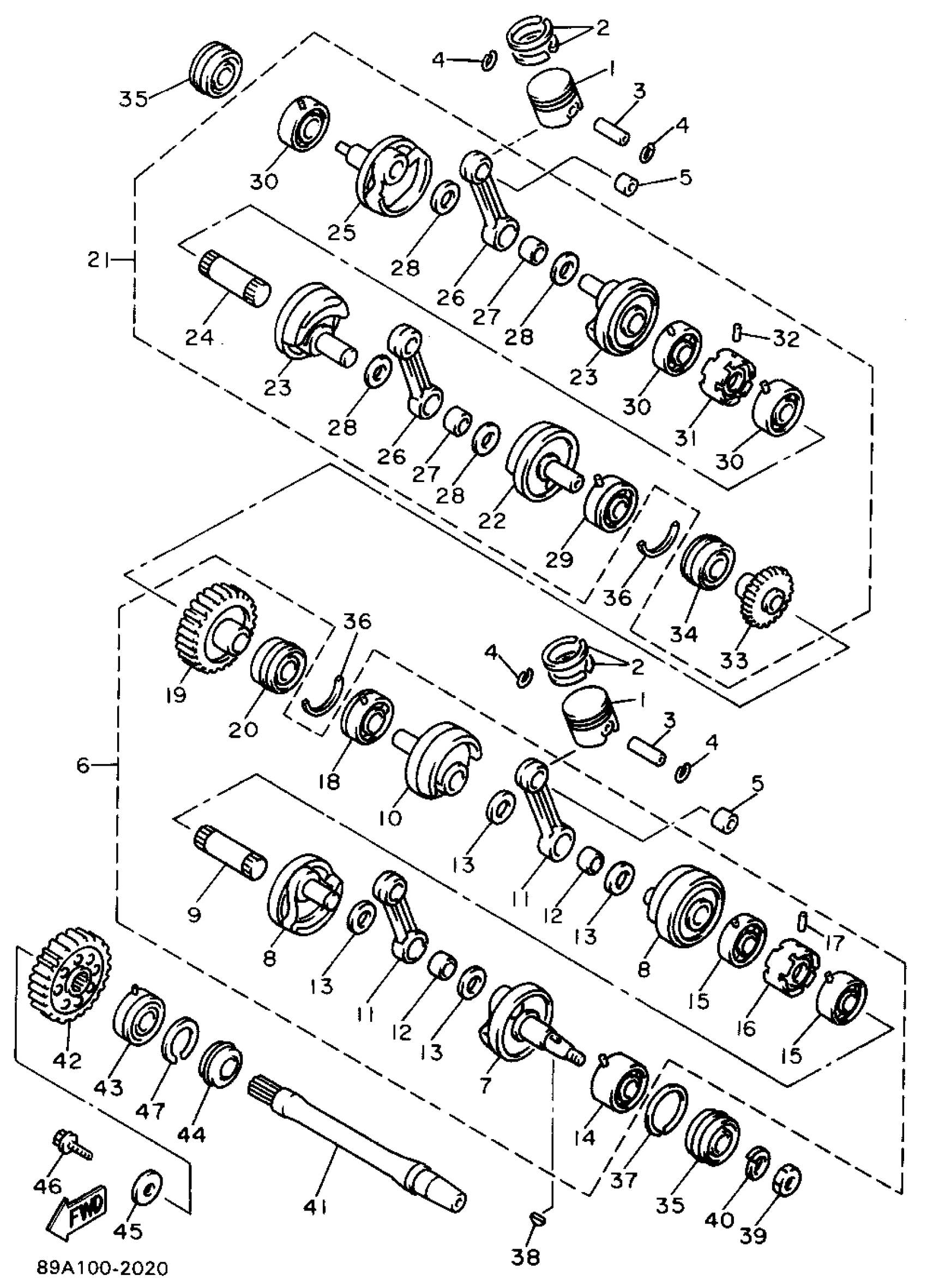

Yamaha VX750U (VMAX-4) 1994 CRANKSHAFT PISTON Diagram
#
1
PISTON (STD)
8AX-11631-00-93
Unavailable
2
PISTON RING SET (STD)
89A-11601-00-00
$57.99
3
PIN, PISTON
4H7-11633-00-00
$46.99
4
CIRCLIP(1AR)
93450-17129-00
$4.14
5
BEARING, CYLINDRICAL(8AX)
93310-316D6-00
$39.99
6
CRANKSHAFT
89A-11410-01-00
Unavailable
7
. CRANK 1
89A-11412-00-00
Unavailable
8
. CRANK 2
89A-11422-00-00
Unavailable
9
. CRANK 3
89A-11431-00-00
Unavailable
10
. CRANK 4
89A-11442-00-00
Unavailable
11
ROD, CONNECTING
29L-11651-00-00
Unavailable
12
BEARING, CYLINDRICAL(3XP)
93310-523D2-00
Unavailable
13
WASHER(8AX)
90209-22326-00
$33.99
14
. BEARING
93305-20606-00
Unavailable
15
. BEARING
93306-20643-00
Unavailable
16
. SEAL, LABYRINTH 1
89A-11515-00-00
Unavailable
17
PIN, SPRING (663)
91690-30010-00
Unavailable
18
BEARING
93306-30571-00
Unavailable
19
. GEAR, 1
89A-11543-00-00
Unavailable
20
. OIL SEAL
93103-40174-00
Unavailable
21
CRANKSHAFT
89A-11420-01-00
Unavailable
22
. CRANK 4
89A-11442-00-00
Unavailable
23
. CRANK 2
89A-11422-00-00
Unavailable
24
. CRANK 3
89A-11431-00-00
Unavailable
25
. CRANK 5
89A-11452-01-00
Unavailable
26
ROD, CONNECTING
29L-11651-00-00
Unavailable
27
BEARING, CYLINDRICAL(3XP)
93310-523D2-00
Unavailable
28
WASHER(8AX)
90209-22326-00
$33.99
29
BEARING
93306-30571-00
Unavailable
30
. BEARING
93306-20643-00
Unavailable
31
. SEAL, LABYRINTH 1
89A-11515-00-00
Unavailable
32
PIN, SPRING (663)
91690-30010-00
Unavailable
33
. GEAR 2
89A-11544-00-00
Unavailable
34
. OIL SEAL
93103-40174-00
Unavailable
35
OIL SEAL
93103-30175-00
Unavailable
36
CIRCLIP
278-17424-01-00
Unavailable
37
CIRCLIP(MF1)
99009-62500-00
Unavailable
38
KEY, WOODRUFF (8R9)
90280-05033-00
Unavailable
39
NUT
90170-16425-00
Unavailable
40
WASHER(JN5)
92907-16100-00
Unavailable
41
SHAFT 1
89A-11455-01-00
Unavailable
42
PRIMARY DRIVEN GEAR COMP.
89A-16150-00-00
Unavailable
43
BEARING(89A)
93305-20509-00
Unavailable
44
OIL SEAL
93102-30435-00
Unavailable
45
WASHER, PLATE
90201-101P4-00
Unavailable
46
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
47
CIRCLIP (256)
93440-52014-00
Unavailable
