Description

Price

1

STARTER ASY

89A-15710-02-00

Unavailable

2

CASE, STARTER

89A-15711-02-00

Unavailable

3

DRUM, SHEAVE

24W-15714-00-00

$57.99

4

PAWL, DRIVE

21V-15741-00-00

$23.99

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

7

SPRING

21V-15767-00-00

$7.99

8

PLATE, DRIVE

21V-15716-00-00

$27.99

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

11

HANDLE, STARTER

8F3-15755-00-00

$29.99

12

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

PULLEY, STARTER

89A-15723-01-00

Unavailable

16

BOLT, FLANGE

95817-10020-00

Unavailable

17

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

18

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable

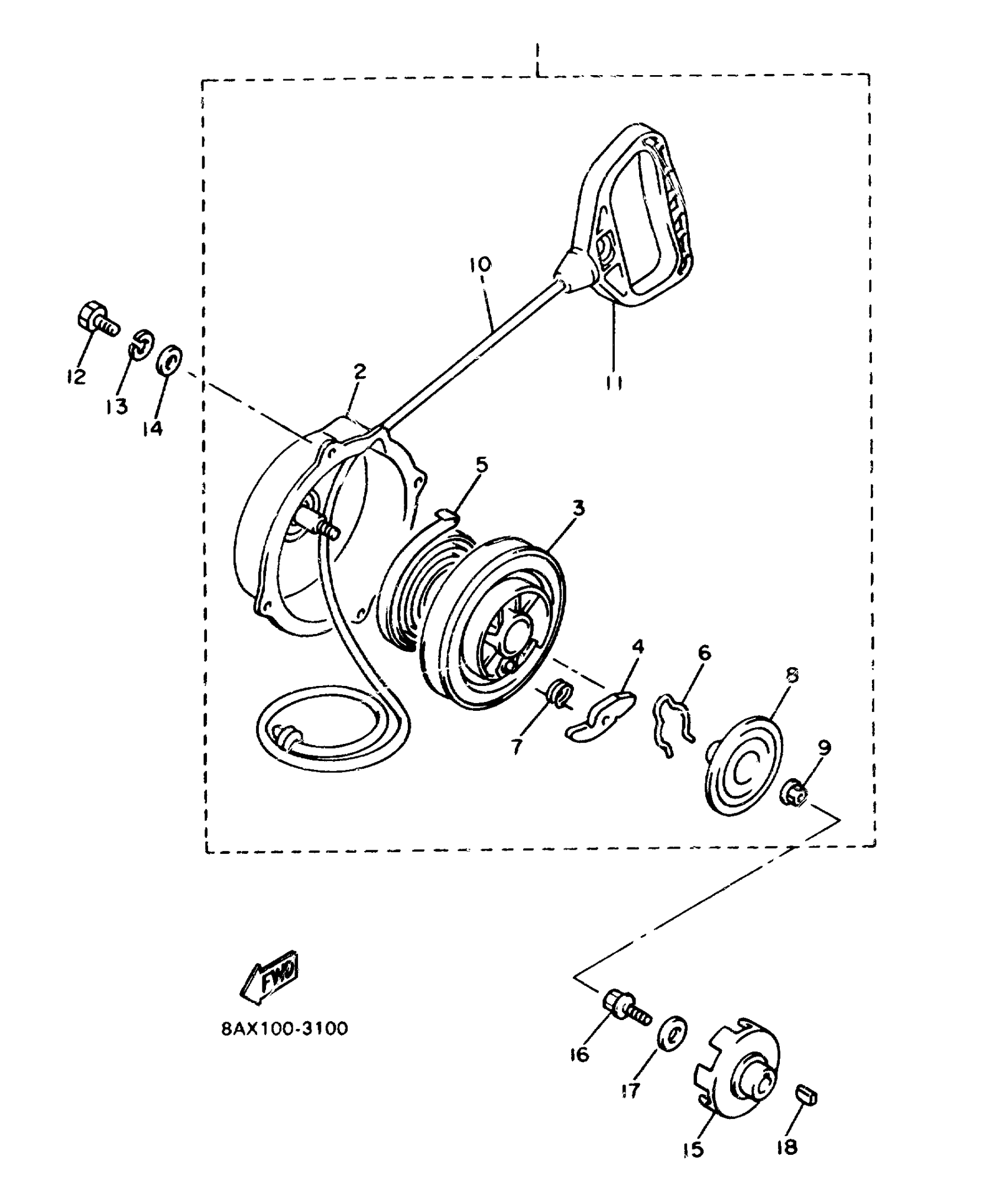

Yamaha VX750T (VMAX-4) 1993 STARTER Diagram

STARTER ASY

CASE, STARTER

DRUM, SHEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

SPRING

PLATE, DRIVE

NUT, FLANGE(7NB)

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

PULLEY, STARTER

BOLT, FLANGE

WASHER, PLATE(42X)

KEY, WOOD RUFF (324)
