SECONDARY SHEAVE

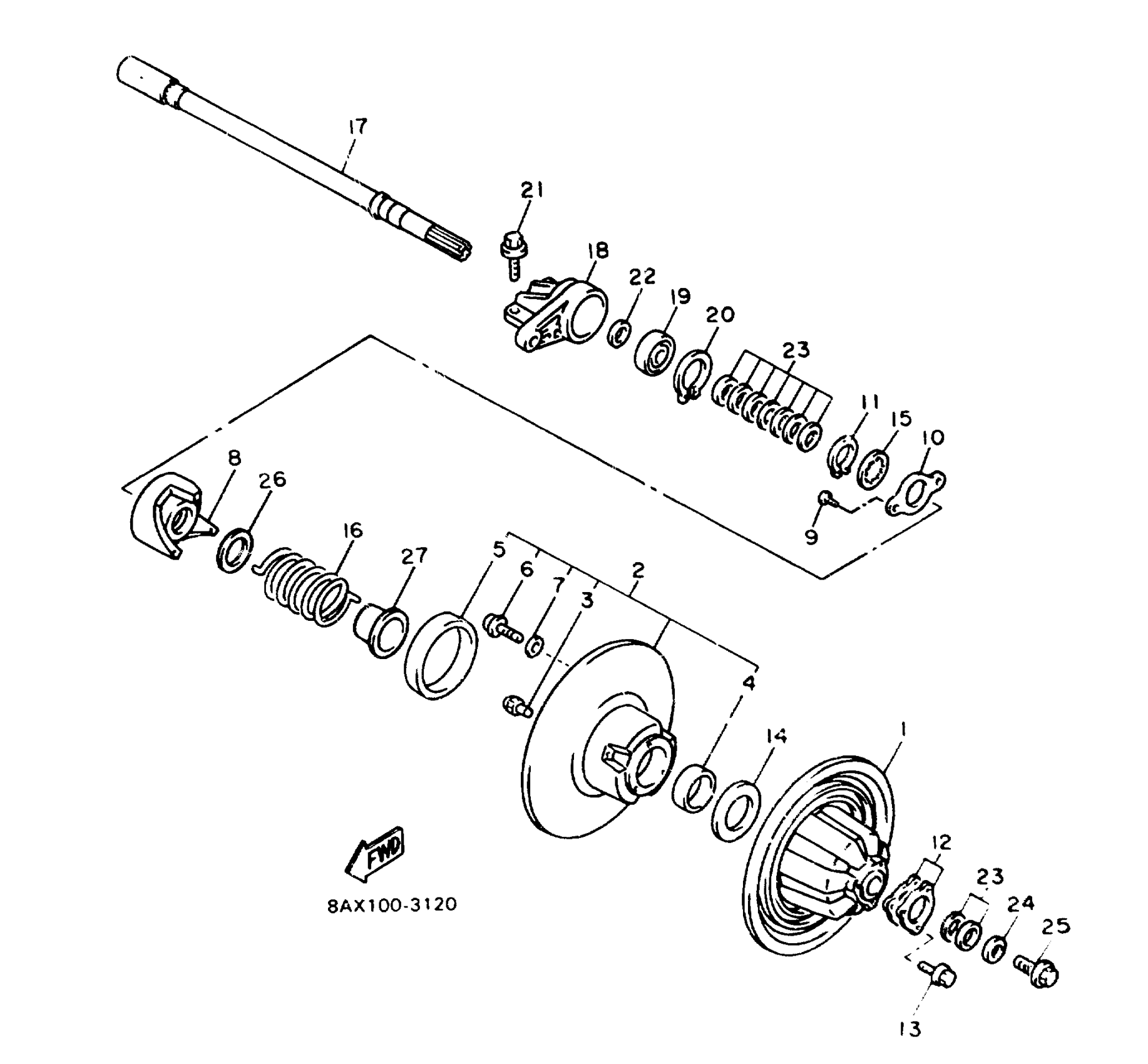

Yamaha VX750T (VMAX-4) 1993 SECONDARY SHEAVE Diagram
#
1
SEC FXD SHV
89A-17660-12-00
Unavailable
2
SEC SLIDING SHEAVE
89A-17670-11-00
Unavailable
3
SHOE RAMP
8AX-17688-01-00
Unavailable
4
. SEC SLIDING SHV BUSHING
90380-38220-00
Unavailable
5
. SEC SLIDING SHV BUSHING
90380-96207-00
Unavailable
6
SCREW, BINDING
98907-06016-00
$9.49
7
WASHER, PLATE
90201-06020-00
$9.49
8
SEAT, SECONDARY SPRING (38 DEG.)
8AX-17684-00-00
Unavailable
8
SEAT, SECONDARY SPRING (33 DEG.)
8AX-17684-30-00
Unavailable
8
SEAT, SECONDARY SPRING (36 DEG.)
8AX-17684-60-00
Unavailable
8
SEAT, SECONDARY SPRING (39 DEG.)
8AX-17684-90-00
Unavailable
8
SEAT, SECONDARY SPRING (42-37 DEG.)
8AX-17684-R0-00
Unavailable
9
SCREW, BINDING
98907-06012-00
$9.49
10
WASHER
90209-38320-00
Unavailable
11
CIRCLIP
93410-38076-00
Unavailable
12
STOPPER, HOLDER
89A-17656-00-00
Unavailable
13
BOLT, SMALL FLANGE
95027-06030-00
Unavailable
14
WASHER, PLATE
90201-384P6-00
Unavailable
15
WASHER
90209-34321-00
Unavailable
16
SPRING, TORSION
90508-551A3-00
Unavailable
16
SPRING, TORSION
90508-553A0-00
Unavailable
17
SHAFT, SECONDARY
89A-17680-01-00
Unavailable
18
HOUSING, BEARING
89A-47631-00-00
Unavailable
19
BEARING
93306-20641-00
Unavailable
20
CIRCLIP(MF1)
99009-62500-00
Unavailable
21
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
22
WASHER, PLATE(89A)
90201-284P7-00
Unavailable
23
WASHER, PLATE(89A)
90201-284P7-00
Unavailable
23
WASHER, PLATE
90201-284P8-00
Unavailable
23
WASHER, PLATE
90201-284P9-00
Unavailable
24
WASHER, PLATE
90201-141M3-00
Unavailable
25
BOLT, WASHER BASED
90105-14175-00
Unavailable
26
TORQUE CAM WASHER
90201-381R7-00
Unavailable
27
SEC. SPRING SEAT COVER
8AX-17674-00-00
Unavailable
