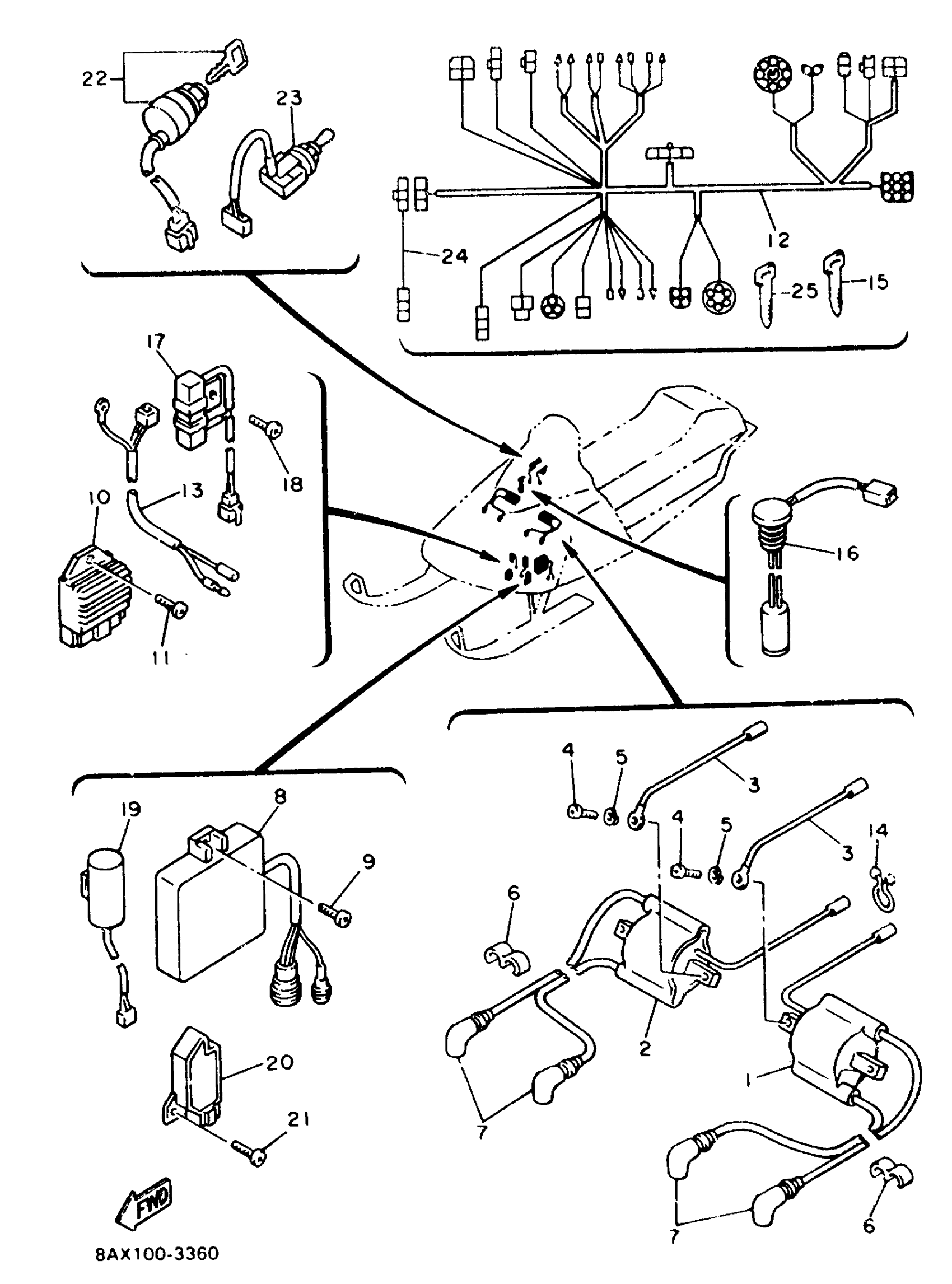

Yamaha VX750T (VMAX-4) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

IGNITION COIL ASSY

89A-82320-09-00

Unavailable

3

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

4

SCREW PAN HEAD

98580-06020-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

CLAMP, CORD

861-82361-00-00

Unavailable

7

PLUG CAP ASSY

8DG-82370-00-00

$49.99

8

C.D.I. UNIT ASSEMBLY

8AX-85540-00-00

Unavailable

9

SCREW, BIND (705)

98980-06016-00

$8.49

10

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

11

BOLT, FLANGE

95817-06012-00

$1.43

12

WIRE HARNESS ASSEMBLY

89A-82590-00-00

Unavailable

13

WIRE, SUB LEAD

89A-82509-00-00

Unavailable

14

CLAMP (3Y2)

90464-16039-00

$9.49

15

BAND

341-26397-01-00

Unavailable

16

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

17

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

18

SCREW, BIND (705)

98980-06016-00

$8.49

19

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

20

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

Unavailable

21

SCREW, BIND (705)

98980-06016-00

$8.49

22

MAIN SWITCH ASSEMBLY

89A-82510-00-00

Unavailable

23

SWITCH

88T-82510-00-00

Unavailable

24

WIRE, LEAD

89A-8471G-00-00

Unavailable

25

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
