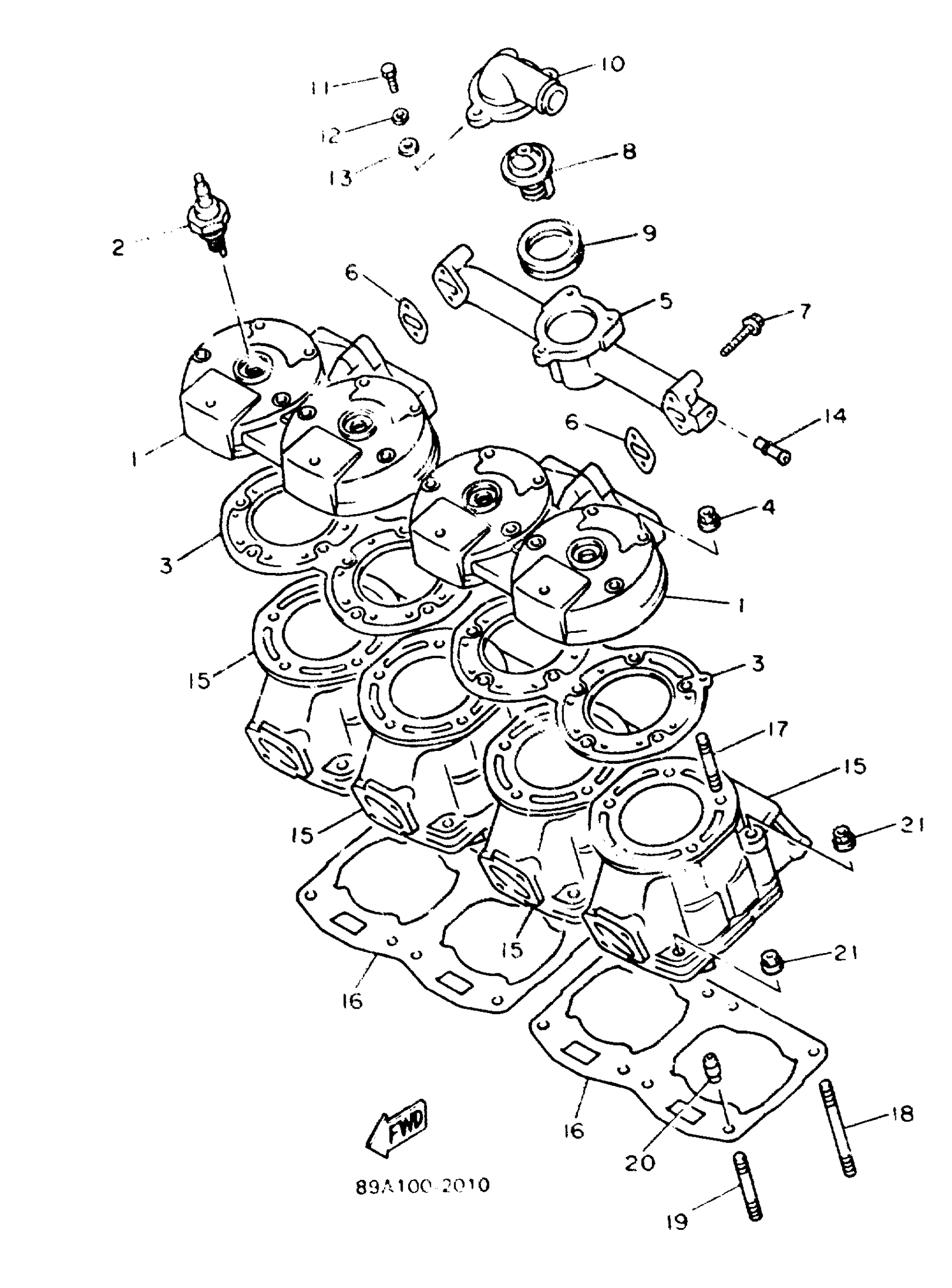

Yamaha VX750T (VMAX-4) 1993 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

89A-11111-00-00

Unavailable

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

GASKET, CYLINDER HEAD 1

8AX-11181-00-00

Unavailable

NUT(55X)

90179-08491-00

$8.49

JOINT 2

89A-1247A-00-00

Unavailable

GASKET

89A-12435-00-00

Unavailable

BOLT, FLANGE

95817-06035-00

$7.49

THERMOSTAT

82M-12411-00-00

$75.99

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

COVER, THERMOSTAT

89A-12413-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

JOINT

8A7-12499-00-00

Unavailable

CYLINDER 1

8AX-11311-00-00

Unavailable

GASKET, CYLINDER

89A-11351-00-00

Unavailable

BOLT, STUD (5X4)

90116-08392-00

Unavailable

BOLT (248-11361-00)

90116-08064-00

Unavailable

BOLT, STUD (24X)

90116-08409-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

NUT(55X)

90179-08491-00

$8.49
