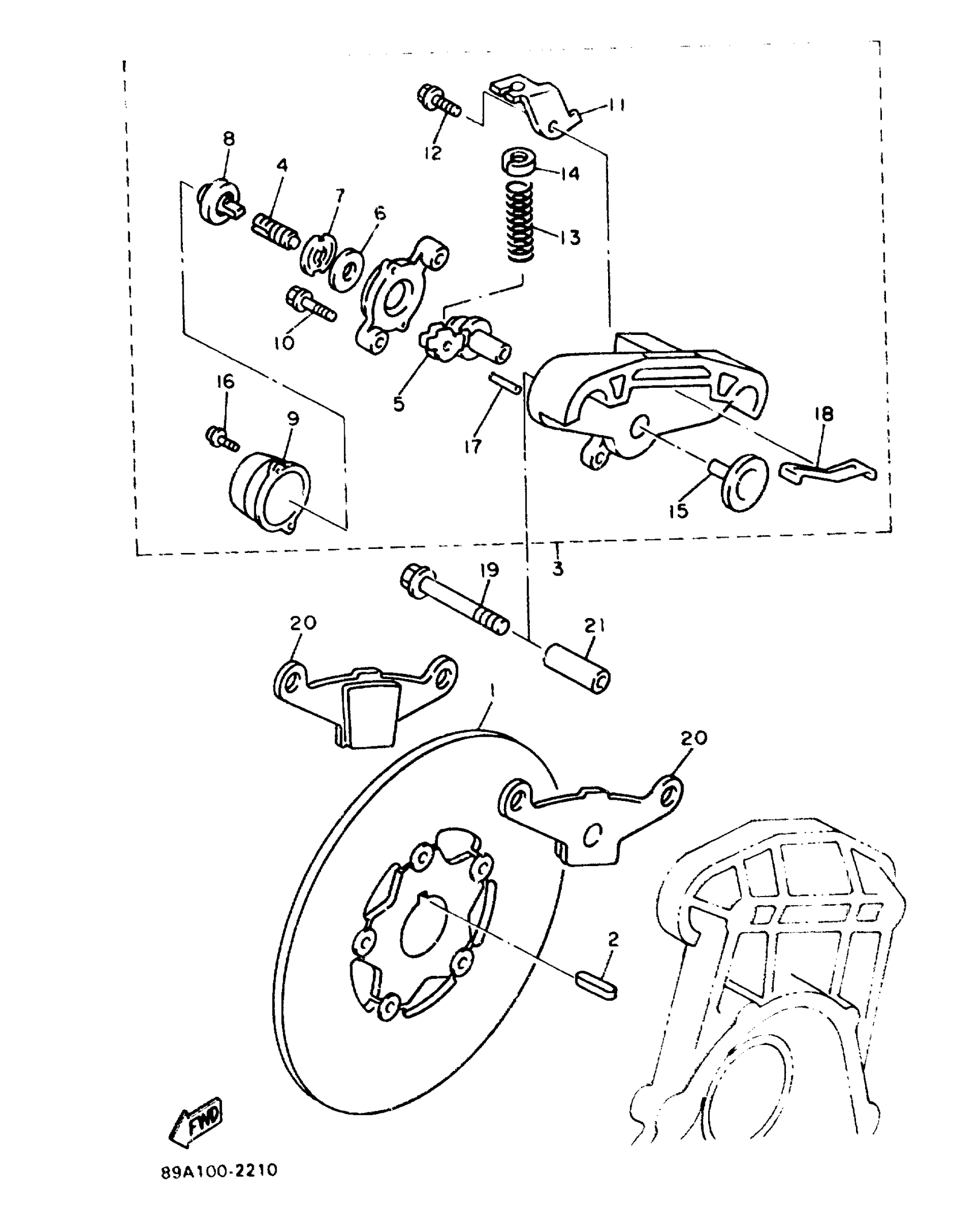

Yamaha VX750T (VMAX-4) 1993 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSY

8AX-25830-01-00

Unavailable

2

KEY, SLIDING(88K)

90281-07004-00

$13.99

3

CALIPER BODY COMP.1

89A-25730-00-00

Unavailable

4

SCREW, ADJUSTING 1

86M-25738-00-00

$17.49

5

. LEVER, BRAKE

86M-25726-01-00

Unavailable

6

SHIM, CALIPER

86M-25827-00-00

Unavailable

7

LOCK, ONE WAY 2

86M-25773-00-00

Unavailable

8

. RATCHET, ADJUSTING

89A-25771-00-00

Unavailable

9

COVER

86M-25772-00-00

Unavailable

10

BOLT, CALIPER

86M-25818-00-00

Unavailable

11

. BRACKET, CALIPER

86M-25721-00-00

Unavailable

12

BOLT 3

86M-25826-00-00

$1.51

13

. SPRING, COMPRESSION

86M-25743-00-00

Unavailable

14

. SPRING, STOPPER

86M-25714-00-00

Unavailable

15

. PLATE, BACK UP

89A-25733-00-00

Unavailable

16

BOLT, FITTING

86M-25833-00-00

Unavailable

17

PIN 2

86M-25744-00-00

Unavailable

18

. HOOK, SPRING

89A-25736-00-00

Unavailable

19

BOLT, WASHER BASED(4HM)

90105-10737-00

Unavailable

20

PAD, LINING COMP.

89A-25811-01-00

Unavailable

21

COLLAR

90387-105Y1-00

Unavailable
