- VX750STU (VMAX-4 ST (LONG TRACK)) 1994
TRACK SUSPENSION 2

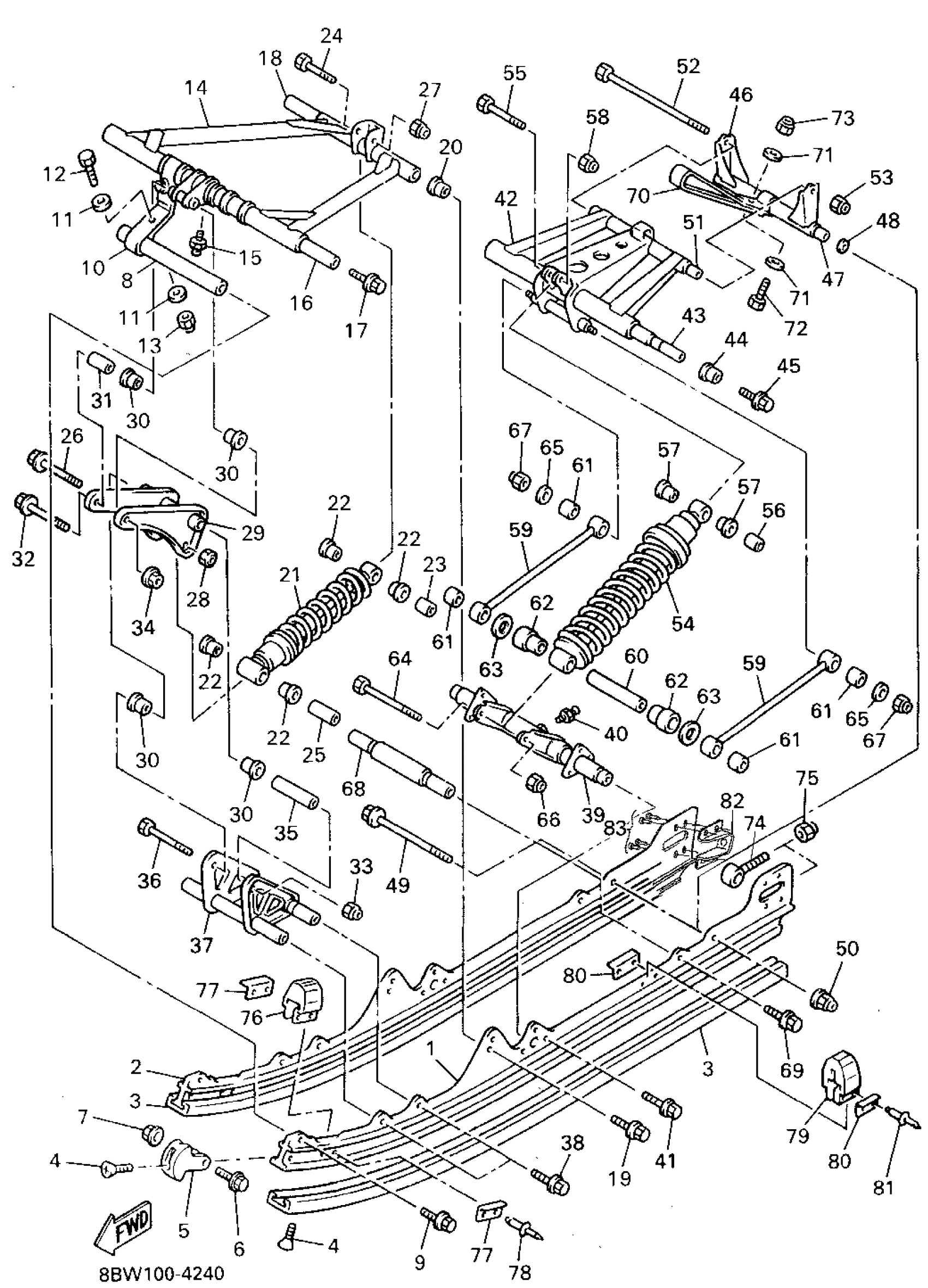

Yamaha VX750STU (VMAX-4 ST (LONG TRACK)) 1994 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING
8BX-W4741-00-00
Unavailable
2
FRAME, SLIDING
8BX-W4741-00-00
Unavailable
3
RUNNER 1, RED
8BX-47421-10-XX
Unavailable
4
SCREW, COUNTERSUNK
90151-06057-00
Unavailable
5
RUNNER,SLIDING 2
8AX-47422-01-00
Unavailable
6
BOLT, FLANGE
95817-06040-00
$5.60
7
NUT, U FLANGE
95604-06200-00
$8.49
8
SHAFT 3
82M-47485-02-00
Unavailable
9
BOLT, FLANGE
95817-10030-00
$8.49
10
STOPPER 1
8AB-47495-00-00
Unavailable
11
WASHER, PLATE
90201-06747-00
$8.49
12
BOLT, HEXAGON
97017-06025-00
$4.24
13
NUT, NYLON
95707-06300-00
$3.50
14
ARM,PIVOT 1
89A-47331-03-00
Unavailable
15
NIPPLE, GREASE
93700-06M03-00
Unavailable
16
SHAFT 6
8CM-47488-10-00
Unavailable
17
BOLT (8V0)
90109-10771-00
Unavailable
18
SHAFT 3
82M-47485-02-00
Unavailable
19
BOLT, FLANGE
95817-10030-00
$8.49
20
COLLAR (8U7)
90387-105G6-00
Unavailable
21
SHOCK ABSORBER 2
8BX-47481-00-00
Unavailable
22
COLLAR (8U7)
90387-123G4-00
Unavailable
23
COLLAR
90387-08775-00
Unavailable
24
. BOLT
90101-08557-00
Unavailable
25
COLLAR
90387-08478-00
Unavailable
26
BOLT, FLANGE
95814-08065-00
Unavailable
27
NUT, SELF-LOCKING
90185-08169-00
Unavailable
28
NUT, U
95617-08100-00
Unavailable
29
BRACKET 6
8U7-47464-00-00
Unavailable
30
COLLAR
90387-123G5-00
Unavailable
31
COLLAR
90387-08478-00
Unavailable
32
BOLT, FLANGE(JN5)
95817-08070-00
Unavailable
33
NUT, SELF-LOCKING
90185-08169-00
Unavailable
34
NUT, SELF-LOCKING
90185-08169-00
Unavailable
35
COLLAR
90387-084G0-00
Unavailable
36
BOLT, FLANGE
95817-08100-00
Unavailable
37
BRACKET 4
8AX-47418-00-00
Unavailable
38
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
39
BRACKET 2
8AX-47416-01-00
Unavailable
40
NIPPLE, GREASE
93700-06M03-00
Unavailable
41
BOLT, FLANGE
95817-06020-00
Unavailable
42
ARM, PIVOT 2
8AV-47332-01-00
Unavailable
43
SHAFT 2
89A-47475-01-00
Unavailable
44
COLLAR
8BN-47319-00-00
Unavailable
45
BOLT (8V0)
90109-10771-00
Unavailable
46
BRACKET 3
8U7-47417-00-00
Unavailable
47
COLLAR
90387-08632-00
Unavailable
48
WASHER (1T1)
90201-08649-00
Unavailable
49
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
50
NUT, SELF-LOCKING
90185-08169-00
Unavailable
51
COLLAR (8U7)
90387-083G6-00
Unavailable
52
BOLT, FLANGE
95827-08220-00
Unavailable
53
NUT, SELF-LOCKING
90185-08169-00
Unavailable
54
SHOCK ABSORBER
8BX-47480-00-00
Unavailable
55
BOLT(88R)
90101-10738-00
Unavailable
56
COLLAR (8U7)
90387-105G5-00
Unavailable
57
COLLAR (8U7)
90387-145G7-00
Unavailable
58
NUT, U
95617-10100-00
Unavailable
59
ROD, RELAY
8U7-47494-02-00
Unavailable
60
COLLAR
90387-1007P-00
Unavailable
61
COLLAR (8U7)
90387-143G7-00
Unavailable
62
COLLAR (8U7)
90387-144G2-00
Unavailable
63
WASHER PLATE 148272190000
90201-14215-00
Unavailable
64
BOLT
90101-10747-00
Unavailable
65
WASHER (853)
90201-08326-00
Unavailable
66
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
67
NUT, NYLON
95717-08300-00
Unavailable
68
SHAFT 4 (=89A4748601)
99999-02581-00
Unavailable
69
BOLT, FLANGE
95817-10030-00
$8.49
70
STOPPER 2
8AB-47496-00-00
Unavailable
71
WASHER, PLATE
90201-06747-00
$8.49
72
BOLT(3RV)
97014-06035-00
Unavailable
73
NUT, NYLON
95707-06300-00
$3.50
74
COLLAR 3
8K2-47479-01-00
Unavailable
75
NUT, NYLON
95707-10300-00
Unavailable
76
DAMPER 1
89A-47456-00-00
Unavailable
77
PLATE, DAMPER
8K2-47458-01-00
Unavailable
78
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
79
DAMPER 1
83R-47456-00-00
Unavailable
80
PLATE, DAMPER
8K2-47458-01-00
Unavailable
81
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
82
BRACKET
8V0-4741B-00-00
Unavailable
83
RIVET
8V0-47468-00-00
Unavailable
