Description

Price

1

SPEEDOMETER ASY

89A-83500-42-00

Unavailable

2

SPEEDOMETER ASSY

8CR-83580-40-00

Unavailable

3

TACHOMETER ASSY

89A-83540-42-00

Unavailable

4

COVER,METER

88R-83559-20-00

Unavailable

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

Unavailable

6

KNOB, TRIP METER

29L-83578-00-00

Unavailable

7

. SOCKET CORD ASSEMBLY

89A-83509-40-00

Unavailable

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

SCREW, TAPPING (10M)

90164-04009-00

$7.49

11

NUT(6TA)

95307-04600-00

$8.49

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

14

BULB (6V 3W)

4N0-83516-00-00

$3.22

15

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

16

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

17

TRIM 5

89A-77225-00-00

Unavailable

18

DAMPER 1

89A-77198-00-00

Unavailable

19

WASHER, PLATE

90201-06380-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

DAMPER

5J0-83513-00-00

Unavailable

22

SPEEDOMETER CABLE ASSY

89A-83550-00-00

Unavailable

23

METER GEAR HOUSING COMP

83R-47700-00-00

Unavailable

24

JOINT

8K4-47715-00-00

Unavailable

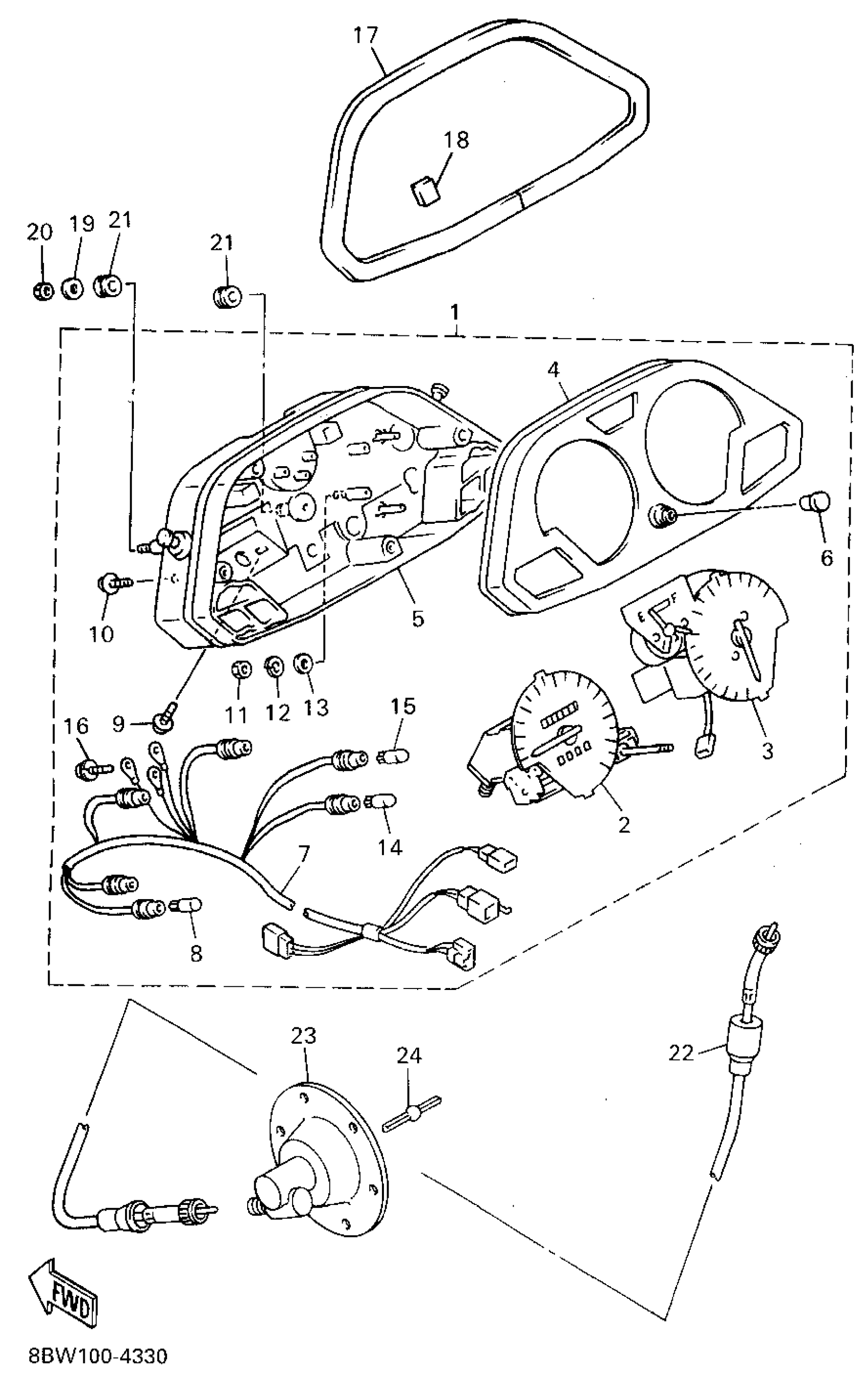

Yamaha VX750STU (VMAX-4 ST (LONG TRACK)) 1994 METER Diagram

SPEEDOMETER ASY

SPEEDOMETER ASSY

TACHOMETER ASSY

COVER,METER

. CASE, UNDER (8AS-8353H-20-00)

KNOB, TRIP METER

. SOCKET CORD ASSEMBLY

BULB, MTR.12V3.4W

SCREW, PAN HEAD

SCREW, TAPPING (10M)

NUT(6TA)

YBS67-4 WASHER, SPRING

YBS66-4 WASHER, PLAIN

BULB (6V 3W)

BULB (12V-1.7W)

SCREW, WITH WASHER(36Y)

TRIM 5

DAMPER 1

WASHER, PLATE

NUT, U FLANGE

DAMPER

SPEEDOMETER CABLE ASSY

METER GEAR HOUSING COMP

JOINT
