Description

Price

1

BUMPER, FRONT 1

89A-77511-00-00

Unavailable

2

STAY 4

8AX-77128-00-00

Unavailable

3

BUMPER, REAR 1

8BX-77541-00-00

Unavailable

4

SCREW,FLAT

98707-08025-00

Unavailable

5

NUT, FLANGE

95704-08500-00

$8.49

6

BUSH, RUBBER 2

89L-77516-00-00

Unavailable

7

SCREW, PAN

98507-06014-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

END, BUMPER

8N8-77523-00-00

Unavailable

11

FLAP

8V9-77595-00-00

Unavailable

12

RIVET, BLIND (8R6)

90267-48086-00

$4.14

13

PROTECTOR 1

82M-77551-00-00

Unavailable

14

RIVET (8M6)

90269-04025-00

$8.49

15

PROTECTOR 4

8AX-77554-00-00

Unavailable

16

EMBLEM, YAMAHA

99246-00140-00

Unavailable

17

END, BUMPER

8N8-77524-00-00

Unavailable

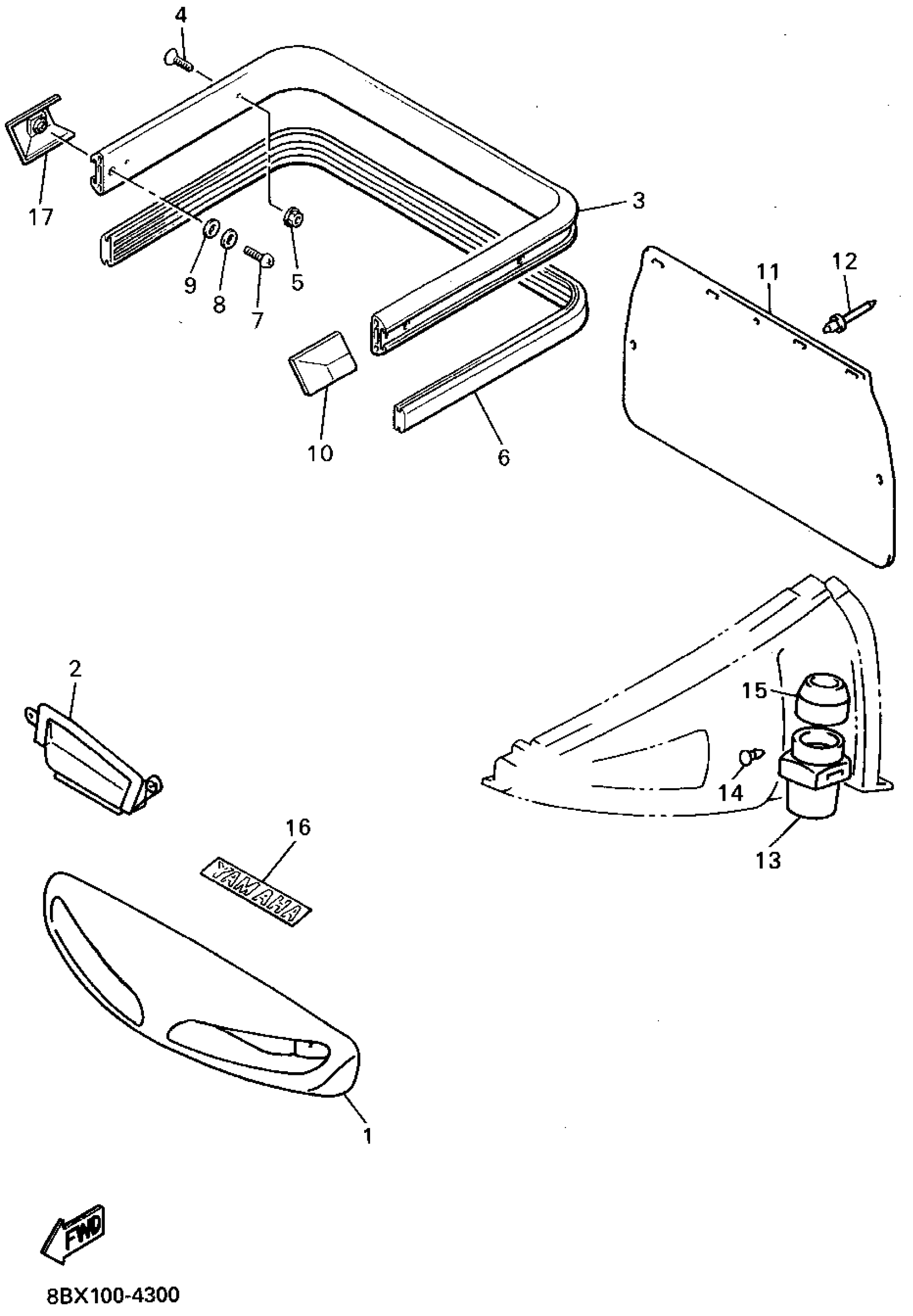

Yamaha VX750STU (VMAX-4 ST (LONG TRACK)) 1994 BUMPER Diagram

BUMPER, FRONT 1

STAY 4

BUMPER, REAR 1

SCREW,FLAT

NUT, FLANGE

BUSH, RUBBER 2

SCREW, PAN

WASHER, SPRING

WASHER, PLAIN (646)

END, BUMPER

FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4

EMBLEM, YAMAHA

END, BUMPER
