Description

Price

1

FAIRING

89A-77231-00-00

Unavailable

2

BOLT(6A1)

97095-05016-00

$1.11

3

NUT

89A-77144-00-00

Unavailable

4

SRAY, FAIRING

89A-77241-00-00

Unavailable

5

WASHER, PLATE (3Y6)

90201-083A6-00

$2.65

6

NUT(6L2)

95333-08600-00

$2.49

7

SCREW, BINDING (10V)

90154-05013-00

$5.60

8

SCREW, BINDING(2EK)

90154-05042-00

$8.49

9

SCREW, ROUND HEAD(88R)

90150-05028-00

$4.29

10

WASHER, PLATE (7N7)

90201-052E8-00

$4.72

11

WASHER, PLATE

90201-06747-00

$8.49

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

PLATE, BACK UP 1

89A-77153-00-00

Unavailable

14

PLATE, BACK UP 2

89A-77154-00-00

Unavailable

15

SCREW, BINDING (10V)

90154-05013-00

$5.60

16

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

Unavailable

17

TRIM,UPPER

87K-77213-00-00

Unavailable

18

COVER, HEADLIGHT

89A-77251-00-00

Unavailable

19

BRACKET, METER

89A-83519-00-00

Unavailable

20

LINING, SHROUD

8AB-77268-00-00

Unavailable

21

SHIELD, NOISE 2

89A-2199J-00-00

Unavailable

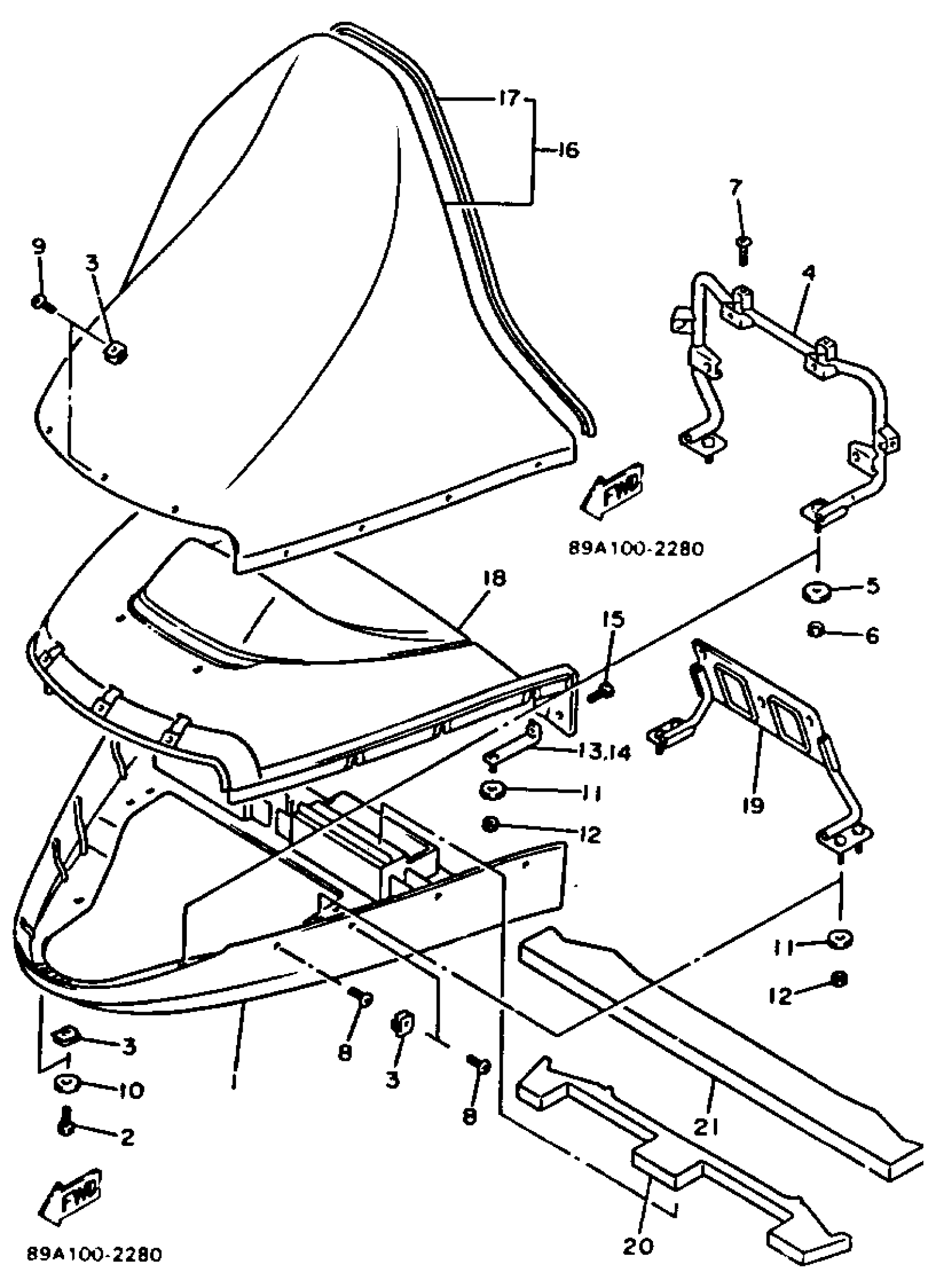

Yamaha VX750S (VMAX-4) 1992 WINDSHIELD Diagram

FAIRING

BOLT(6A1)

NUT

SRAY, FAIRING

WASHER, PLATE (3Y6)

NUT(6L2)

SCREW, BINDING (10V)

SCREW, BINDING(2EK)

SCREW, ROUND HEAD(88R)

WASHER, PLATE (7N7)

WASHER, PLATE

NUT, HEXAGON

PLATE, BACK UP 1

PLATE, BACK UP 2

SCREW, BINDING (10V)

WINDSHIELD COMP. (89A-77210-00-00)

TRIM,UPPER

COVER, HEADLIGHT

BRACKET, METER

LINING, SHROUD

SHIELD, NOISE 2
